TA100/200 User Manual
10/52
Basic Operations
In this chapter, we give instructions about how to operate on analog phones
connected to TA100/200 to use some features.
Voice Menu
Call Hold
Call Waiting
Call Transfer
Three-party Conference
Direct IP Call
Change TA100/200’s IP Address
Voice Menu
TA100/200 provides a voice menu to guide you to configure the network settings for
the device. You need to press *** on the analog phone which is connected to
TA100/200’s FXS port to enter the voice menu.
The default password to enter “Advanced Settings” is 123456. You can change the
password on TA100/200 Web page.(Gateway→Gateway Settings→Feature
Codes→Voice Menu Password Settings)

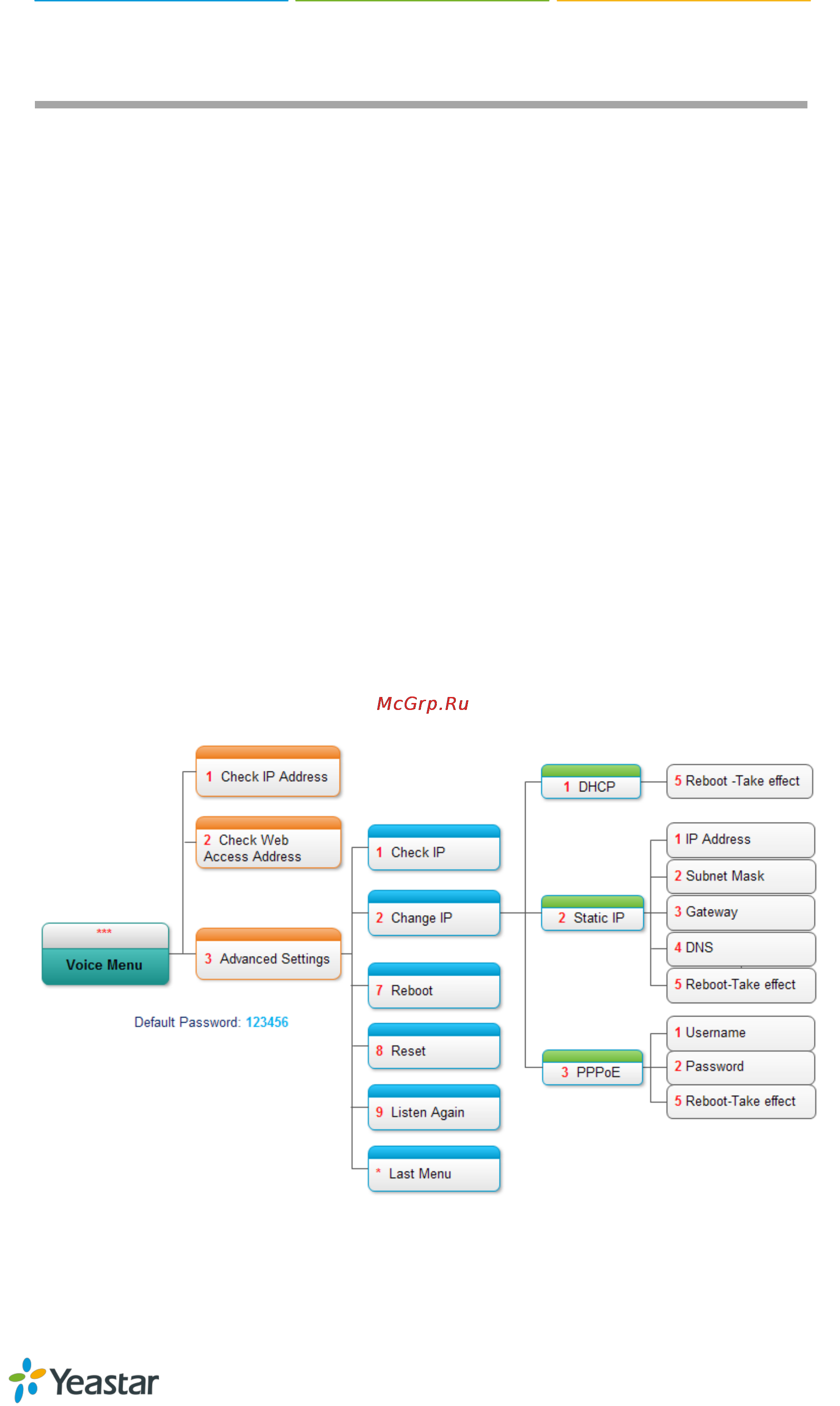

Figure 4-1 TA100/200 Voice Menu
