TA100/200 User Manual
52/52
Packet Tool
This feature is used to capture packets for technician. Integrate packet capture tool
“Wireshark” in TA100/200.
Users also could specify the destination IP address and port to get the packets.

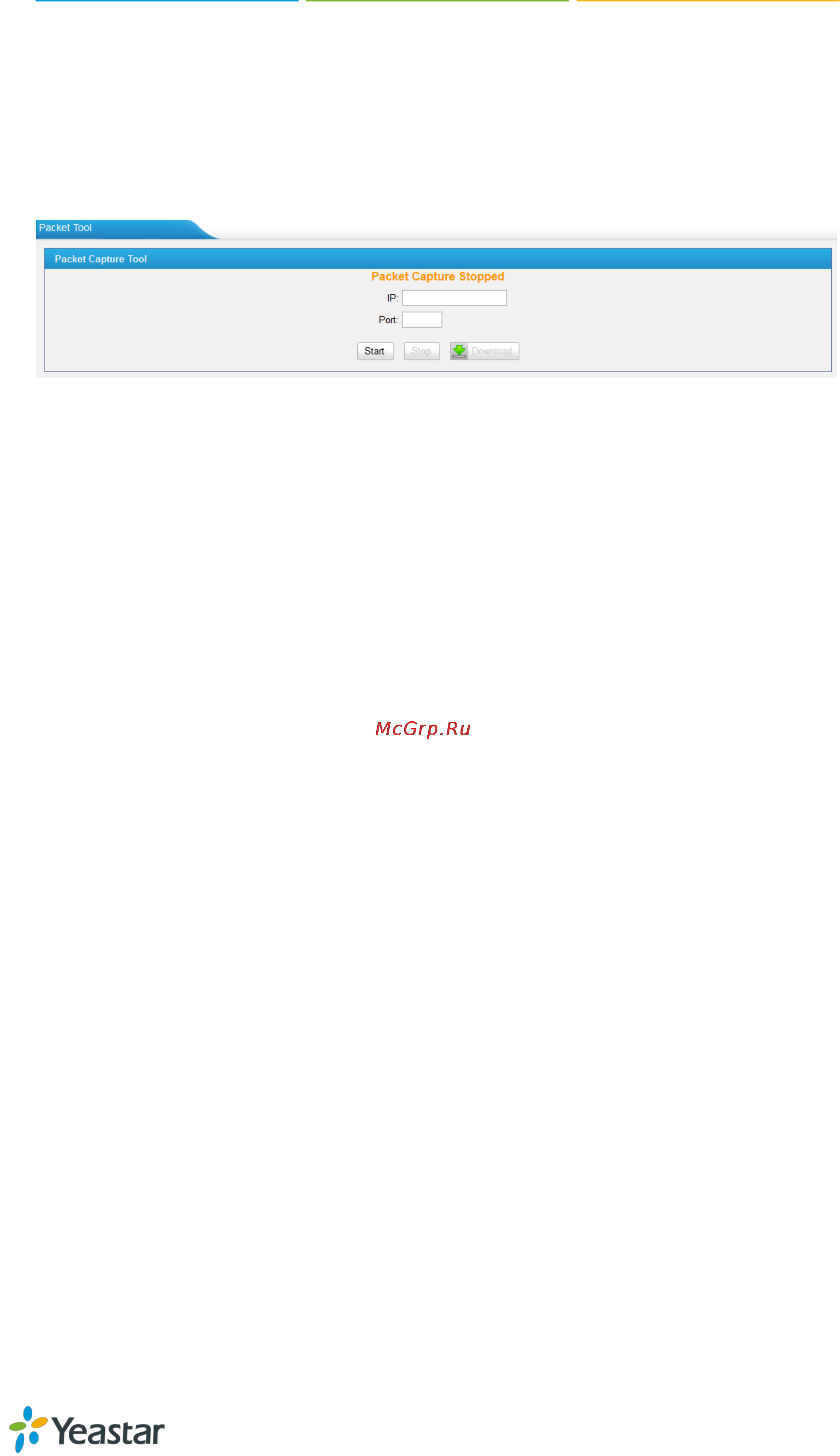

Figure 11-6Packet Tool
IP
Specify the destination IP address to get the packets.
Port
Specify the destination Port to get the packets.
