NeoGate TG Series User Manual

54/62

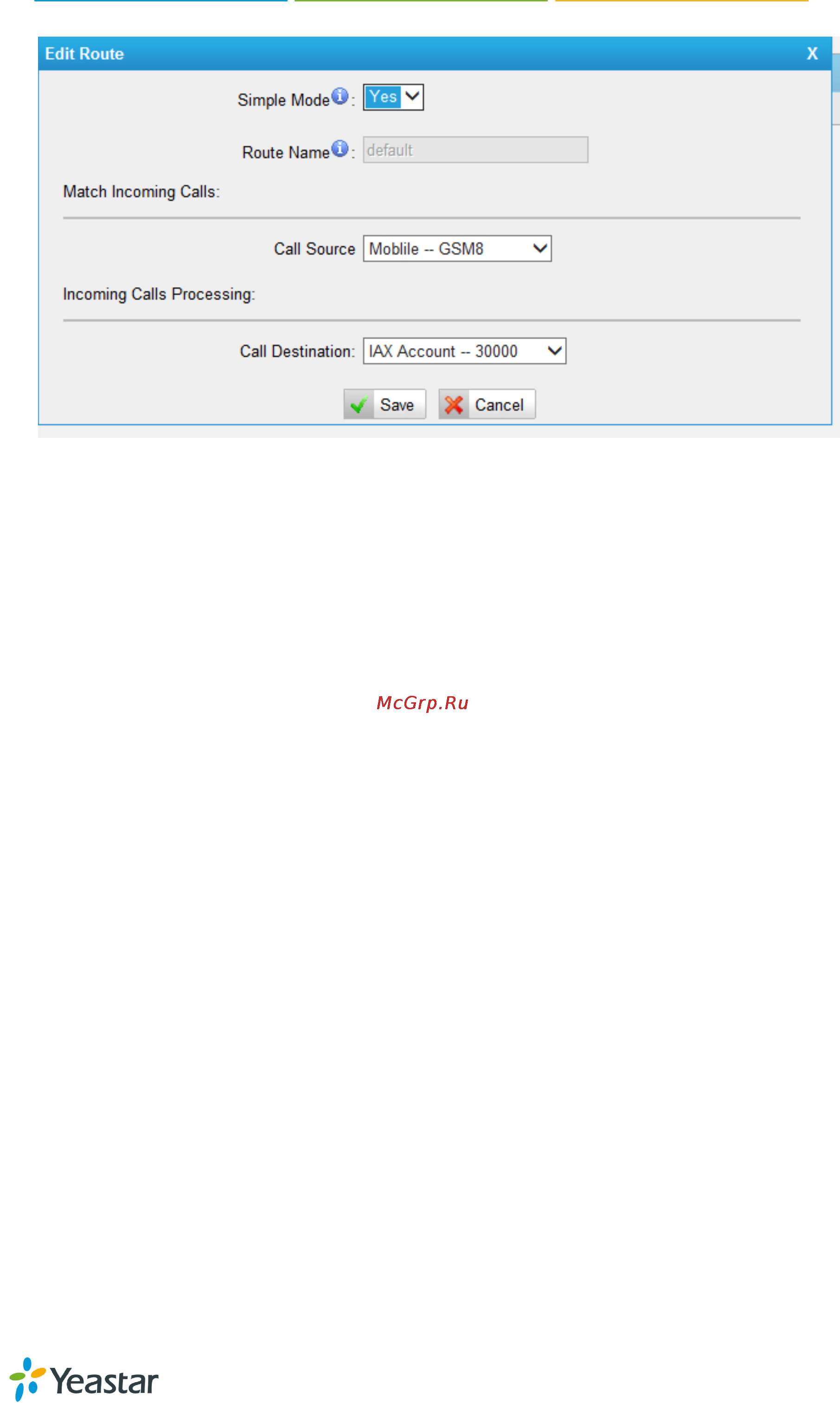

Figure 7-29

This is the simple mode. What we need to do is just choose the incoming source

trunk and the destination trunk you want to route the call to, NeoGate will allow

all incoming calls and route it to the destination trunk without any modification.
