NeoGate TG Series Installation Guide

13/16

4. NeoGate TG Series Basic Configurations

4.1 Factory Defaults

NeoGate TG Series provides web-based configuration interface for administrator and account

user. The user can manage the device by logging in the Web interface.

The factory default IP address:

LAN: 192.168.5.150;

Access path: http://[IP address]

User Name: admin;

Password: password

Default SIP UDP port: 5060

4.2 Logging in the Web Configuration Panel

Firstly, please check if the IP address that assigned to the network port (LAN) is in the same

segment with the PC and which can be connected when commit “Ping + NeoGate IP address”

command. Start the browser on PC. In the address bar, enter the IP address, click “Enter” button

and then you can see NeoGate Web Configuration Panel login page (See Figure 4-1).

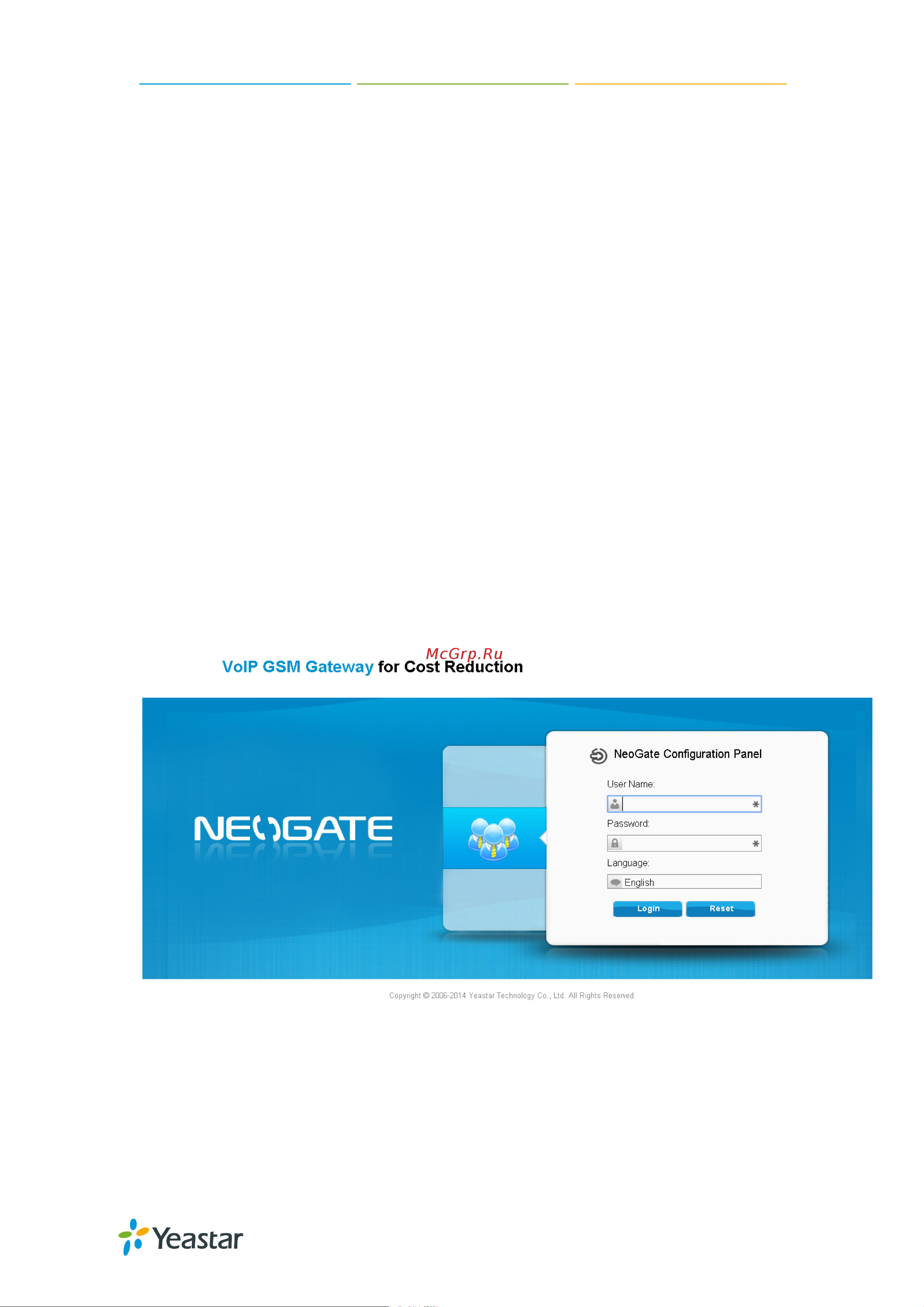

Figure 4-1 NeoGate Web Configuration Panel Login Page

Enter the Admin User Name and Password to log in.
