Parts

12 309834T

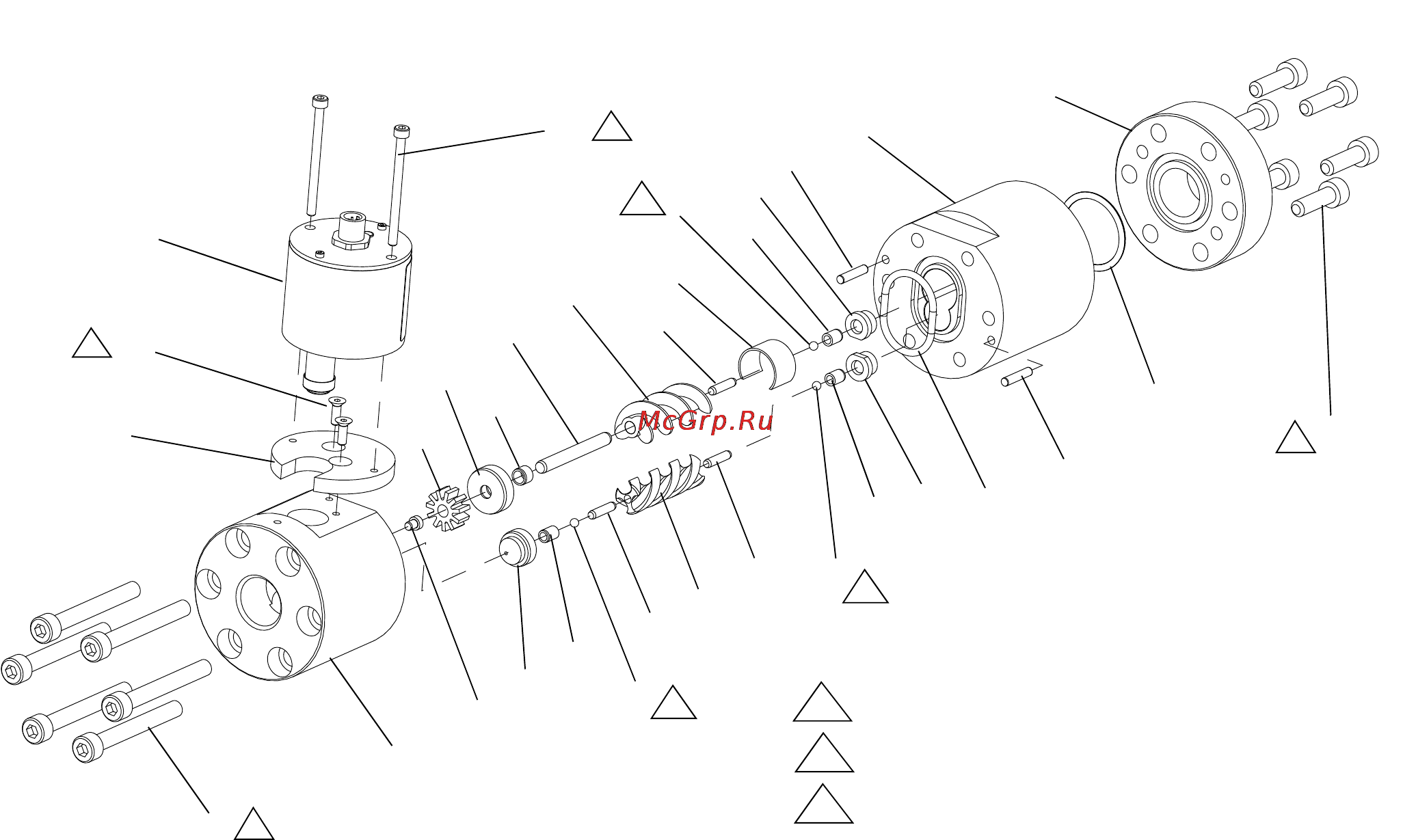

Model 280560, HG6000 Meter

* Included in Gear Replacement Kit 246596.

† Included in Bearing Replacement Kit 253215.

 Not shown.

Torque to 350 +/- 15 in-lb (39.5 +/- 1.7 N•m)

Torque to 42 +/- 15 in-lb (4.75 +/- 1.7 N•m)

After ball (6) is placed into bearings,

apply grease (31) into bearing area.

r_246190_309834_3r

Ref. Part Description Qty.

1 HOUSING, end

2 117535 SCREW, cap, socket head

3 GUIDE, gear

4† INSERT, bearing

5† 246594 BEARING, gear (includes 4)

6† 101680 BALL, bearing

7* 234052 GEAR, sub-assembly; 2-tooth

(includes 7a-7f)

7a GEAR

7b ROD, gear

7c GEAR, spur

7d GUIDE, rod

7e ROD, gear

7f BEARING

8* 234053 GEAR, sub-assembly; 3-tooth

(includes 7e)

13* SPACER, shaft, gear

15† INSERT, bearing

16*† 117541 SEAL

17† PIN, dowel, 0.75 in.

18† HOUSING, middle

19 CAP, end

20 117536 SCREW, cap, socket head

21 239717 SENSOR

22 15B413 PAD, sensor

23 114100 SCREW, cap, socket head

24 106371 SCREW, mach, hex flat head

31†



LUBRICANT, grease

Ref. Part Description Qty.
