Instructions

3A0525F 3

4. Apply thread sealant (user supplied) to threads (b)

of one of the 90° tube elbow fittings (5).

5. Install 90° elbow fitting (5) in open port.

6. Wrench tighten then torque to 50 in. lbs (5.6 N•m).

7. Apply thread sealant (user supplied) to threads (b)

of pressure relief valve (6) (F

IG. 4).

8. Install pressure relief valve (6) into banjo fitting (2).

Wrench tighten (F

IG. 4).

9. Install one washer (1) over end banjo bolt (3). Then

install banjo fitting (2) onto banjo bolt (3). Install sec-

ond washer (1) over end of banjo bolt. (F

IG. 4).

10. Apply thread sealant (user supplied) to threads (b)

of second 90° tube elbow fitting (5). Install fitting in

pressure relief valve. Wrench tighten.

11. Install banjo bolt (3) into pump element (d) (F

IG. 5).

NOTE: Relieve valve orientation may vary depending on

your specific installation.

12. Use two wrenches to tighten the banjo fitting (3).

Place one wrench on the pump element (d) and the

second wrench over the end of the banjo bolt (3).

ONLY tighten the banjo bolt (3) while holding the

pump element (d) securely in place. Torque banjo

bolt (3) to 35 ft. lbs (45.7 N•m). Take care to not

over-tighten (F

IG. 6).

13. Cut supply tube (4) to desired length.

NOTE: Tube length must be long enough to prevent

tube from kinking.

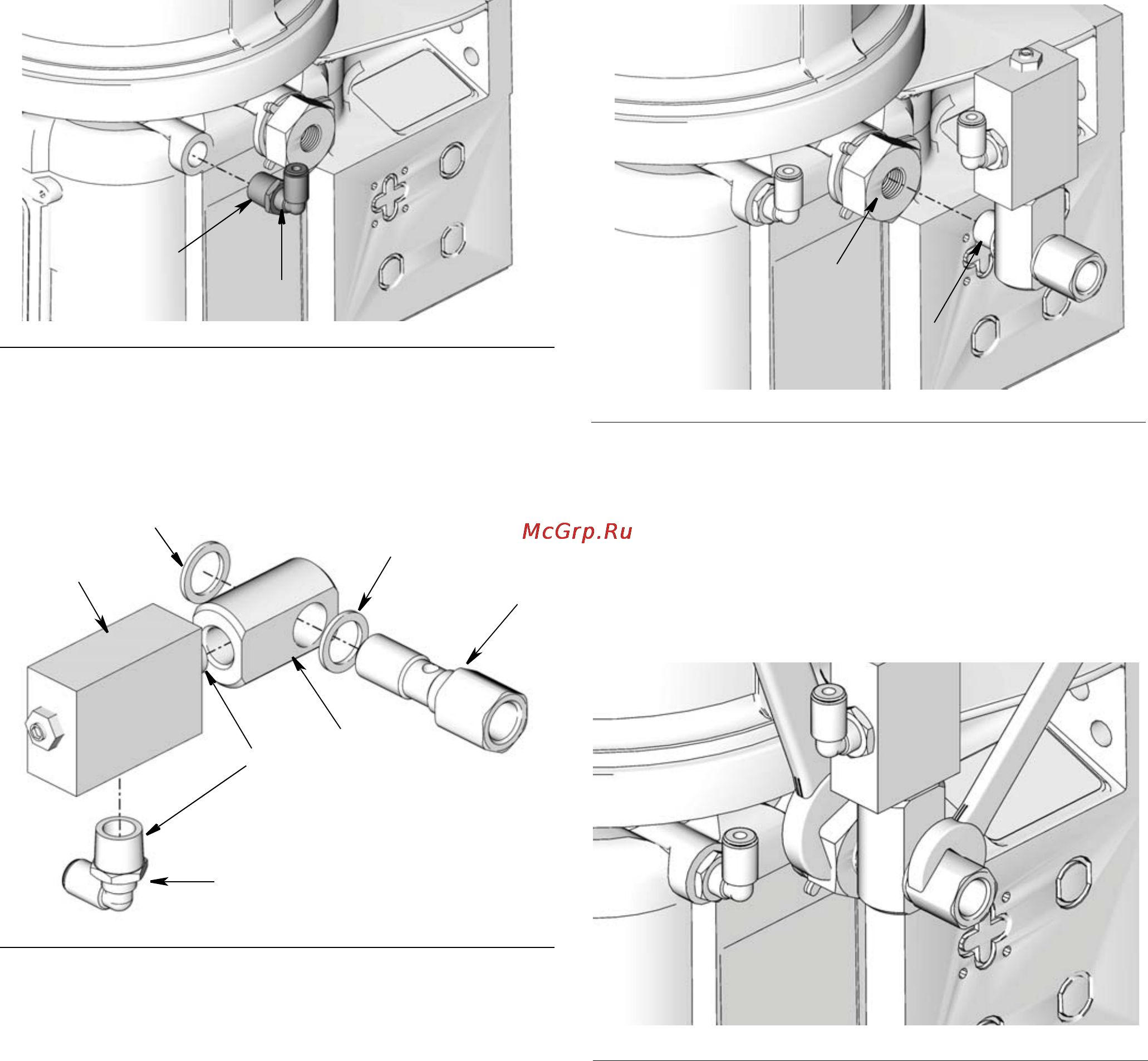

FIG. 3

FIG. 4

ti15469

ti15470

FIG. 5

IG. 6

ti15471

ti15499
