GL-1 Series Injectors –
Heavy-Duty Performance
©2016 Graco Inc. 352429 Rev. E 09/16 All other brand names or marks
are used for identification purposes and are trademarks of their respective
owners. All written and visual data contained in this document are based
on the latest product information available at the time of publication. Graco
reserves the right to make changes at any time without notice.
Contact us today!
Call 800-533-9655 to speak with a Graco representative,
or visit www.graco.com for more information.

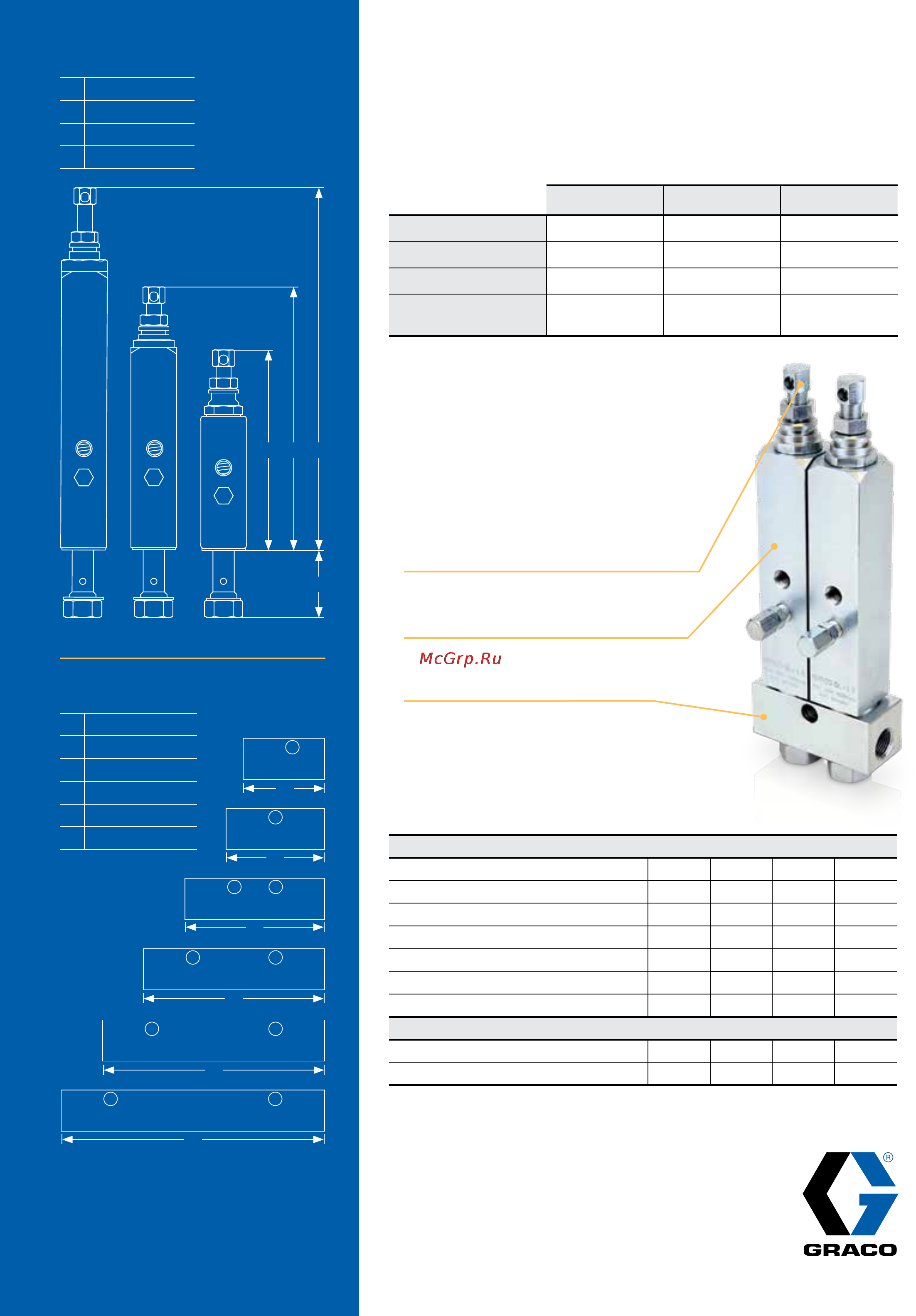

Technical Specifications
GL-1 / GL-1 HCP GL-1 X GL-1 XL
Maximum operating pressure 3,500 psi (241 bar) 6,000 psi (414 bar) 6,000 psi (414 bar)
Minimum operating pressure 1,850 psi (128 bar) 1,850 psi (128 bar) 1,850 psi (128 bar)
Reset pressure 600 psi (41 bar) 1,000 psi (69 bar) 1,000 psi (69 bar)
Output volume per cycle
0.008–0.08 in
3
(0.13–1.31 c
3
)
0.015–0.08 in
3
(0.25–1.31 c
3
)
0.035–0.305 in
3
(0.57–5.0 c
3
)
GL-1 Manifold
6,000 psi, 3/8” NPT port manifolds fit pre-existing
mounting patterns.
Unibody Design
Rugged, single-piece body for use in harsh environments.
Hex-Head Adjustment Nut
Heavy-duty hex-head nut makes output adjustments simple.
Graco quality provides consistent
performance in rugged environments.
• More operating pressure to the grease point than competition
• No vent holes to leak lubricants
• Fully-enclosed press fittings
GL-1 Manifold Dimensions
A 2.5 in (63.5 mm)
B 3.0 in (76.2 mm)
C 4.2 in (106.7 mm)
D 5.5 in (139.7 mm)
E 6.7 in (170.2 mm)
F 8.0 in (203.2 mm)
A
1-PT
B
2-PT
C
3-PT
D
4-PT
E
5-PT
F
6-PT
GL-1 XL GL-1 X
GL-1 /
GL-1 HCP
A B C
D
GL-1 Injector Dimensions
A 5.3 in (134.6 mm)
B 6.9 in (175.3 mm)
C 9.5 in (241.3 mm)
D 1.7 in (43.2 mm)
Ordering Information
GL-1
GL-1
HCP
GL-1 X GL-1 XL
Injectors and Manifold Assemblies
One-point assembly 114901 24X401 24X801 24X811
Two-point assembly 114902 24X402 24X802 24X812
Three-point assembly 114903 24X403 24X803 24X813
Four-point assembly 114904
24X404
24X804 24X814
Five-point assembly 114905 24X405 24X805 24X815
Six-point assembly 117206 24X406 24X806 24X816
Single replacement injector, no manifold 114909
24X153
24X807 24X817
Injector Accessories
Injector cover kit, plastisol 17L754 17L754 17L754* 17L755*
Injector crossport kit 115120 – 115120 115120
*Included with every GL-1 X and GL-1 XL injector.
