Graco Viscount I 1000 Pump [15/16] Dimensions
![Graco Viscount I 1000 Pump [15/16] Dimensions](/views2/1193521/page15/bgf.png)
307622J 15

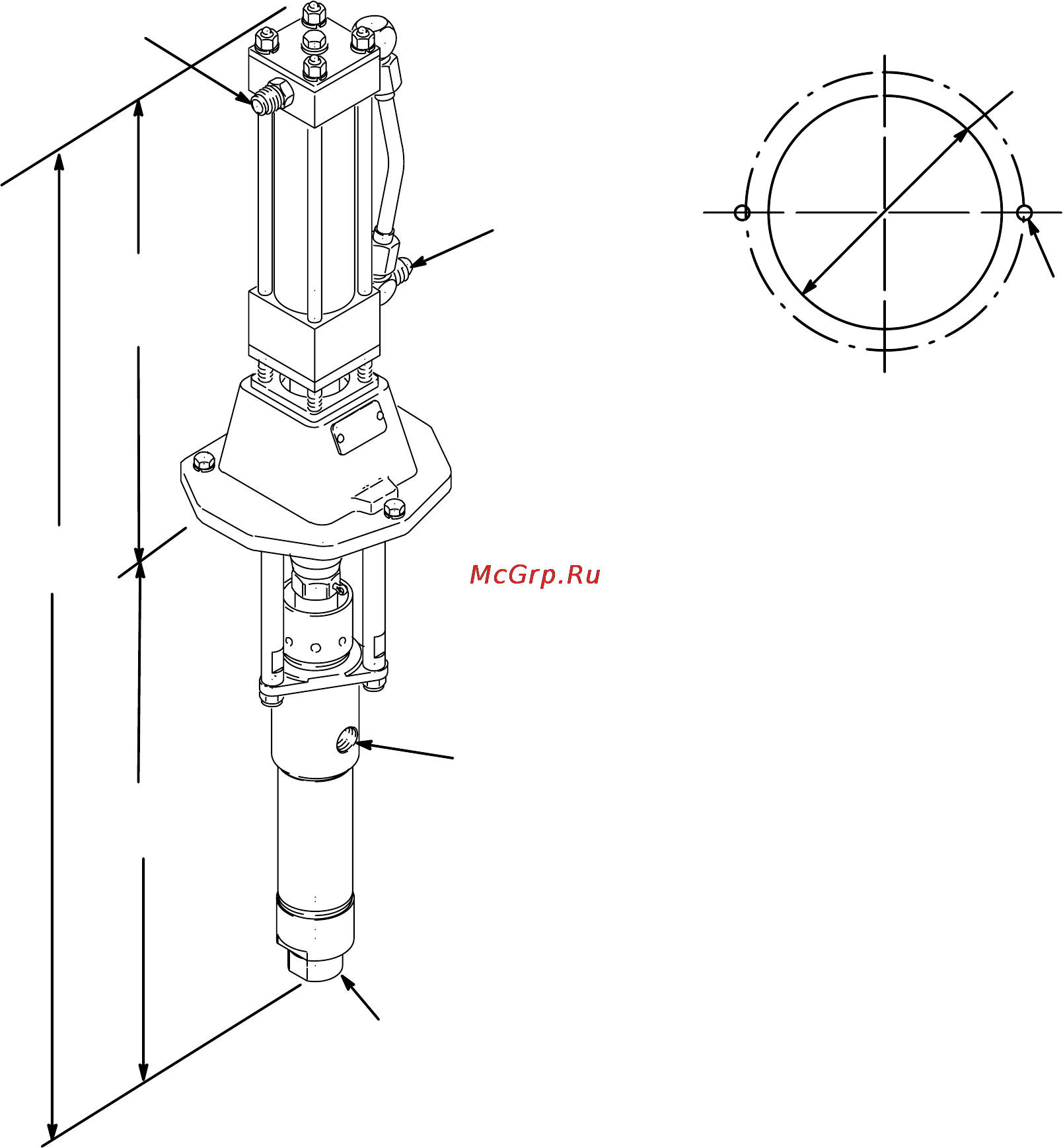

Dimensions
28.4 in.
(721 mm)
14.7 in.
(373 mm)
13.7 in.
(348 mm)
1/2 NPT
FLUID OUTLET
7/8–14 unf–2a
37_ flared(m)
OUTLET ADAPTER
3/4 NPT
FLUID INLET
03833
3/4–16 unf–2a
37_ flared(m)
INLET ADAPTER
Mounting Hole
Layout
4–1/4” (108 mm)
DIA. CUTOUT
Two 5/16” (8 mm) holes on
5” (127mm) dia. bolt circle;
base has 1/2–20 tapped holes
