Graco Viscount I 1000 Pump [6/16] Installation
![Graco Viscount I 1000 Pump [6/16] Installation](/views2/1193521/page6/bg6.png)
6 307622J
Installation

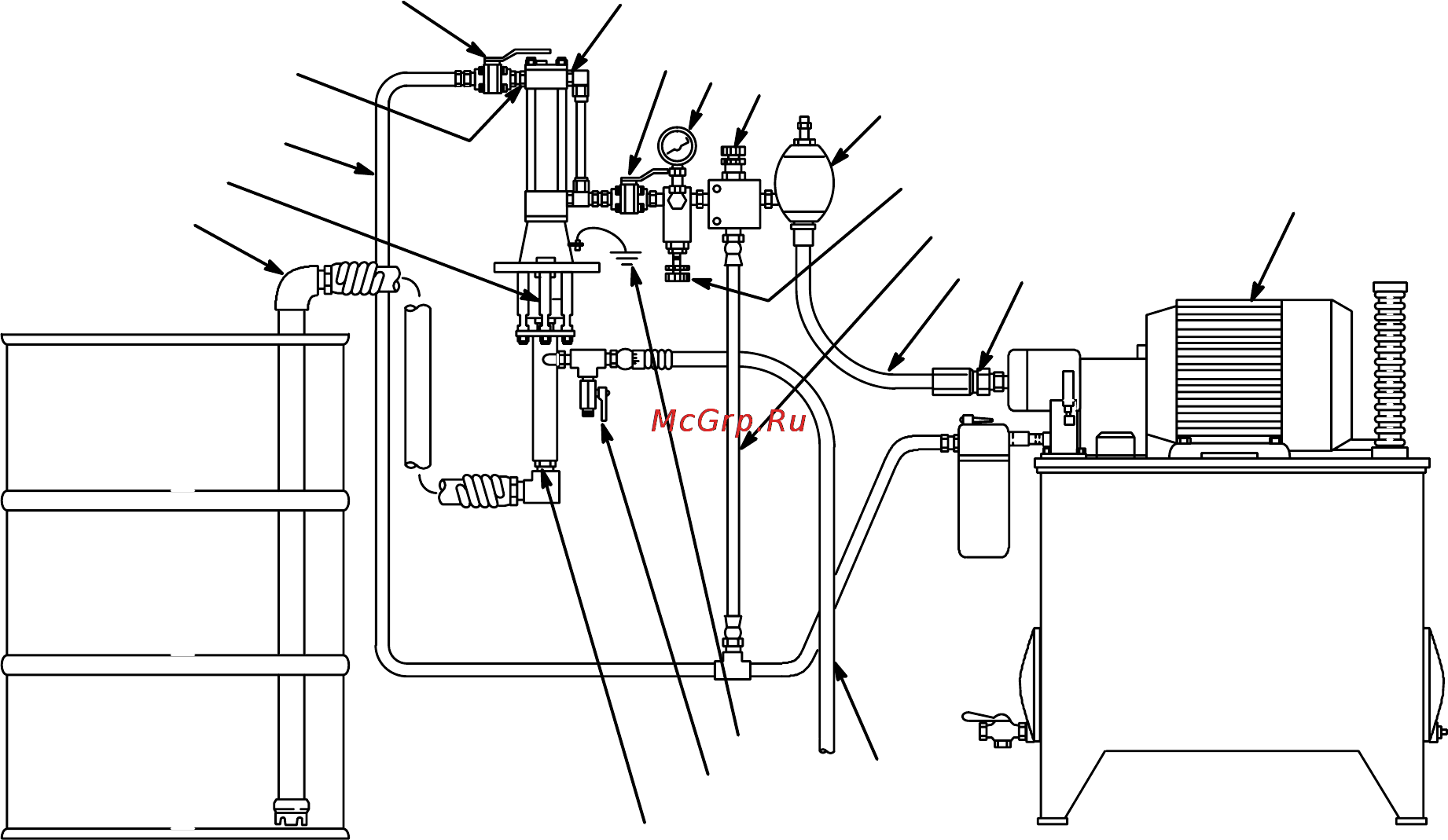

Typical Installation
C
P
D
R
E
F
H
J
L
G
Q
M
A
N
B
3/4 npt(f)
fluid intake
K
hydraulic inlet
3/4–16 UNF–2a
37_ (m) flare
hydraulic outlet
7/8-14 UNF-2a
37_ (m) flare
KEY
A Fluid Hose to Gun
B Fluid Drain Valve
C Suction Hose
D Hydraulic Return Line
E Hydraulic Supply Line Shutoff
Valve
F Pressure Gauge
G Flow Control Valve
H Pressure Reducing Valve
J Accumulator
K Drain Line
L Hydraulic Supply Line
M Hydraulic Power Supply
N Ground Wire
P Wet cup
Q Check Valve
R Hydraulic Return Line Shutoff
Valve
03815
