Models and Approvals
334513D 7
Drive Module Configuration Code
Sample Configuration Number: CI-12S-57-0
NOTE: Effective Date Code “X 2516” (see F
IG. 1), if your configuration does not match this format, you have an older
pump assembly configuration. See manual 334513, rev C.
NOTE: Not all combinations are possible.

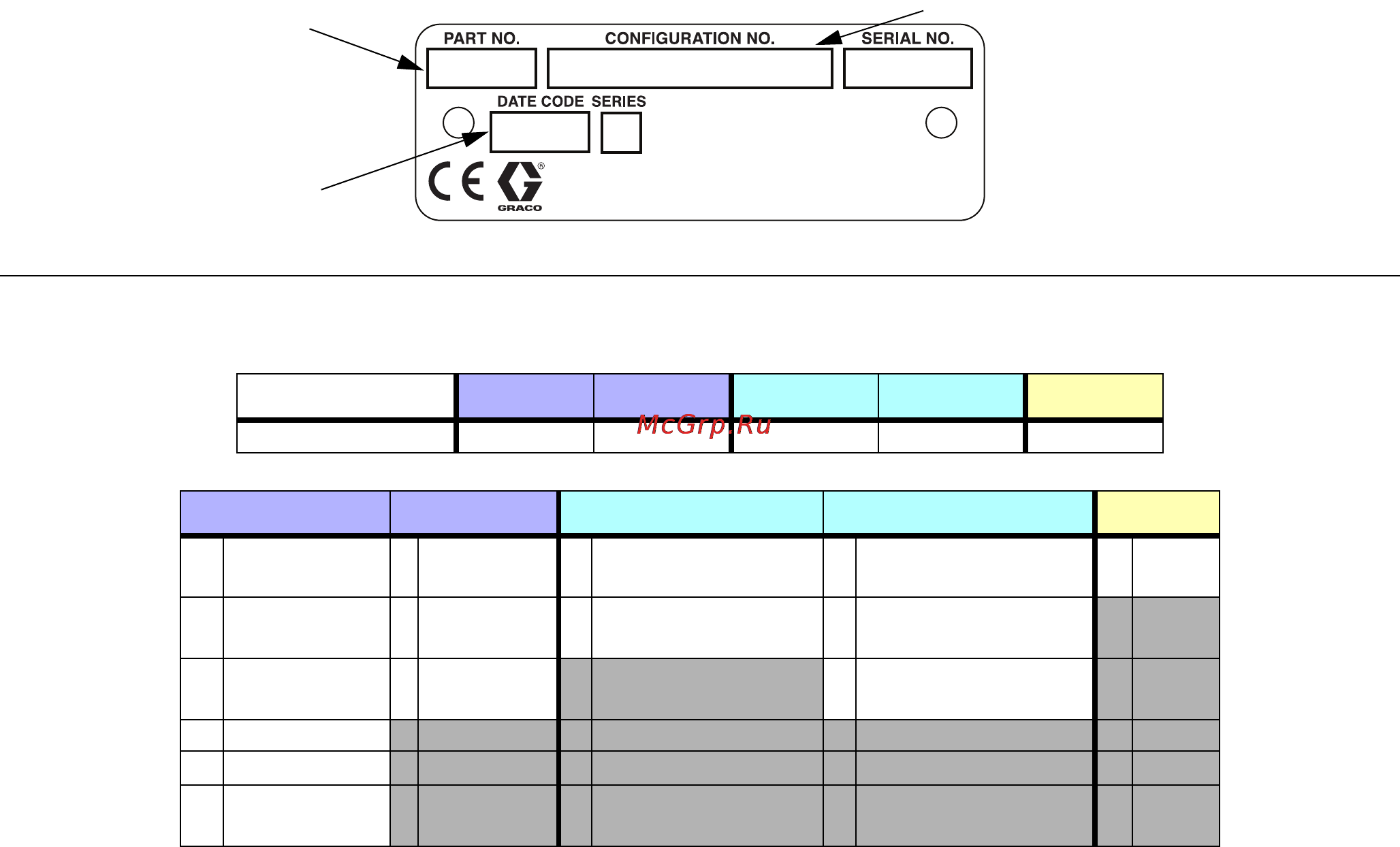

FIG. 2 Example of the Drive Module Identification Plate
A30002 ########
A# ####
Graco Inc., P.O. Box 1441
Mpls, MN 55440 USA
CI-12S-57-0
Model Number
Configuration Number
Date Code
CI 12 S 5 7 0
Chemical Injection Voltage Motor Drive Side 1 Drive Side 2 Qualifier
Voltage Motor Drive Side 1 Drive Side 2 Qualifier
12 12 VDC S Small 5 Fluid Section Sizes
25 : 38 : 50
0 None
(Simplex)
0 None
24 24 VDC L Large 7 Fluid Section Sizes
19 : 63 : 75
5 Fluid Section Sizes
25 : 38 : 50
1A 115 VAC H Hazardous
Location
7 Fluid Section Sizes
19 : 63 : 75
2A 230 VAC
3A 115/230 VAC
4A 230/460 VAC,
3 Phase
