Remote DataTrak Setup
The remote DataTrak display unit comes fully assem
bled. Use the following instructions and figure to con
nect remote DataTrak to the supply system.
The system requires either 100-240 Vac, 50/60 Hz
input, or 24 Vdc to the power supply. Ensure that the
main disconnect rocker switch is set to OFF (O). Con
nect power to the DataTrak unit as detailed in Connect
Remote DataTrak Units to Power, page 16.
1. Feed CAN cable (HB) and D-Sub cable (HA) under
the remote DataTrak bracket and attach to corre
sponding connectors on remote DataTrak display.
2. Snap remote DataTrak unit to mount on ram supply
system.
3. Drum Low/Empty Sensor: If system has this fea
ture, attach sensor cable to the corresponding con
nector on the D-Sub harness. See Drum
Low/Empty Sensor, page 15.
4. Light Tower: If system has this feature, attach the
connector on the light tower cable to the corre
sponding connector on the D-Sub harness. See
manual 312493.
5. Solenoid: Attach the connector on the D-Sub har
ness to the corresponding connector on the sole
noid (X).
The CAN cable (HB) can connect to either of the
two CAN style connectors on the remote DataTrak.
F
IG

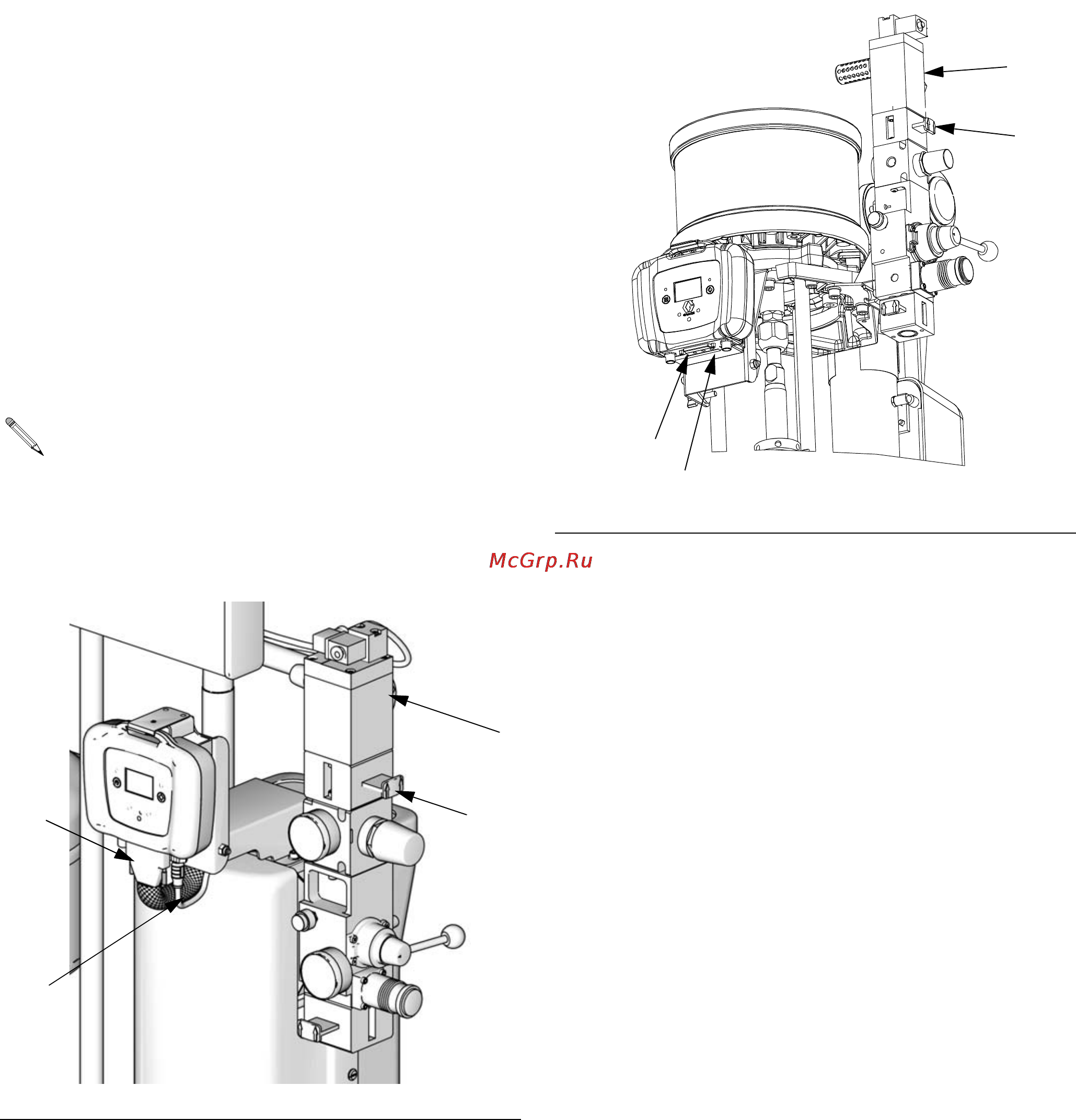

. 14: D200, D200s, and D60 supply systems
X
HA
HB
BF
ti10431a
F
IG
. 15: S20 supply systems
X
HA
HB connector
BF
connector
r_cm9hlb_313526_6a
