Graco 15:1 President [20/24] Model 215930 series e ptfe packed displacement pump
![Graco 15:1 President [20/24] Model 215930 series e ptfe packed displacement pump](/views2/1193925/page20/bg14.png)
20
306936

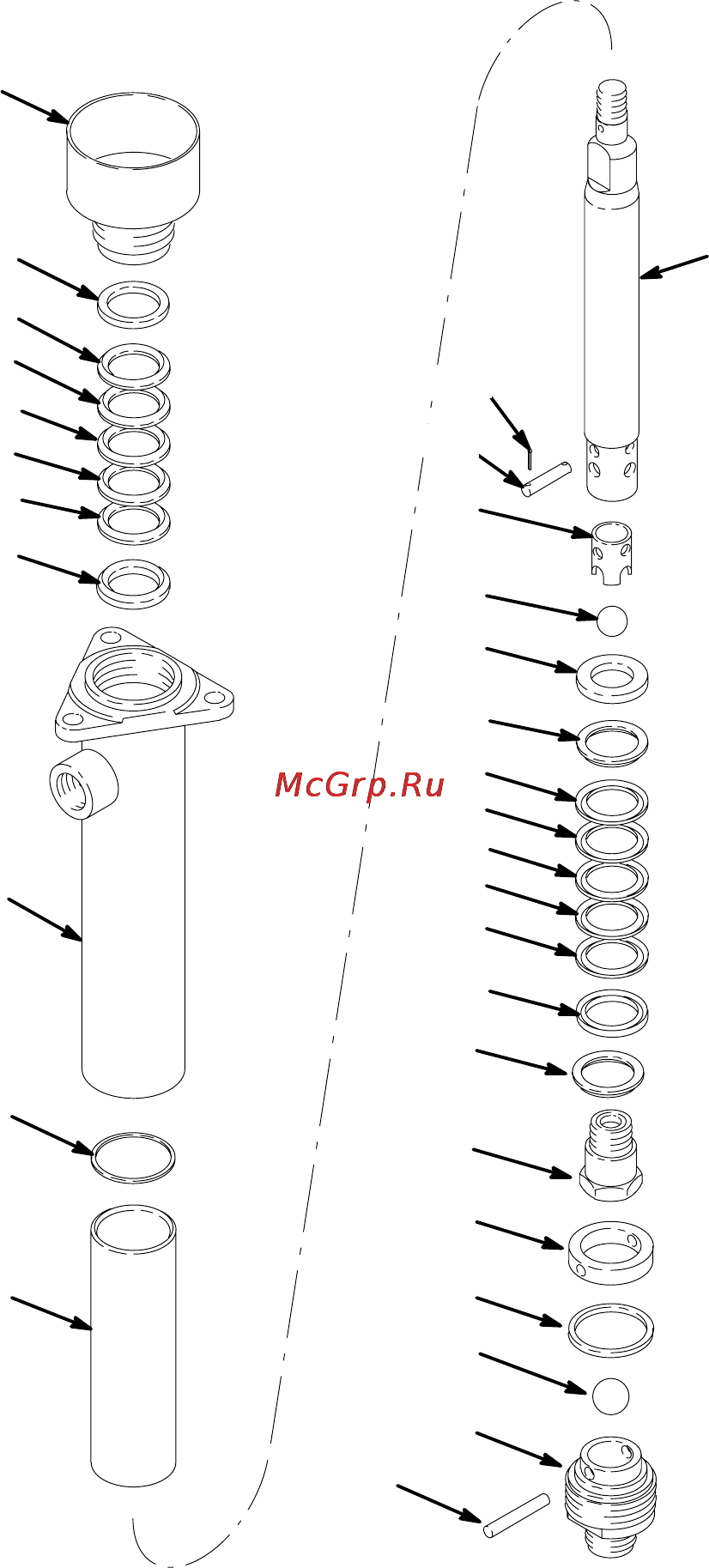

Parts
Model 215930, Series E
PTFE Packed Displacement Pump
4
*32
3
*17
18
*14
*14
*31
*14
*14
*14
*8
21
*14
*31
*14
*14
*14
*14
*32
n5
12
n10
*9
6
24
n7
n20
11
19
02117B
*29
Ref Part
No. No. Description Qty.
3 207354 HOUSING, outlet; carbon steel 1
4 207355 PACKING NUT/WET-CUP;
carbon steel 1
5n 207356 BODY, piston; carbon steel with
tungsten carbide seat 1
6 207357 BODY, intake valve; carbon steel
with tungsten carbide seat 1
7 100063 PIN, cotter;
1/16 in. (3.2 mm) x 1 in. (25 mm) 2
8* 101822 BALL; stainless steel;
5/8 in. (16 mm) dia. 1
9* 101859 BALL; stainless steel;
3/4 in. (19 mm) dia. 1
10n 165053 O-RING; PTFE 1
11 167662 PIN, ball stop; carbon steel 1
12 167663 RETAINER, o-ring; carbon steel 1
14* 167665 V–PACKING; PTFE 9
17* 167668 GASKET, flat; PTFE 1
18 178896 SLEEVE, cylinder; stainless steel 1
19 178895 ROD, displacement; stainless steel1
20n 167671 PIN, ball stop; carbon steel 1
21 167672 RETAINER, packing; carbon steel 1
23Y 172479 TAG, warning (not shown) 1
24 183022 GUIDE, ball 1
29* 187831 SHIM 0–6
31* 183644 GLAND, male 2
32* 183645 GLAND, female 2
Y Replacement Danger and Warning labels, tags and
cards are available at no cost.
* These parts are included in Repair Kit 218559,
which may be purchased separately.
n Keep these spare parts on hand to reduce down
time.
