Graco 15:1 President [22/24] Performance data

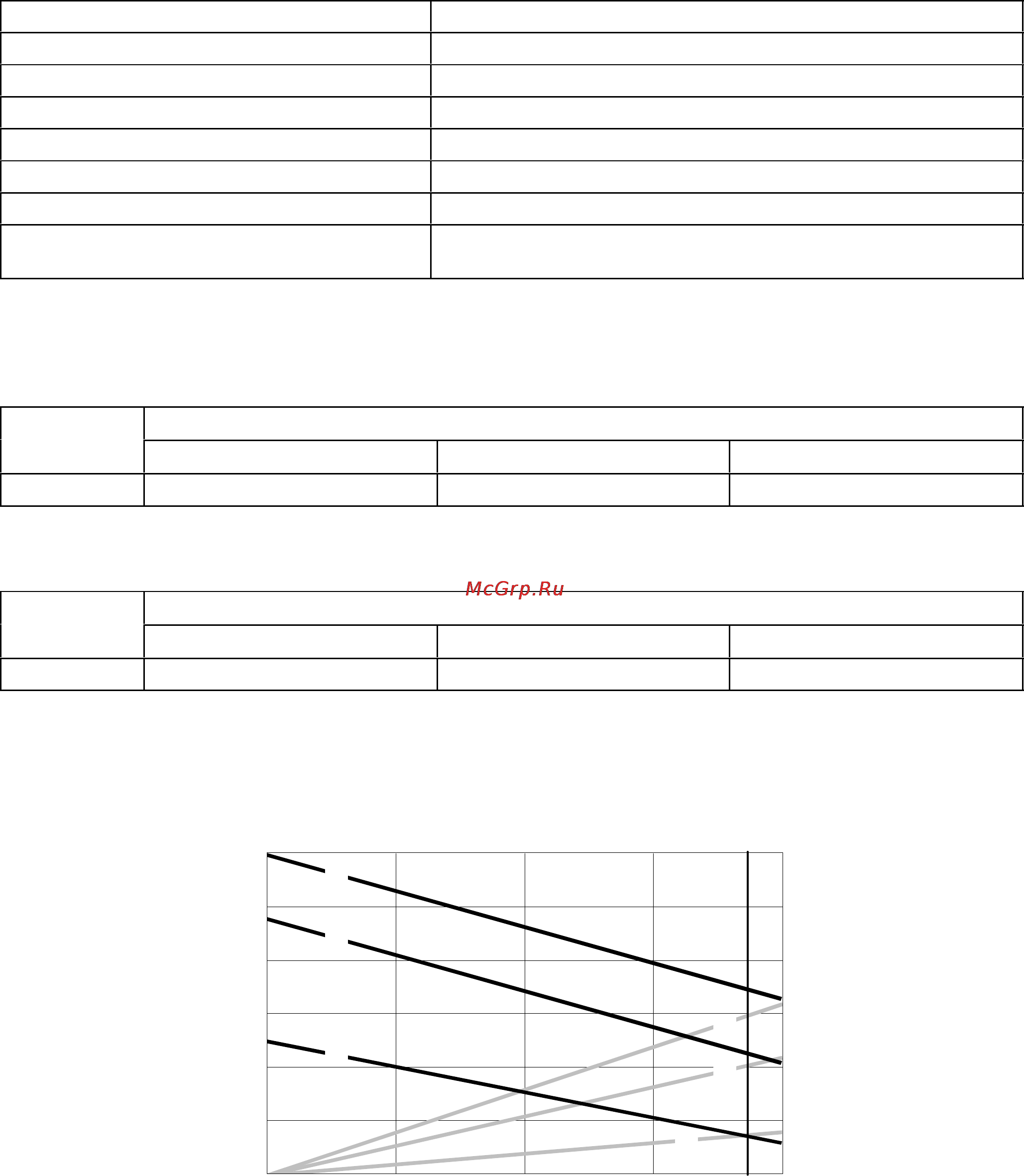

![Graco 15:1 President [22/24] Performance data](/views2/1193925/page22/bg16.png)
22
306936
Technical Data
Category Data
Ratio 15:1
Maximum fluid working pressure 1800 psi (12 MPa, 124 bar)
Maximum air input pressure 120 psi (0.8 MPa, 8.4 bar)
Pump cycles per 1 gallon (3.8 liters) 35
Fluid flow at 60 cycles per minute 1.8 gpm (6.8 liters per minute)
Weight 31 lb (14 kg)
Wetted parts Carbon Steel, 304, 440, and 17–4 PH Grades of Stainless Steel,
Chrome Plating, Tungsten Carbide, PTFE, Leather
Sound Pressure Levels (dBa)
(measured at 1 meter from unit)
Input Air Pressures at 15 cycles per minute
Air Motor 40 psi (0.28 MPa, 2.8 bar) 70 psi (0.48 MPa, 4.8 bar) 100 psi (0.7 MPa, 7 bar)
President 73.6 dB(A) 78.3 dB(A) 80.9 dB(A)
Sound Power Levels (dBa)
(tested in accordance with ISO 9614–2)
Input Air Pressures at 15 cycles per minute
Air Motor 40 psi (0.28 MPa, 2.8 bar) 70 psi (0.48 MPa, 4.8 bar) 100 psi (0.7 MPa, 7 bar)
President 87.4 dB(A) 92.1 dB(A) 94.6 dB(A)
0
250
500
750
1000
1250
1500
0.0 0.5 1.0 1.5 2.0
18 35 51 6660
scfm
m#/min
psi
MPa, bar
cycles per minute
gpm
liters/minute
1.9 3.8 5.7 7.6
7, 70
3.4, 34
1.7, 17
5.1, 51
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
FLUID PRESSURE
A
B
C
A
C
B
8.7, 87
10.4, 104
10
20
30
40
50
1.40
1.12
0.84
0.56
0.28
To find Fluid Outlet Pressure (psi/MPa/bar) at a specific fluid flow
(lpm/gpm) and operating air pressure (psi/MPa/bar):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale to read fluid outlet
pressure.
To find Pump Air Consumption (m#/min or scfm) at a specific fluid
flow (lpm/gpm) and air pressure (psi/MPa/bar):
1. Locate desired flow along bottom of chart.
2. Read vertical line up to intersection with selected air consumption
curve (gray). Follow right to scale to read air consumption.
KEY: Fluid Outlet Pressure – Black Curves
Air Consumption – Gray Curves
A 100 psi (0.7 MPa, 7 bar) air pressure
B 70 psi (0.49 MPa, 4.9 bar) air pressure
C 40 psi (0.28 MPa, 2.8 bar) air pressure
Performance Data
