Pioneer DMP-555 [10/24] Panel facilities
![Pioneer DMP-555 [10/24] Panel facilities](/views2/1019525/page10/bga.png)
10
En

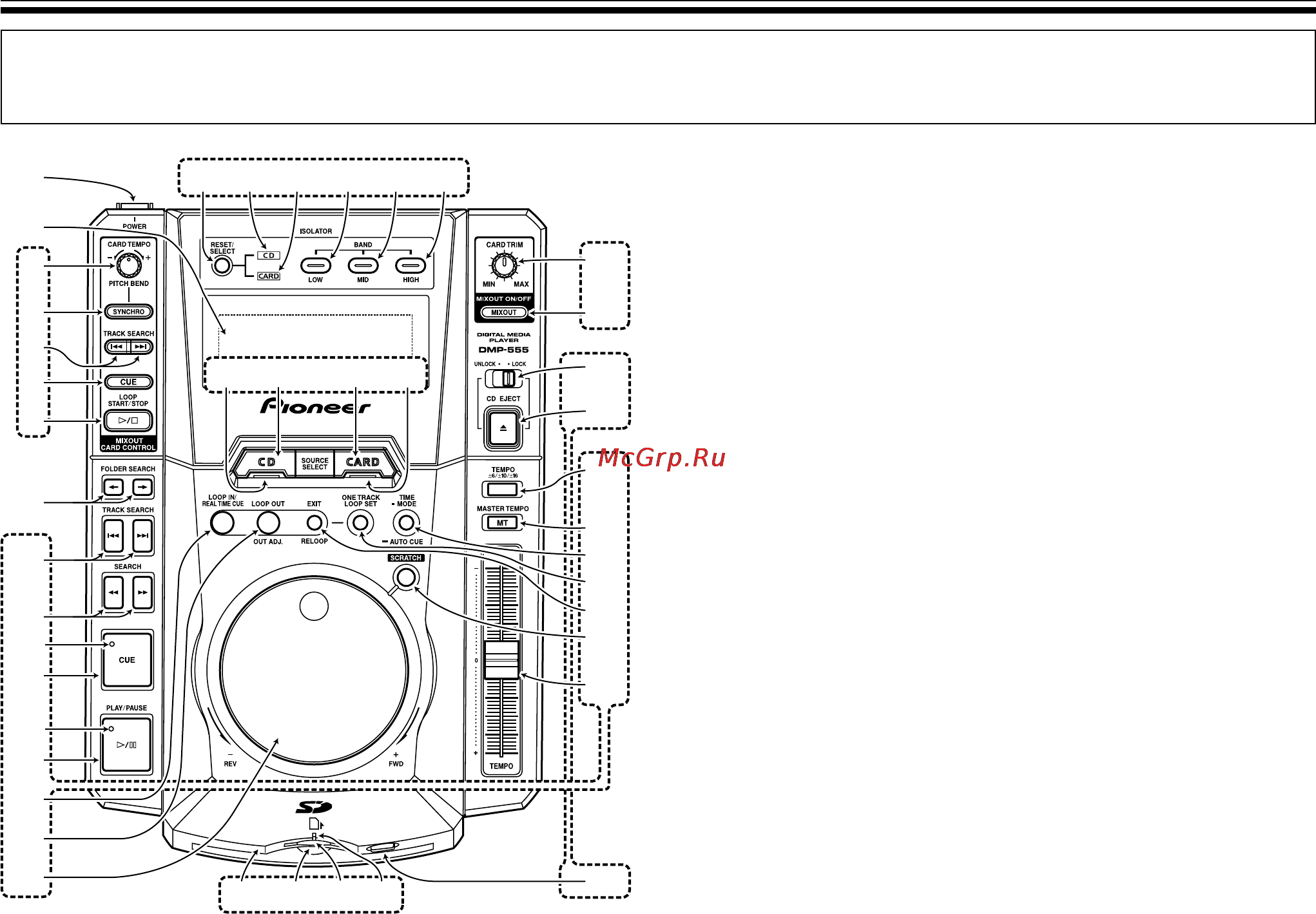

PANEL FACILITIES Buttons indicated by * cannot be used in digital mode.
BEFORE OPERATIONS
1 POWER switch (OFF —/ON _)
Located on the unit’s rear panel.
2 Display
☞
51-76
3 FOLDER SEARCH buttons (
+, =
)
☞
P. 13
Use when performing track search of media with layered file structure (for exam-
ple, CD-ROM or memory card).
[MIXOUT CARD CONTROL Block] (4~8)
÷ The buttons and other controls in this block are enabled only when source
selector is set to CD.
4 CARD TEMPO dial
(*) ☞
P. 1 9
Use to adjust the playback tempo of the track on the memory card being mixed
with the currently playing CD (CD-DA track).
5 Card mix SYNCHRO button / indicator (*)
☞
P. 1 9
Use to turn the BPM synchro function ON/OFF. When ON, the playback tempo of
the memory card track being mixed is automatically matched to the BPM rate of
the currently playing CD (CD-DA track).
6 Card mix TRACK SEARCH buttons (4, ¢)
☞
P. 18
7 Card mix CUE button / indicator (*)
☞
P. 18
When a memory card track is in cue pause mode, depressing this button plays back
the cued track while the button is held depressed; when the button is released, the
track returns to its cue point.
8 Card mix LOOP START/STOP button / indicator
(3/ 7) (*)
☞
P. 1 8
Use to perform seamless loop play/stop of the memory card track being mixed with
the currently playing CD (CD-DA track).
[DJ Operation Block] (9~24)
÷ The buttons and other controls in this block operate with respect to the media
designated by the source selector.
9 TRACK SEARCH buttons (4, ¢)
☞
P. 1 4
10 SEARCH buttons (1, ¡)
☞
P. 1 4
1
4
2
5
7
8
25 26 27 28
3
9
6
10
11
12
13
14
15
16
29 30
31
32
17
33
18
19
20
21
22
23
24
34
35
36
37
383940414243
11 CUE indicator (*)
☞
P. 14
This indicator lights whenever a cue point has been set, except during searches.
Flashes during pause mode.
12 CUE button (*)
[Setting a cue point] ☞ P. 14
[Back cue] ☞ P. 1 5
[Cue point sampler] ☞ P. 1 5
13 PLAY/PAUSE indicator (6)
Lights during play and flashes during pause.
14 PLAY/PAUSE button (6)
☞
P. 1 3
15 LOOP IN/REAL TIME CUE button / indicator (*)
Real time cue
☞
P. 15
Loop-in point input
☞
P. 1 6
16 LOOP OUT/OUT ADJ. button / indicator (*)
Loop-out point input
☞
P. 1 6
Loop-out point adjust
☞
P. 16
17 Jog dial (*) (+FWD/–REV)
☞
P. 1 5
18 TEMPO control slider (*)
☞
P. 1 5
Slide forward (+) to increase the playback tempo; move back (–) to reduce the
playback tempo.
19 SCRATCH button / indicator (*)
☞
P. 1 6
Use to switch jog dial function between scratch mode and CDJ mode.
÷ Defaults to CDJ mode each time power is turned ON.
20 EXIT/RELOOP button (*)
☞
P. 1 6
21 ONE TRACK LOOP SET button (*)
☞
P. 1 6
Press for loop play of a single track.
22 TIME MODE/AUTO CUE button (*)
TIME MODE: Pressing this button causes the time display to alternate between
elapsed playing time and remaining playing time (REMAIN) of the currently play-
ing track.
AUTO CUE mode: Hold button depressed for more than one second to switch
AUTO CUE mode ON/OFF
☞
P. 13.
23 MASTER TEMPO button / indicator (*)
☞
P. 1 5
Pressing this button causes the master tempo function to alternate between ON and
OFF.
24 TEMPO control range button (*) (±6/±10/±16)
Pressing this button causes the variable range of the TEMPO control slider to alter-
nate between ±6%, ±10%, and ±16%.
[SOURCE SELECT Block] (25~28)
25 CD indicator
☞
P. 1 3
Lights when CD is loaded. Flashes during CD eject.
26 CD select button / indicator
☞
P. 1 3
When this button is pressed, the CD player is enabled as main source, enabling DJ
play on CD-DA and CD-ROM.
27 CARD select button / indicator (*)
☞
P. 1 3
When this button is pressed, the memory card is enabled as main source, enabling
DJ play on SD card and MMC card.
28 CARD indicator
☞
P. 1 3
Lights when a memory card is loaded and ready to play. The indicator flashes if the
loaded card is not formatted correctly, or if it contains no track contents.
[Slot Block] (29~32)
29 Forced eject hole
☞
P. 5
30 Disc loading slot
☞
P. 1 2
31 Memory card loading slot
☞
P. 1 2
32 Slot indicator
Lights when power is turned ON, and flashes while data is being written to the
memory card.
