Pioneer DMP-555 [8/24] Connecting to a dj mixer djm 300 and a cd player cdj 100s sound output and control terminal connection

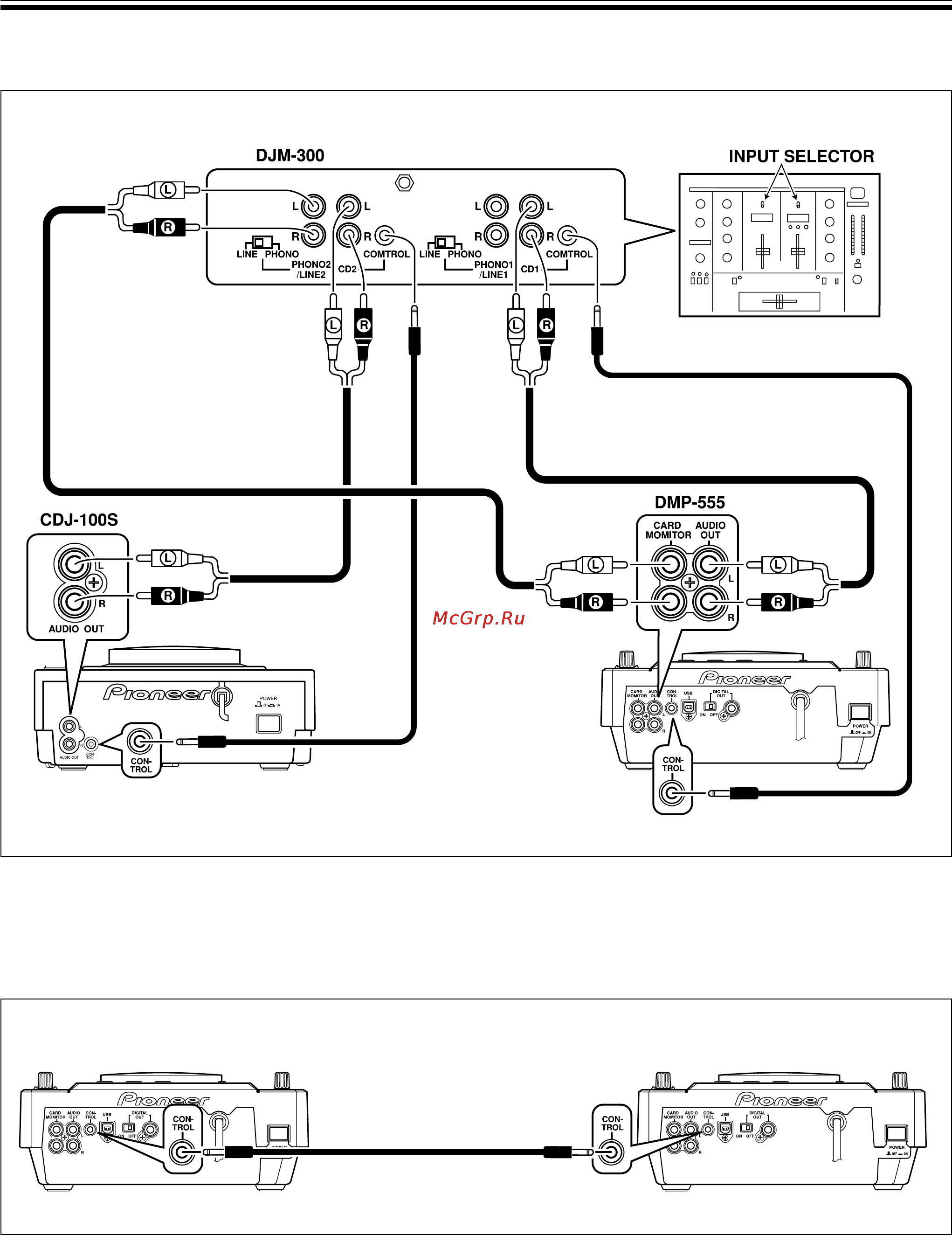

2. Connecting to a DJ mixer (DJM-300) and a CD player (CDJ-100S)

(sound output and CONTROL terminal connection)

BEFORE OPERATIONS: CONNECTIONS

Supplied audio cable

Supplied control cord

Supplied audio cable

Supplied control cord

Supplied audio cable

3. Connecting control cord to allow relay play

Alternate playback can be automatically performed when the CONTROL terminals of two units are connected with the supplied control cord. ☞ P.17

Supplied control cord

DMP-555 DMP-555

7 When connected as shown above, the DJ mixer’s INPUT SELECTOR

can be operated to confirm the output from CARD MONITOR.
