- 6 -

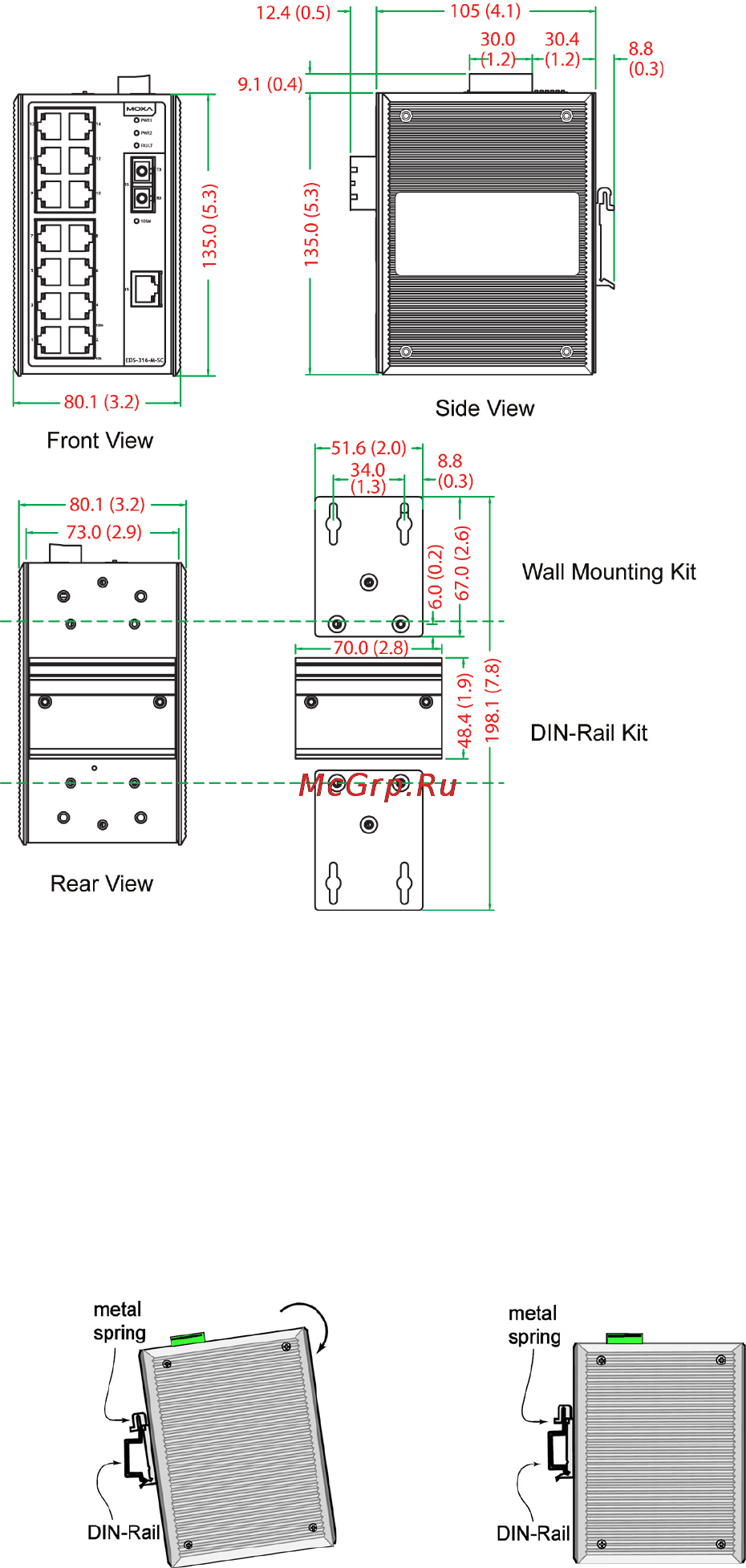

Mounting Dimensions

Unit = mm (inch)

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of EDS-316 when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate, make sure the stiff metal spring

is situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN

-Rail into

he slot just below the stiff metal

spring.

STEP 2:

The DIN

-Rail attachment unit will

snap into place as shown below.

To remove Moxa EtherDevice Switch from the DIN-Rail, simply reverse

Steps 1 and 2 above.
