- 7 -

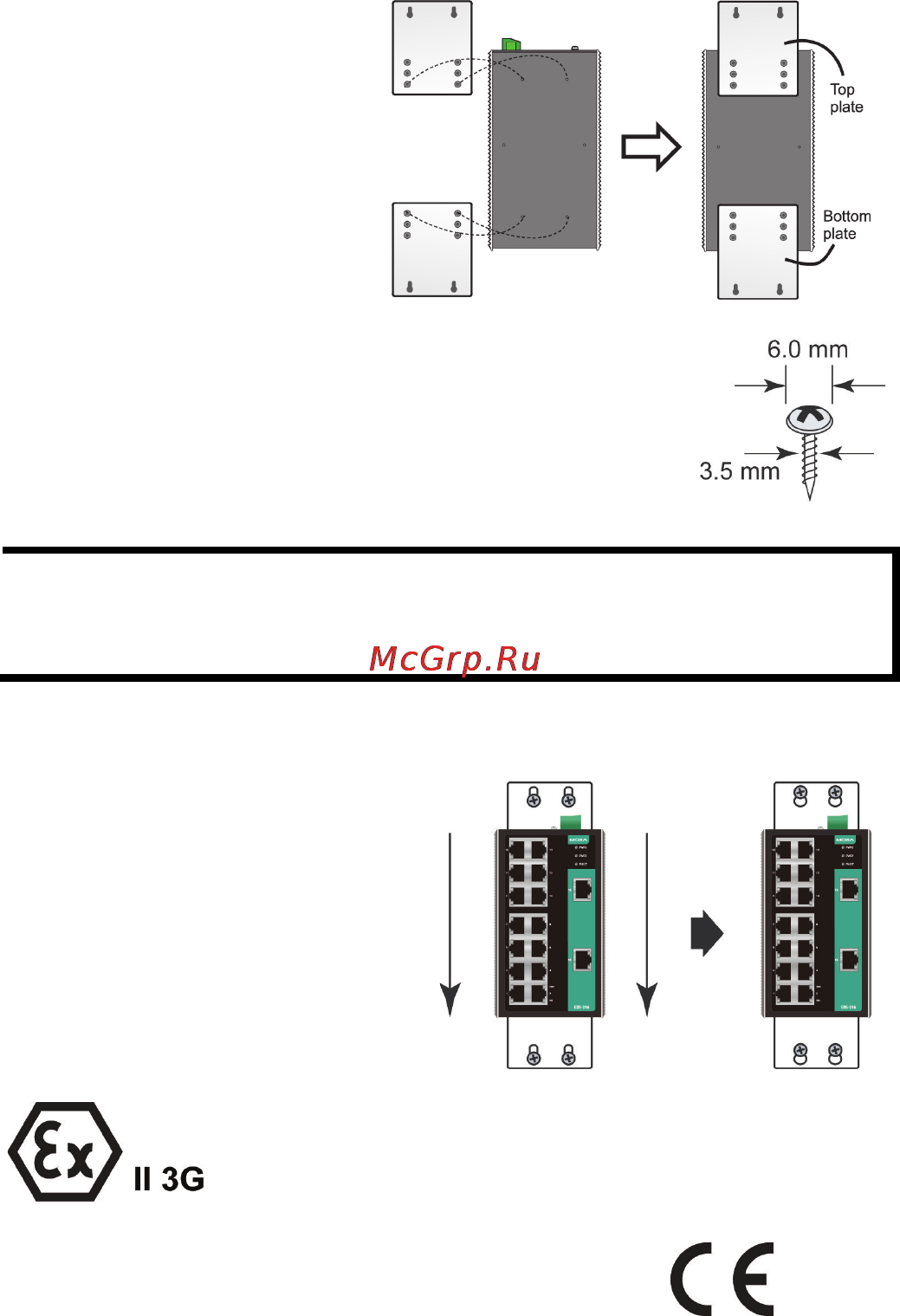

Wall Mounting (optional)
For some applications, you will find it convenient to mount EDS-316 on
the wall, as illustrated in the figure.
STEP 1: Remove the
aluminum DI
N-Rail
attachment plate from
EDS
-316’s rear panel, and
then attach the wall mount
plates, as shown in the
figu
re.
STEP 2:
Mounting EDS-316 on the wall requires 4
screws. Use the
switch, with wall mount plates
attached, as a guide to mark the correct locations of the
4 screws. The heads of the screws should be less than
6.0 mm in diameter, and the shafts should be less than
3.5 mm in diameter, as shown in the figure at the right.
NOTE
Before tightening screws into the wall, make sure the screw head
and shank size are suitable by inserting the screw into one of the
keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3: Once the screws are fixed
in the wall, insert the four screw
heads through the large parts of
the keyhole
-shaped apertures,
and then slide EDS
-316
downwards, as indicated. Tighten
the four screws for
added
stability.
ATEX Information
1. Certificate number DEMKO 08 ATEX 0812123x
2. Ambient range (-40°C ≤ Tamb ≤ 75°C)
4. Standards covered ( EN 60079-0:2012, EN 60079-15:2010)
5. The conditions of safe usage:
• These products must be mounted in an IP54 enclosure.
• Install in an area of pollution degree 2 or less.
• Use a conductor wire of size 0.2 mm² or greater.
•
Conductors suitable for use in an ambient temperature of 93°C
must be used for the Power Supply Terminal.
• PROVISIONS SHALL BE MADE, EITHER IN EXTERNAL TO THE
APPARATUS, TO PREVENT THE RATED VOLTAGE BEING
EXCEEDED BY THE TRANSIENTS DISTURBANCES OF MORE
THAN 40 %
