- 8 -
FAULT: The two middle contacts of the
6
-contact terminal block connector
are used to
detect both power faults and port faults. The
two wires attached to the Fault contacts form
a
n open circuit when:
1. EDS has lost power from one of the DC
power inputs.
OR
2. The PORT ALARM DIP switch for one of
the ports is set to ON, but the port is not
connected properly.
If
neither of these two conditions is satisfied,
the Fault circuit will
be closed.

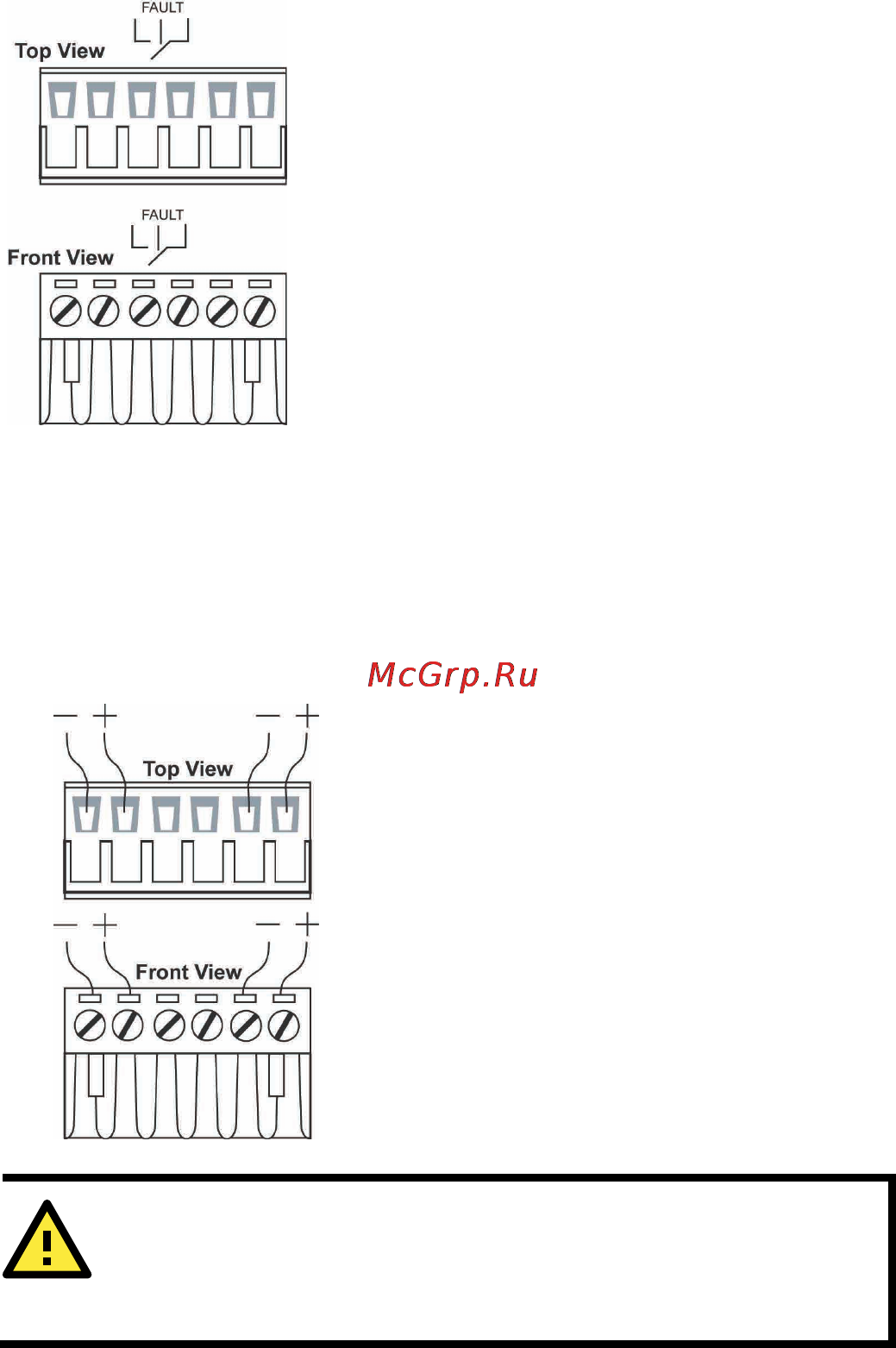

Wiring the Redundant Power Inputs
The top two contacts and the bottom two contacts of the 6-contact
terminal block connector on the EDS’s top panel are used for the EDS’s DC
inputs. Top and front views of one of the terminal block connectors are
shown here.
STEP 1:
Insert the negative/positive DC
wires into the
V-/V+ terminals.
STEP 2:
To keep the DC wires from pulling
loose, use a small flat
-
blade screwdriver to
tighten the wire
-
clamp screws on the front
of the terminal block connector.
STEP 3:
Insert the plastic terminal block
connector prongs into the terminal block
receptor, which is
located on EDS’s top
panel.
ATTENTION
Before connecting
the
EDS to the DC power inputs, make sure the
DC power source voltage is stable.
Communication Connections
EDS-G205 Models have 5 10/100/1000BaseT(X) Ethernet ports.
10/100/1000BaseT(X) Ethernet Port Connection
The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s
front panel are used to connect to Ethernet-enabled devices. Most users
will choose to configure these ports for Auto MDI/MDI-X mode, in which
case the port’s pinouts are adjusted automatically depending on the type
of Ethernet cable used (straight-through or cross-over), and the type of
device (NIC-type or HUB/Switch-type) connected to the port.
