- 9 -
ATTENTION
This product is intended to be mounted to a well
-grounded
mounting surface such as a metal panel.
Wiring the Relay Contact

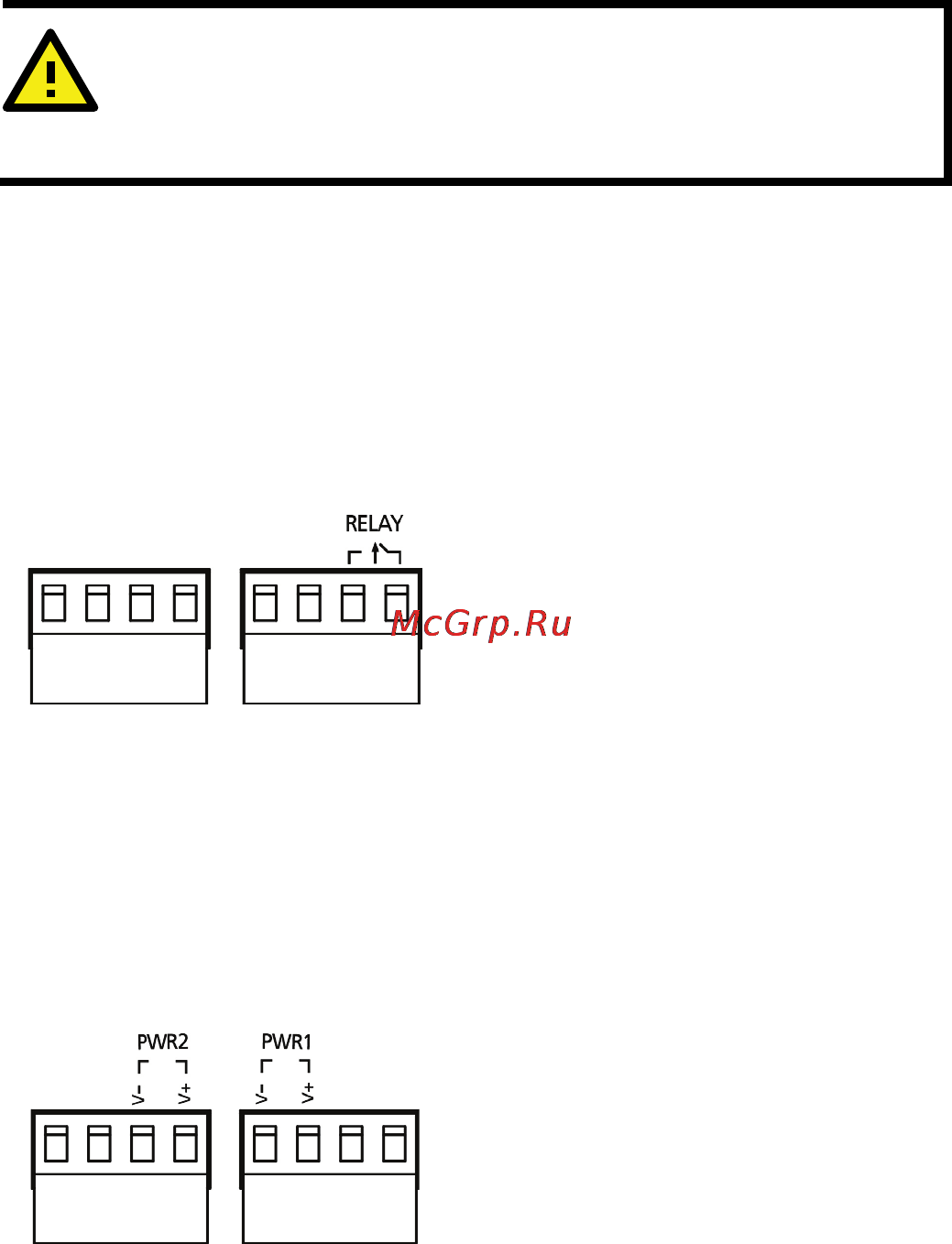

The EDS-G500E series has one set of relay output. This relay contact uses
two contacts of the terminal block on the EDS-G500E’s top panel. Refer to
the next section for detailed instructions on how to connect the wires to
the terminal block connector, and how to attach the terminal block
connector to the terminal block receptor. In this section, we illustrate the
meaning of the two contacts used to connect the relay contact.
FAULT:
The two contacts of the 6
-pin te
rminal
block connector are used to detect
user
-
configured events. The two wires
attached to the
f
ault contacts form an
open circuit when a user
-configured
event is triggered. If a user
-
configured
event does not occur, the
fault circuit
remains closed.
Wiring the Redundant Power Inputs
The EDS-G500E series has two sets of power inputs—power input 1 and
power input 2. The top and front views of one of the terminal block
connectors are shown here.
STEP 1:
Insert the negative/positive
DC wires into the V
-/V+ terminals,
respectively.
STEP 2:
To keep the DC wires from
pulling loose, use a small flat
-blade
screwdriver to tighten the wire
-
clamp
screws on the front of the terminal
block connector.
STEP 3:
Insert the plastic terminal
block connector prongs into the
terminal block receptor, which is
located on the EDS-G500E’s top panel.
Wiring the Digital Inputs
The EDS-G500E series has one set of digital input (DI). The DI consists of
two contacts of the 4-pin terminal block connector on the EDS-G500E's
top panel, which are used for the two DC inputs. The top and front views
of one of the terminal block connectors are shown here.
