1000BaseSFP (mini-GBIC) Fiber Port

The gigabit Ethernet ports on the EDS-510A-1GT2SFP and

EDS-510A-3SFP are 1000BaseSFP Fiber ports, which require using the

gigabit mini-GBIC fiber transceivers to work properly. Moxa provides

completed transceiver models for different distance requirement. Please

refer to Specifications section for more optical fiber information.

The concept behind the LC port and cable is quite straightforward.

Suppose that you are connecting devices I and II; contrary to electrical

signals, optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

I to device II, and the other optical line is used transmit data from device

II to device I, for full-duplex transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)

port of device II, and the Rx (receive) port of device I to the Tx (transmit)

port of device II. If you make your own cable, we suggest labeling the two

sides of the same line with the same letter (A-to-A and B-to-B, as shown

below, or A1-to-A2 and B1-to-B2).

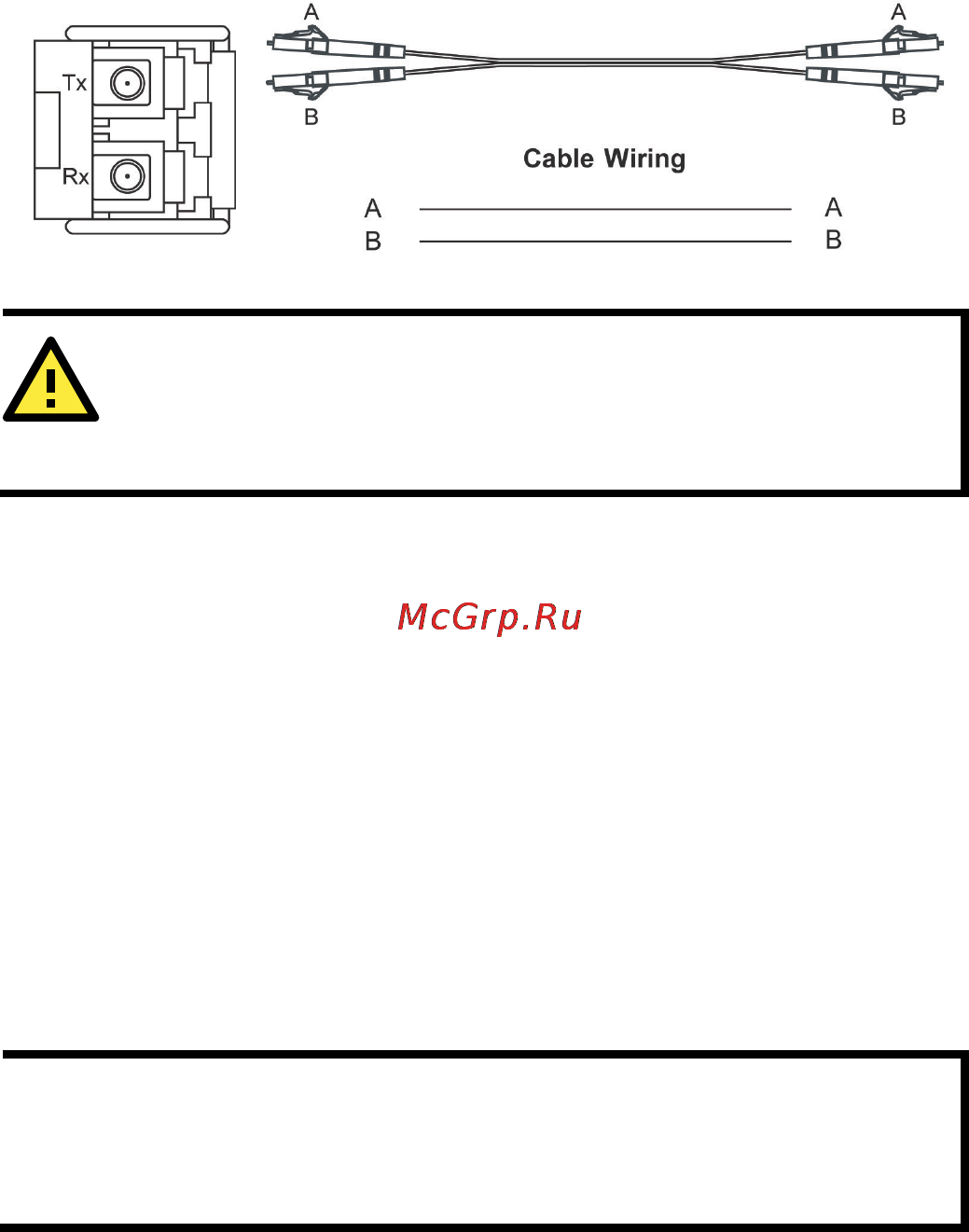

LC-Port Pinouts

LC-Port to LC-Port Cable Wiring

ATTENTION

This is a Class 1 Laser/LED product. To avoid causing serious

damage to your eyes, do not stare directly into the Laser Beam.

Turbo Ring DIP Switch Settings

EDS-510A series are plug-and-play managed redundant Ethernet

switches. The proprietary Turbo Ring protocol was developed by Moxa to

provide better network reliability and faster recovery time. Moxa Turbo

Ring’s recovery time is less than 300 ms (Turbo Ring) or 20 ms (Turbo

Ring V2) —compared to a 3- to 5-minute recovery time for commercial

switches—decreasing the possible loss caused by network failures in an

industrial setting.

There are 4 Hardware DIP Switches for Turbo Ring on the top panel of

EDS-510A that can help setup the Turbo Ring easily within seconds. If you

do not want to use a hardware DIP switch to setup the Turbo Ring, you

can use a web browser, telnet, or console to disable this function.

NOTE

Please refer to the

Turbo Ring DIP Switch section and Using

Communication Redundancy

section in User’s Manual for

more detail information about the settings and usage of

Turbo

Ring and Turbo Ring V2.
