- 5 -

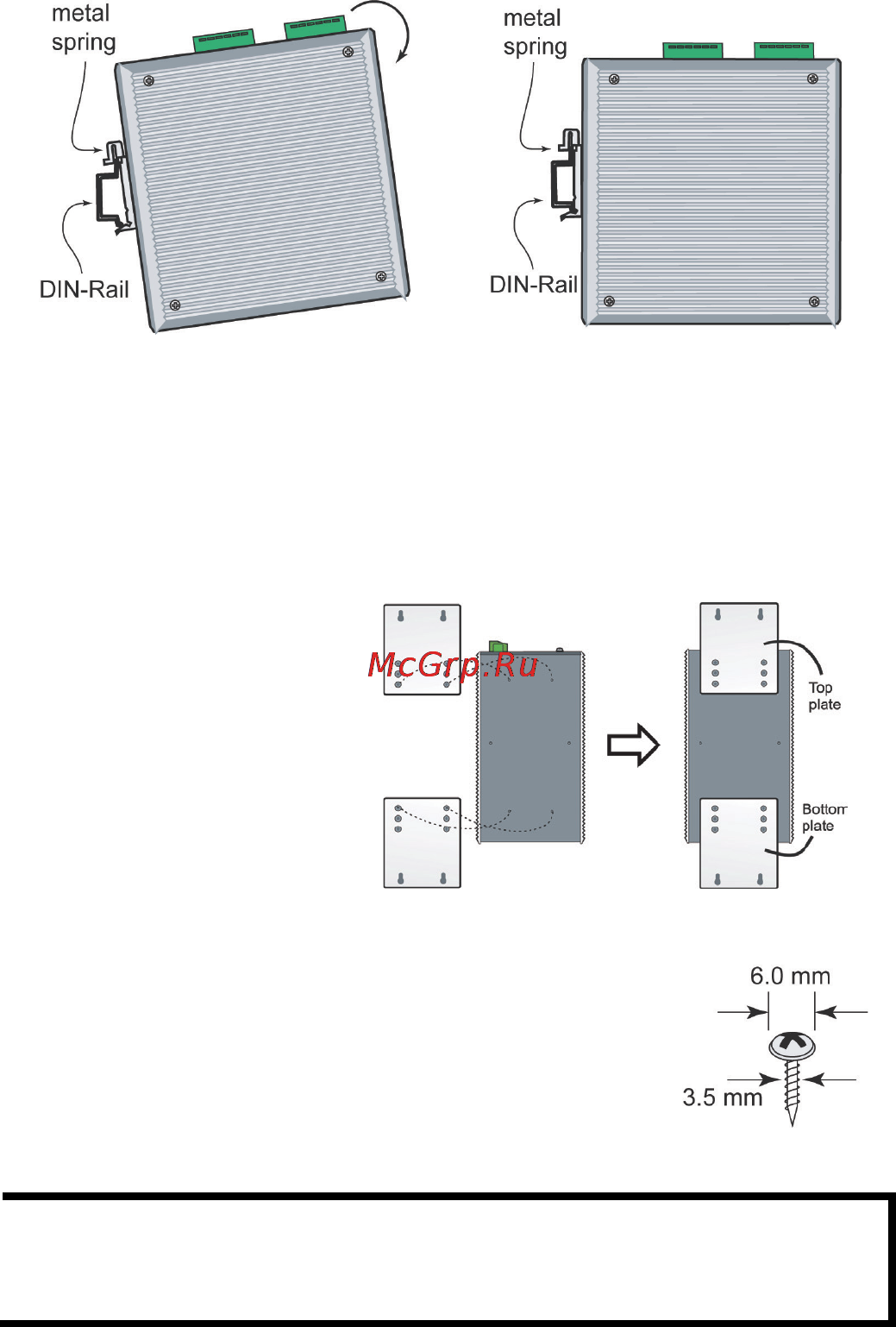

DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the
back panel of the EDS-510A when you take it out of the box. If you need
to reattach the DIN-Rail attachment plate to the EDS-510A, make sure
the stiff metal spring is situated towards the top, as shown by the
following figures.
STEP 1
—
Insert the top of the
DIN
-Rail into the slot just below the
stiff metal spring.
STEP 2
—
The DIN-Rail attachment
unit will snap into place as shown
in
the following illustration.
To remove the EDS-510A from the DIN-Rail, simply reverse Steps 1 and
2 above.
Wall Mounting (Optional)
For some applications, you will find it convenient to mount Moxa
EDS-510A on the wall, as shown in the following illustrations:
STEP 1—Remove the
aluminum DIN
-Rail
attachment plate from the
rear panel
of the EDS-510A
,
and then attach the wall
mount plates
with M3
screws
, as shown in the
figure
at the right.
STEP 2—Mounting the EDS-510A on the wall requires
4 screws. Use the
EDS-510A, with wall mount plates
attached, as a guide to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the shafts should be less
than 3.5
mm in diameter, as shown in the figure on a
t
right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
