Moxa PT-510-MM-SC-48 [5/15] Din rail mounting

- 5 -

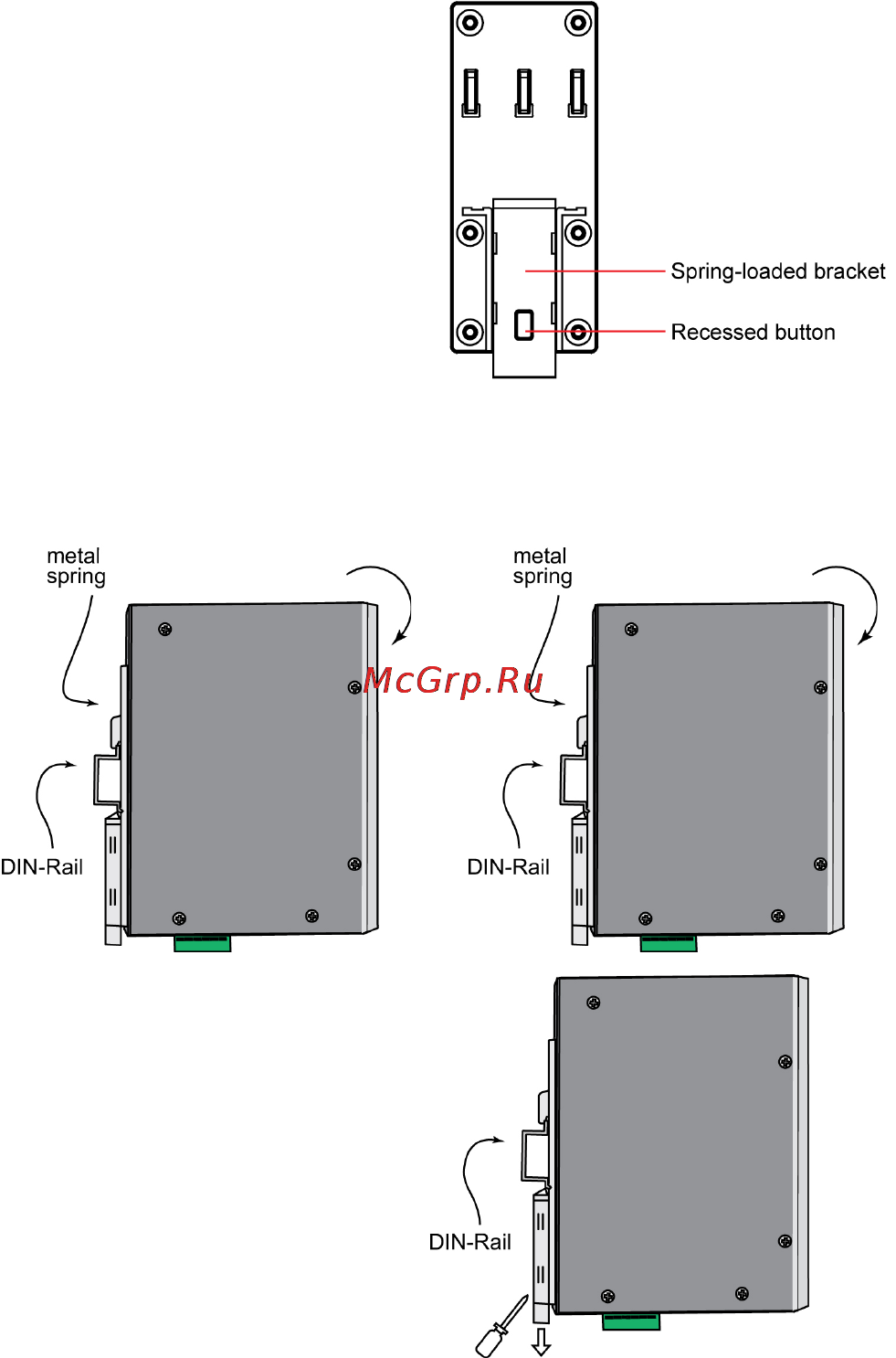

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the PT-510 when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to the PT-510, make sure the stiff

metal spring is situated towards the top as shown in the figures below.

STEP 1: If the spring-loaded

bracket is locked in place,

push the recessed button to

release it. Once released, you

should feel some resistance

from the spring as you slide

the bracket up and down a few

millimeters in each direction.

STEP 2:

Insert the top of

the DIN-Rail

into the top slots on the

DIN-Rail attachment plate.

STEP 3:

The DIN

Rail attachment unit will snap

into place as shown in the following

illustration.

To remove the Moxa

PT-510

switch from the DIN

-Rail, use a

screwdriver to push down the

spring

-loaded bracket until it locks

in place, as shown in the following

diagram. Next, rotate the bottom

of the switch upwards and then

remove the switch from the

DIN

-Rail.
