- 6 -

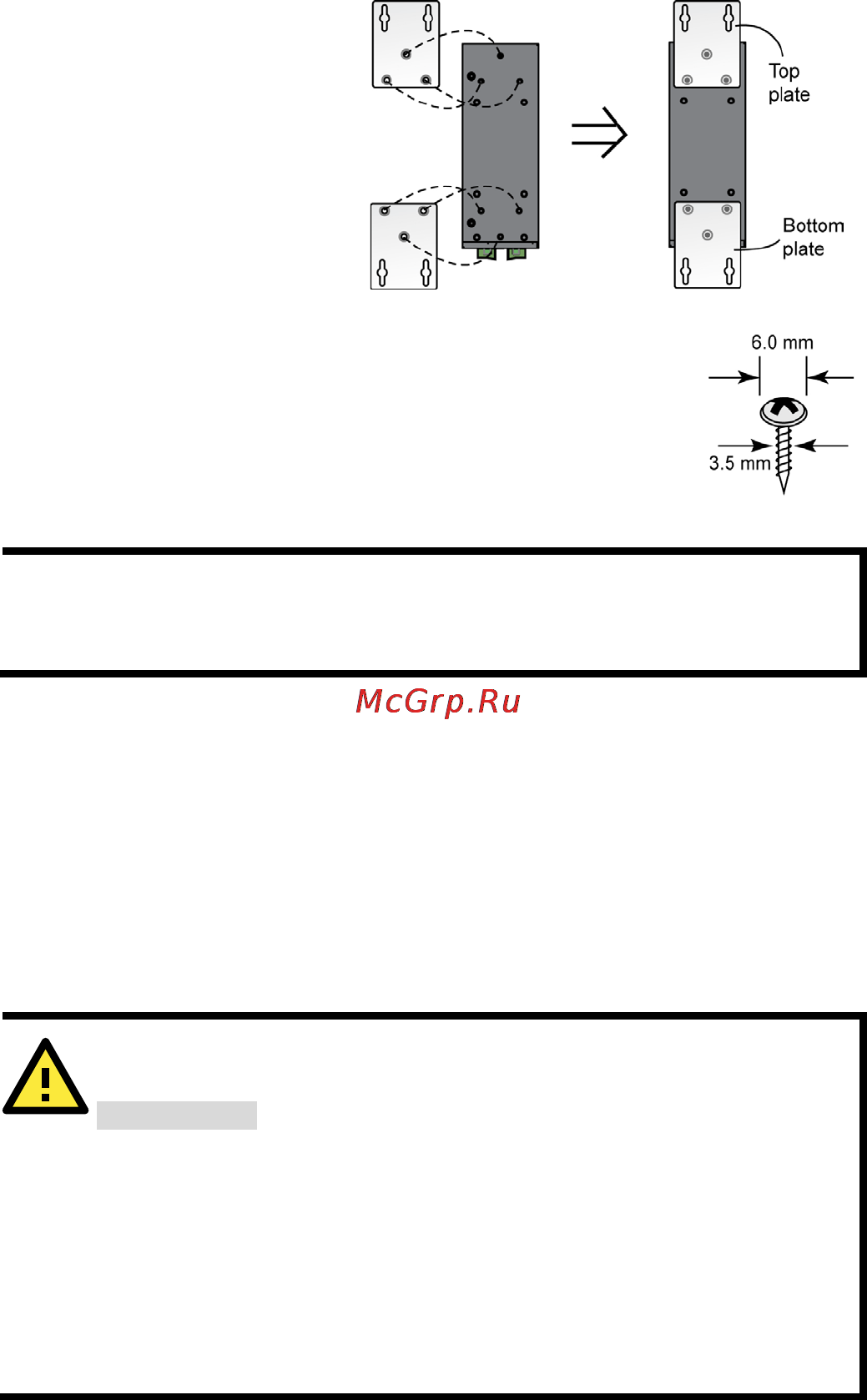

Wall Mounting (optional)
For added convenience, the PT-510 can be wall mounted as illustrated
below.
STEP 1: Remove the
aluminum DIN
-Rail
attachment plate from
the
PT
-510’s rear panel, and then
attach the wall mount plates
with
6 M3 screws, as shown
on
the right.
STEP 2: Mounting the PT-510 to a wall requires 4
screws. Use the
PT-510
, with wall mount plates attached,
as a guide to mark the correct locations for the 4 screws.
The heads of the screws should be less than 6.0 mm in
diameter, and the shafts should be less than 3.5 mm in
diameter, as shown on the right.
NOTE
Test the screw’s head and shank size by inserting the screw into
one of the keyhole
-shaped apertures of the wall mounting plates
before screwing it into the wall.
DO NOT screw the screws all the way in—leave a space of about 2 mm to
allow room for sliding the wall mount panel between the wall and the
screws.
STEP 3: After the screws are fixed into the wall, insert the four screw
heads through the large opening of the keyhole-shaped apertures, and
then slide the PT-510 downwards. Tighten the 4 screws for added
stability.
Wiring Requirements
WARNING
Safety First!
Be sure the power cord is disconnected before installing and/or
wiring your
PT-510.
Calculate the maximum possible current in each power wire and
common wire. Observe all electrical codes dictating the
maximum current allowed for each wire size. If the current goes
above the maximum rating, the wiring could overheat, causing
serious damage to your equipment.
