Wall Mounting (optional)
For some applications, you will find it convenient to mount the
EDS-P206A-4PoE on the wall, as shown in the following figures.

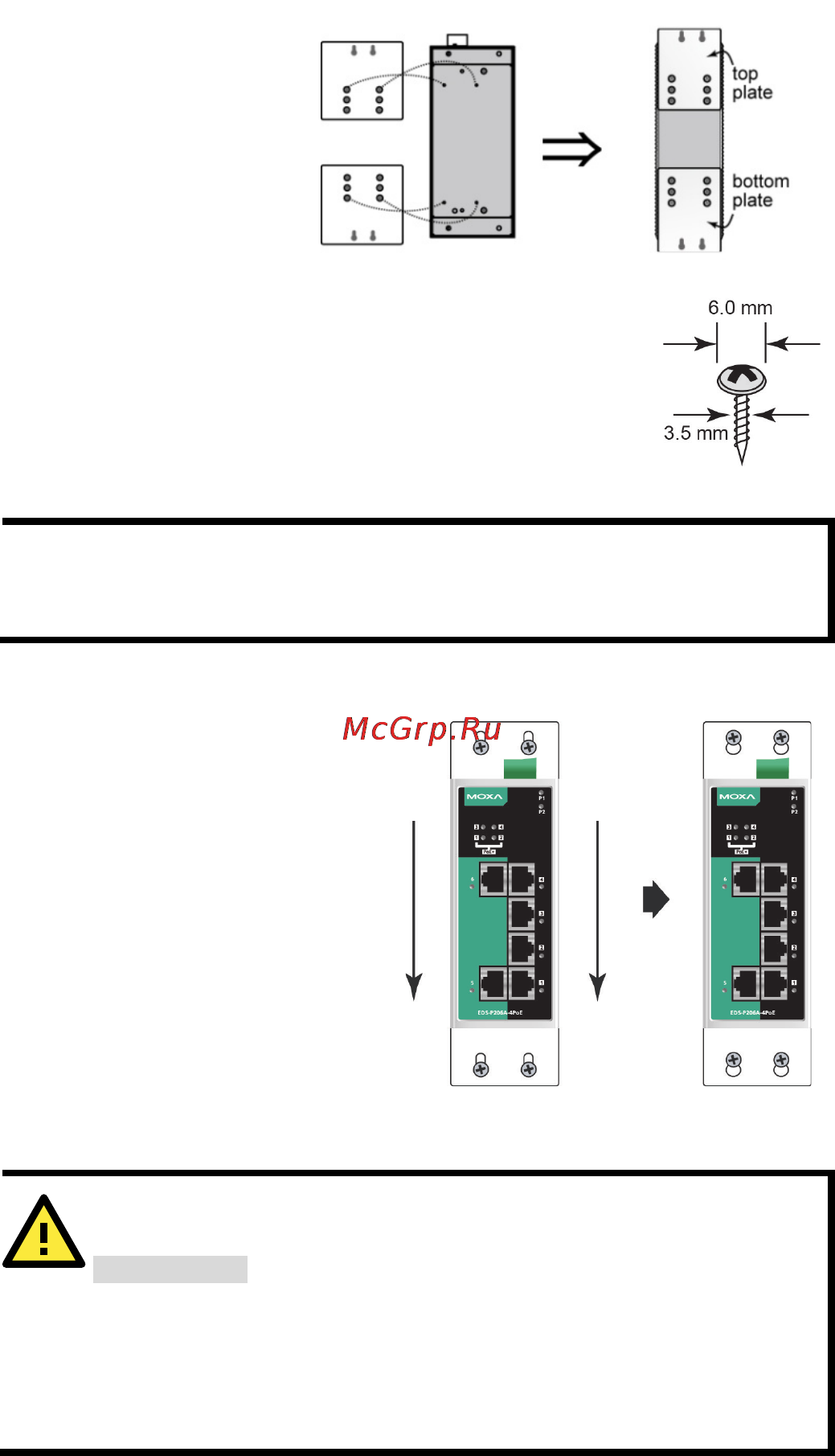

STEP 1: Remove the
aluminum DIN
-Rail
attachment plate from the
EDS
-P206A-4PoE’s rear
panel, and then attach the
wall mount plates as
shown
in the diagram at
the right.
STEP 2:
Mounting the EDS-P206A-4PoE on the wall
requires 4 screws. Use the
s
witch, with wall mount plates
attached, as a guide to mark the correct locations of the
4 screws. The heads of the screws should be less than 6.0
mm in diameter, and the shafts should be less than 3.5
mm in diameter, as shown
in the figure at the right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw into one
of the keyhole-shaped apertures of the wall mounting plates.
Do not screw the screws in completely—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3: Once the screws are fixed
i
n the wall, insert the four screw
heads through the large parts of
the keyhole
-shaped apertures,
and then slide
the
EDS
-P206A-4PoE downwards, as
indicated. Tighten the four screws
for
added stability.
Wiring Requirements
WARNING
Safety First!
Turn the power off before disconnecting modules or wires. The
correct power supply voltage is listed on the product label. Check
the voltage of your power source to make sure that you are using
the correct voltage. Do NOT use a voltage greater than what is
specified on the product label.
