- 7 -

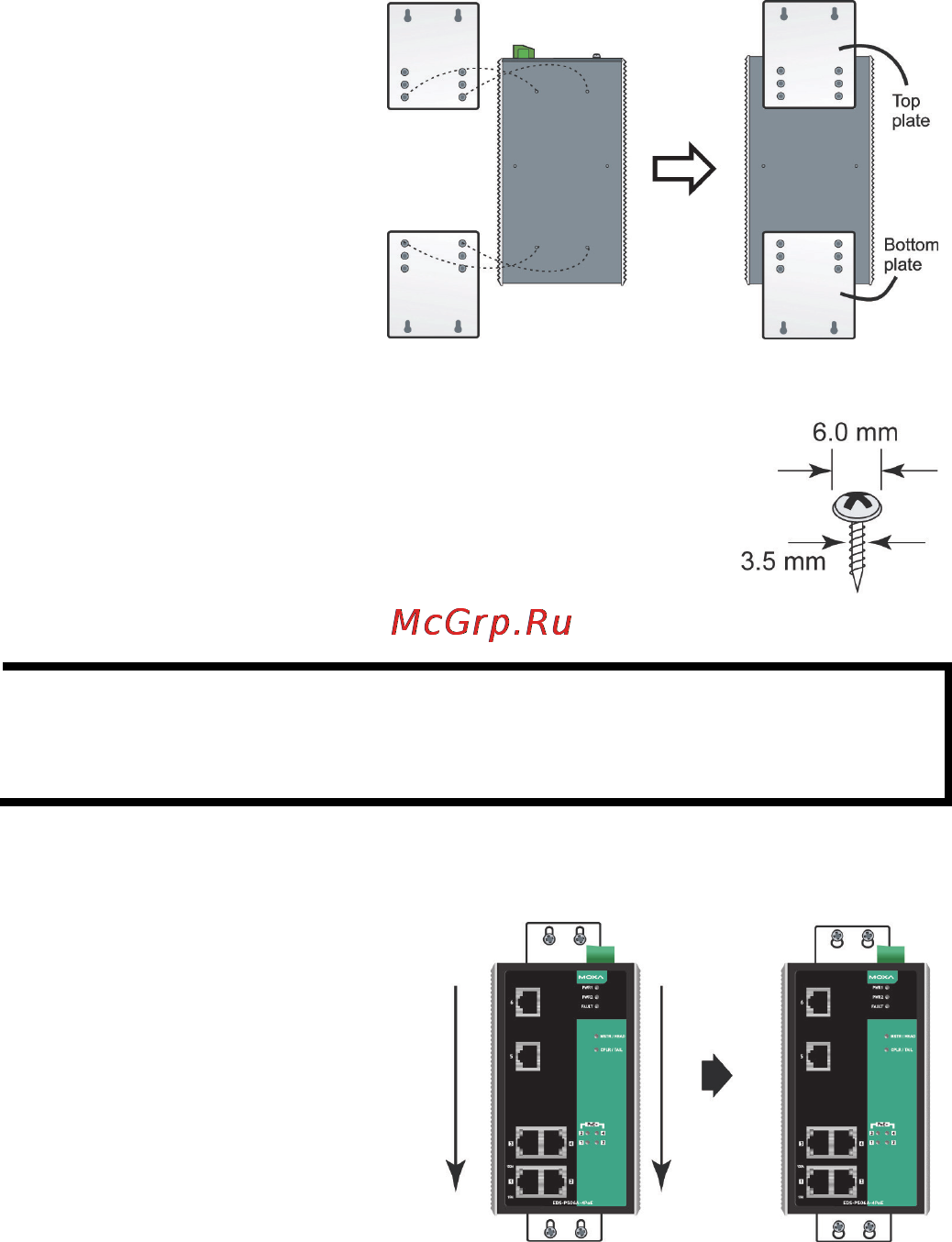

Wall Mounting (Optional)
For some applications, you will find it convenient to mount the Moxa
EDS-P506A-4PoE on the wall, as shown in the following illustrations:
STEP 1—Remove the
aluminum DIN
-Rail
attachment plate from the
rear panel
of the
EDS
-P506A-4PoE, and then
attach the wall mount plates
with M3 screws
, as shown
in
the figure to the right.
STEP 2—Mounting the EDS-P506A-4PoE on the wall
requires 4 screws. Use the
EDS-P506A-4PoE, with wall
mount plates attached, as a guide to mark the correct
locations of the
6 screws. The heads of the screws should
be less than 6.0 mm in diameter, and the shafts should
be less than 3.5
mm in diameter, as shown in
the figure
to the right.
NOTE
Before
tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3—Once the screws are
fixed
to the wall, insert the four
screw heads through the wide
parts of the keyhole
-shaped
apertures, and then slide
the
EDS
-P506A-4PoE downwards, as
indicated
in the figure at
the right.
Tighten the four screws for
more
stability
.
