2
www.moxa.com
info@moxa.com
Industry-specific Ethernet Switches
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
Interface
Fast Ethernet: Front cabling, M12 D-coded 4-pin female connector,
10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto
MDI/MDI-X connection
Console Port: M12 A-coding 5-pin male connector
System LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/
TAIL
Port LED Indicators: 10/100M (Fast Ethernet port)
Alarm Contact: 2 relay outputs in one M12 A-coding 5-pin male
connector with current carrying capacity of 1A @ 30 VDC
Power Requirements
Input Voltage:
WV: 24 to 110 VDC (16.8 to 137.5 VDC)
Max. Input Current:
TN-5508A series: 0.28 A @ 24 VDC; 0.07 A @ 110 VDC
TN-5516A series: 0.39 A @ 24 VDC; 0.09 A @ 110 VDC
Overload Current Protection: Present
Connection: M23 connector
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Aluminium alloy, IP54 protection (optional protective caps
available for unused ports)
Dimensions:
TN-5508A Series: 185 x 175.8 x 76.0 mm (7.28 x 6.92 x 2.99 in)
TN-5516A Series: 250 x 175.8 x 76.0 mm (9.84 x 6.92 x 2.99 in)
Weight:
TN-5508A Series: 1,610 g
TN-5516A Series: 2,138 g
Installation: Panel mounting, DIN-rail mounting (with optional kit:
DK-DC50131)
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Vibration:
IEC 60068-2-6, 2-17.8 Hz: ±1.6 mm; 17.8-500 Hz: 2 g; 2 hours/axis
Shock: IEC 60068-2-27, 20 g / 11 ms
Ingress Protection: IEC 60529, IP54
Altitude: Up to 2,000 m
Note: Please contact Moxa if you require products guaranteed to function at
higher altitudes
Standards and Certifications
Safety: UL/cUL 508, EN 60950-1 (LVD)
EMC: EN 55022, EN 55024
EMI: CISPR 22, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact 6 kV; Air 8 kV
IEC 61000-4-3 RS: 20 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power 2 kV; Signal 2 kV
IEC 61000-4-5 Surge: Power 2 kV; Signal 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Rail Traffic: (for panel mounting installations)
EN 50155 (essential compliance*), EN 50121-4, EN 50121-3-2,
EN 45545-2
*Please contact Moxa or a Moxa distributor for details.
Shock: IEC 61373
Freefall: IEC 60068-2-32
Vibration: EN 50155, IEC 61373
MTBF
Time:
TN-5508A series: 814,964 hrs
TN-5516A series: 722,721 hrs
Standard: Telcordia SR332, GB, 25°C
Note: Please check Moxa’s website for the most up-to-date certification status.
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

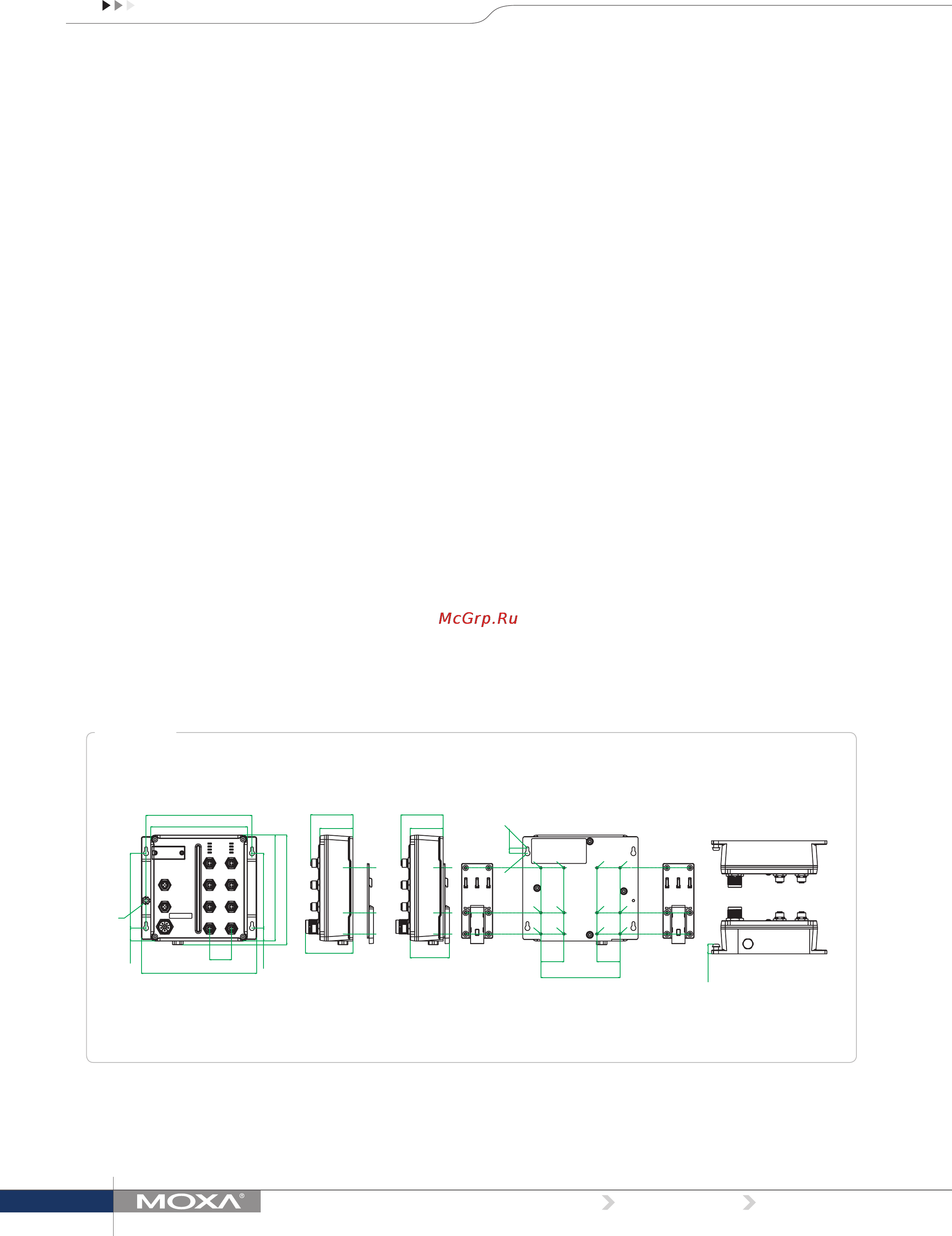

Dimensions
Unit: mm (inch)
TN-5508A Series
Front View Rear View Top & Bottom ViewsDIN-Rail
Mounting Kit
Side View (including
DIN-Rail Mounting Kit)
170 (6.69)
155 (6.10)
120 (4.72)21 (0.83)
M6
185 (7.28)
35 (1.38)
120 (4.72)
21
(0.83)
170 (6.69)
175.8 (6.92)
76 (2.99)
63.2 (2.49)
67.7 (2.67)
53.2 (2.09)
67.7 (2.67)
53.2 (2.09)
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
Ø4.5 (Ø0.18)
Ø8 (Ø0.31)
131 (5.16)
37
(1.46)
8
(0.31)
37
(1.46)
15.46 (0.61)
