Moxa TN-5516A-WV-T [3/4] Ordering information

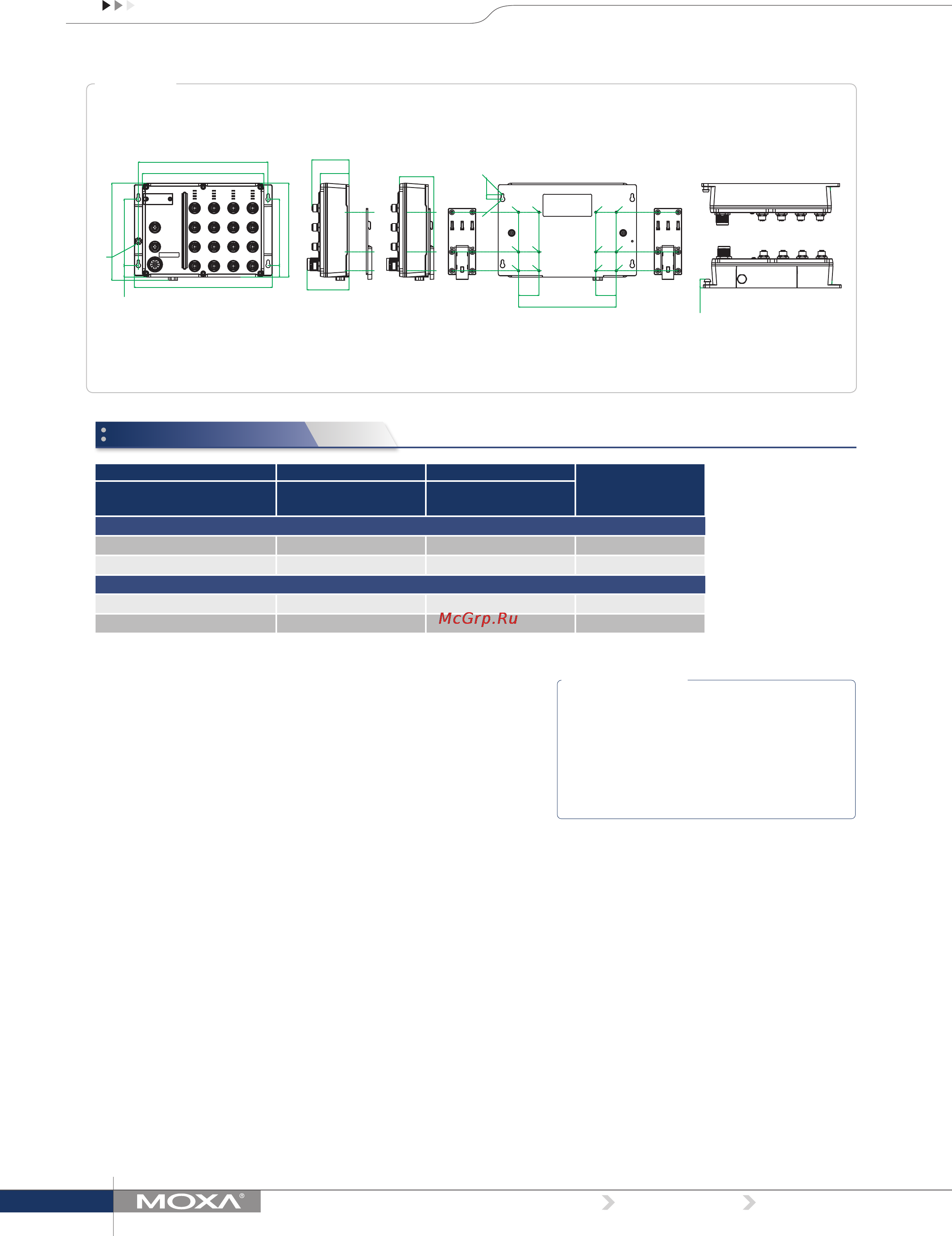

![Moxa TN-5516A-WV-T [3/4] Ordering information](/views2/1197380/page3/bg3.png)
3
www.moxa.com
info@moxa.com
Industry-specific Ethernet Switches
Dimensions
Unit: mm (inch)
TN-5516A Series
Front View Rear View Top & Bottom ViewsDIN-Rail
Mounting Kit
Side View (including
DIN-Rail Mounting Kit)
235 (9.25)
250 (9.84)
M6
220 (8.66)
175.8 (6.92)
120 (4.72)21 (0.83)
120 (4.72)
170 (6.69)
21 (0.83)
76 (2.99)
67.7 (2.67)
62.7 (2.47)
52.7
(2.07)
177 (6.97)
8
(0.31)
37
(1.46)
37
(1.46)
Ø4.5 (Ø0.18)
Ø8 (Ø0.31)
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
15.46 (0.61)
Ordering Information
Available Models Port Interface Power Supply
Conformal
Coating
Wide Temperature
(-40 to 75°C)
10/100 BaseT(X),
M12 connector
WV: 24 to 110 VDC
(16.8 to 137.5 VDC)
TN-5508A Series
TN-5508A-WV-T
8 1 (dual inputs)
–
TN-5508A-WV-CT-T
8 1 (dual inputs)
ü
TN-5516A Series
TN-5516A-WV-T
16 1 (dual inputs)
–
TN-5516A-WV-CT-T
16 1 (dual inputs)
ü
Optional Accessories (must be purchased separately)
Power Cords, M12/M23 Connectors, Protective Caps: See following page
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or
2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01-M12: Configuration backup and restoration tool for TN series managed Ethernet
switches, 0 to 60°C operating temperature
Package Checklist
• TN-5500A switch
• M12-to-DB9 console port cable
• 2 protective caps for console and relay output ports
• Panel mounting kit
• Documentation and software CD
• Hardware installation guide
• Warranty card
