Moxa TN-5818-2GTXBP-HV-HV [23/36] Configuring turbo chain
![Moxa TN-5818-2GTXBP-HV-HV [23/36] Configuring turbo chain](/views2/1196347/page23/bg17.png)
Communication Redundancy Turbo Chain
3-3

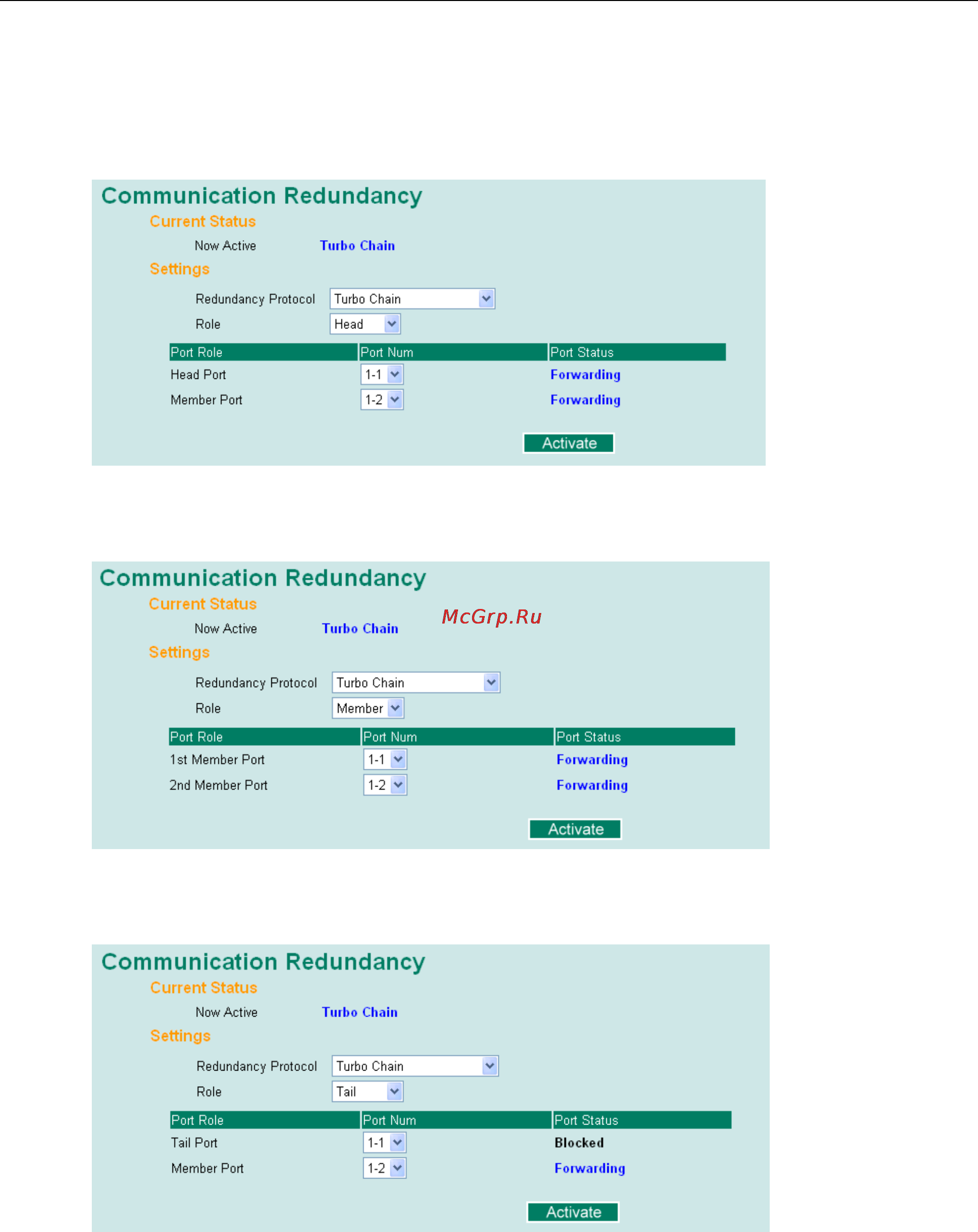

Configuring “Turbo Chain”
Head Switch Configuration
Member Switch Configuration
Tail Switch Configuration
Explanation of “Current Status” Items
Now Active
It shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, RSTP, Turbo Chain, or None.
The “Ports Status” indicators show Forwarding for normal transmission, Blocked if this port is connected to
the Tail port as a backup path and the path is blocked, and Link down if there is no connection.
