MartinLogan Helos 100 [3/12] Lacement

Placement 3

PlaCement

12” Min.

7’–10’

Figure 2. Adding a center channel to create a 3-channel installation.

12” Min.

12”

Min.

7’–10’

Figure 1. 2-channel installation.

12” Min.

12”

Min.

Figure 4. Adding surround channels to create a 7-channel installation.

12”

Min.

12”

Min.

Figure 3. Adding surround channels to create a 5-channel installation.

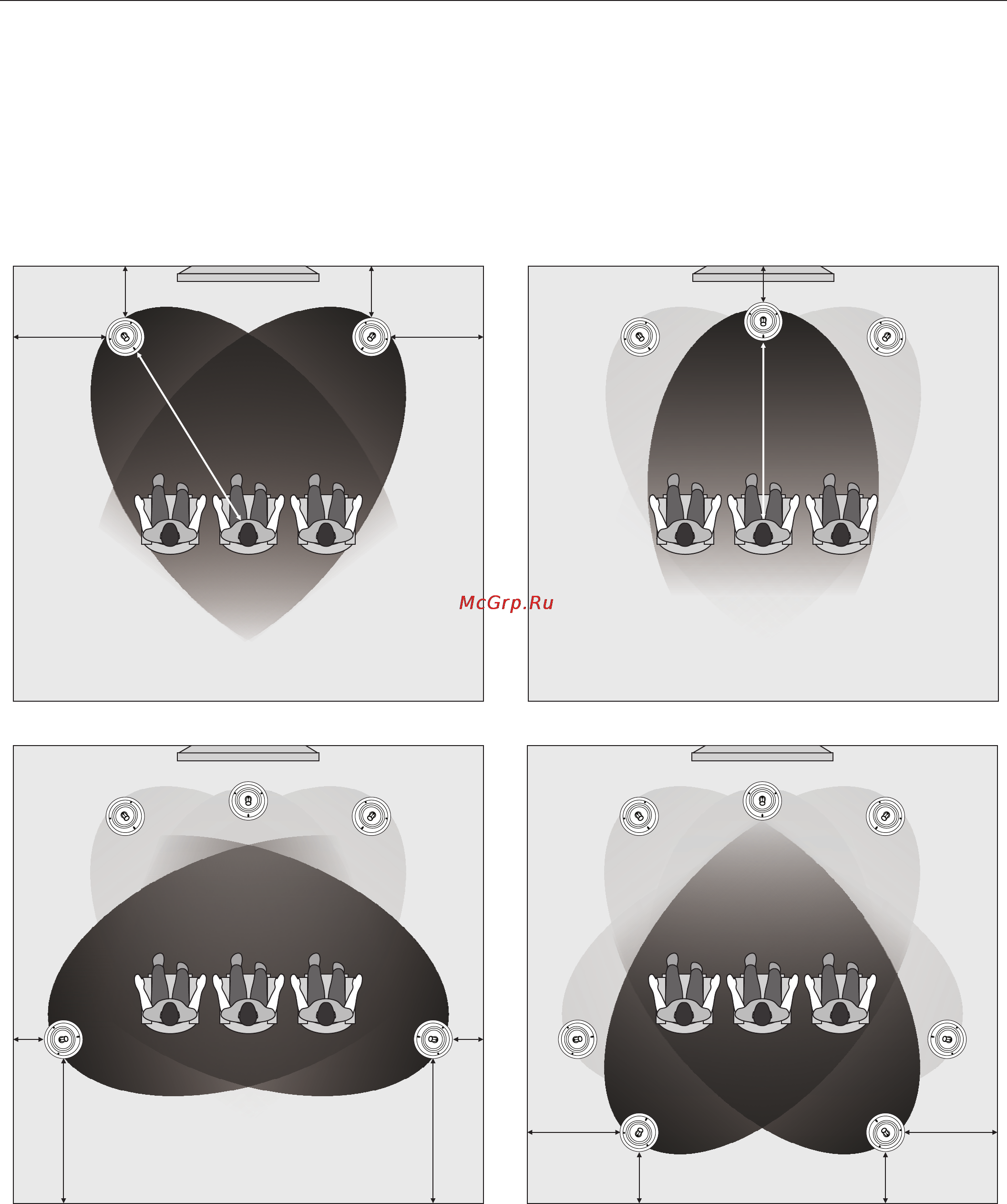

When choosing placement for the Helos 100, follow these

simple tips:

— Place the Helos 100 a minimum of 12" (30cm) from

any wall.

— Place the front and center channels between 7 to 10 feet

(214 to 305cm) from the primary listening position.

— Point the tweeter of all speakers towards the primary

listening position.

— Set the acoustic contour switch to 'spot'. After listen-

ing to the Helos 100, if the high-frequencies from a

speaker seem weak, adjust the acoustic contour switch

to 'wide'.
