4 Installation
NOTE: These instructions must be carefully followed to
assure that your Helos 100 is safely installed. Study them
thoroughly before installing your Helos 100.
NOTE: The following instructions assume the mounting
surface is of standard wood frame and standard sheet
rock construction. If you wish to mount the Helos 100 to
another type of material, you should consult a bonded
contractor.
Warning! Before installing check
local building codes to verify com-
pliance with local regulations.
Warning! Before installing check
for obstructions behind the drywall
(electrical, plumbing and other
fixtures). To do this make a small
hole, cutting at a 45° angle (this
will make the hole easier to patch
if obstructions are found). Only
cut the mounting hole after
you have verified there are no
obstructions behind the wall.
Required tools (not included):
Stud finder
Sharp pencil or pen
Dry wall knife/saw
Wire strippers
Electric drill (with clutch)
2-inch long #2 Phillips Driver
Tape measure
Push Pin
Depth required above ceiling surface:
6" (15.3cm)
Required ceiling opening (includes tolerance):
11" (28cm)
InstallatIon
12” 30.5cm
10 / ”
3
8 26.4cm
5 /
”
7
8
15cm
6 /
”
1
2
16.6cm
5
8/ ”
1.6 cm

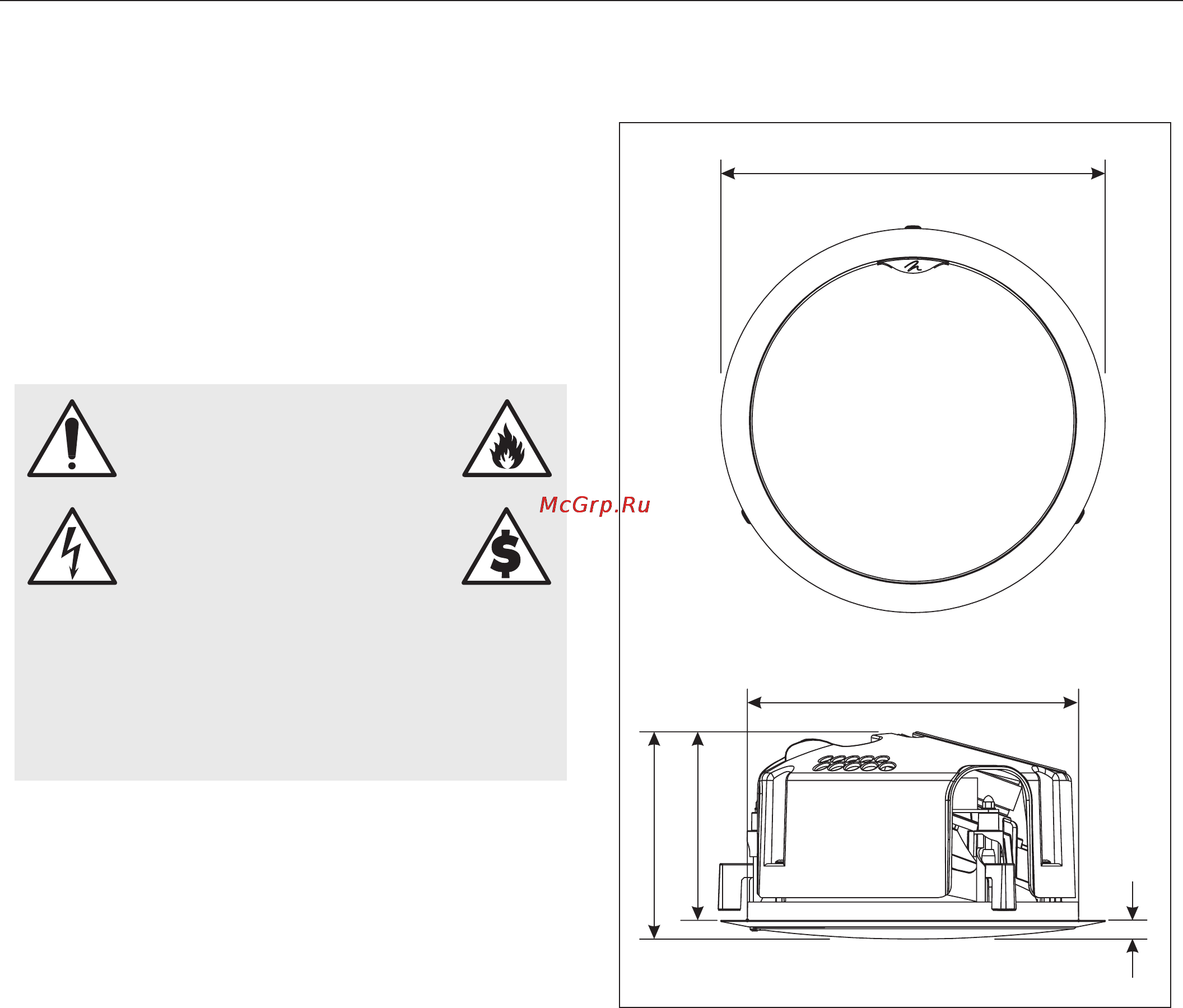

Figure 5. Dimensions of the Helos 100
