6 Installation

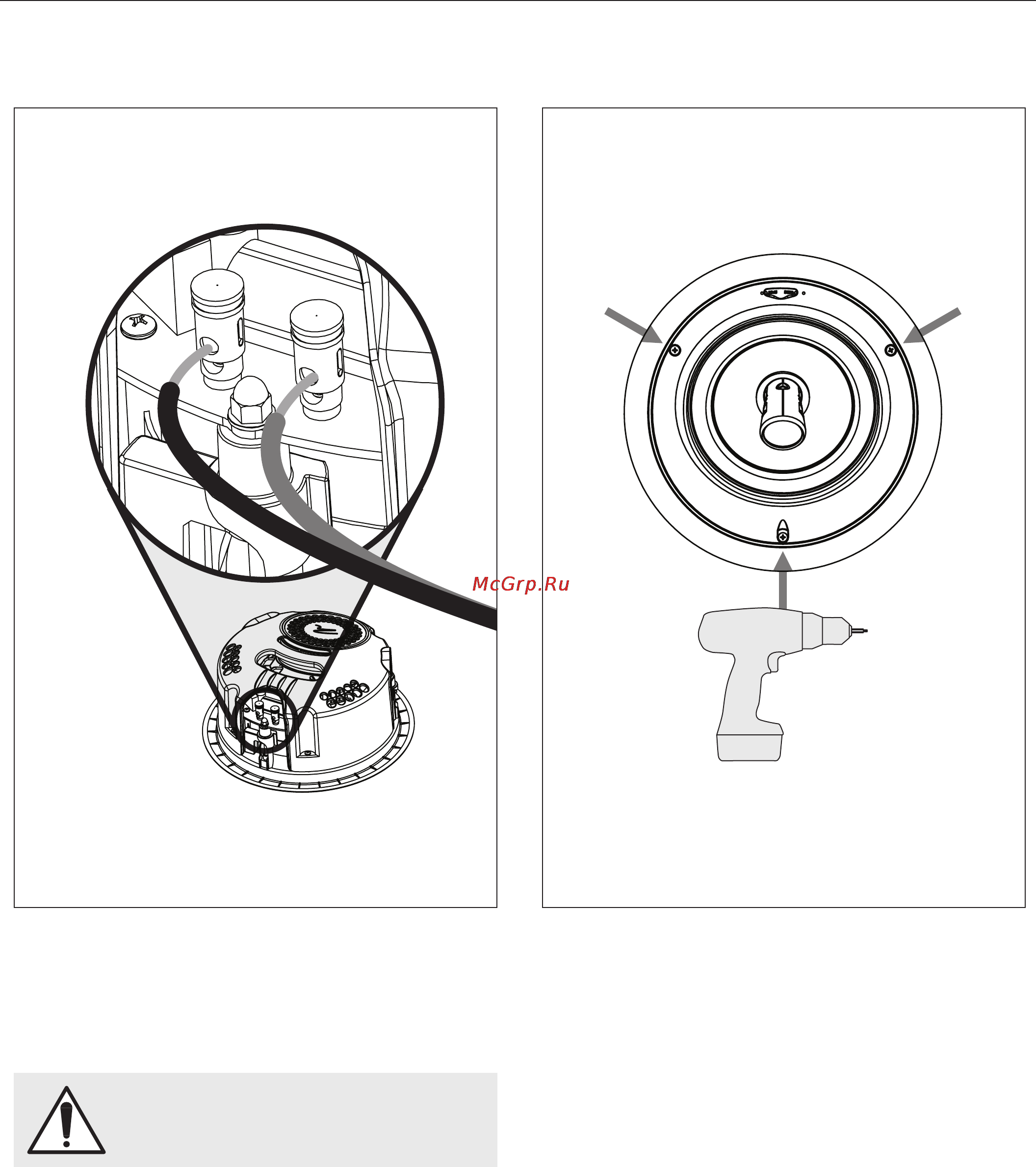

Figure 8. Installation step 5. Figure 9. Installation step 6–7.

5 Connect speaker cable. Be consistent when connecting

speaker leads to the terminals on the Helos 100. Take

great care to assign the same color to the (+) terminal

on both the speaker and the amplifier.

WARNING! Turn your amplifier off before

making or breaking any signal connections!

6 Place speaker in hole.

7 Use a 2-inch long #2 Phillips driver and an electric

drill to lock all 3 mounting locks in place. Use a low

clutch setting on the drill.
