- 4 -

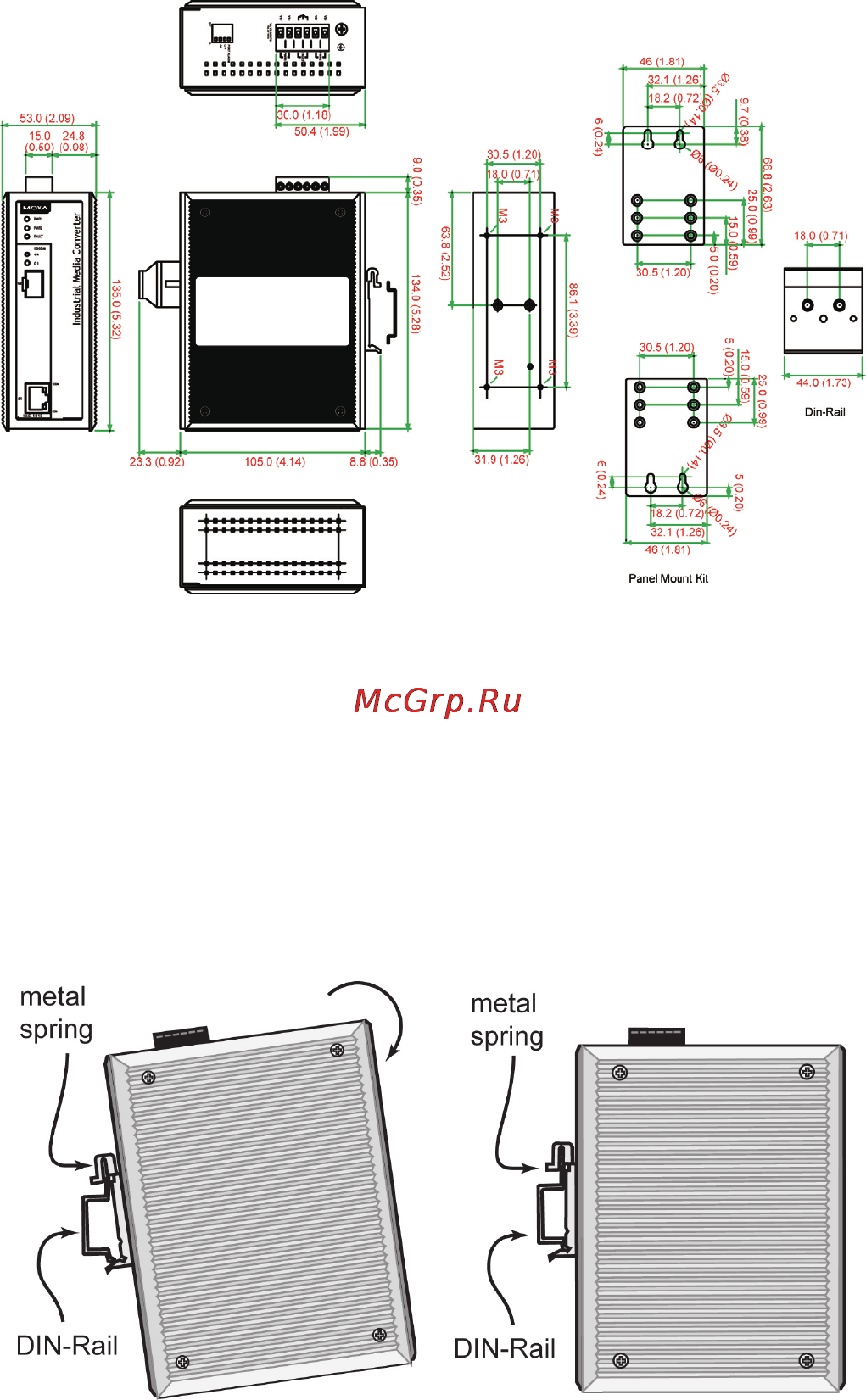

Dimensions (unit = mm)
DIN-Rail Mounting
The aluminum DIN-rail attachment plate should be fixed to the back panel
of the IMC-101G when you take it out of the box. If you need to reattach
the DIN-rail attachment plate to the IMC-101G, make sure the stiff metal
spring is situated towards the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN
-rail into
the slot just below the
stiff metal
spring.
STEP 2:
The DIN
-rail attachment unit will
snap into place as shown below.
To remove the IMC-101G from the DIN rail, reverse steps 1 and 2 above.
