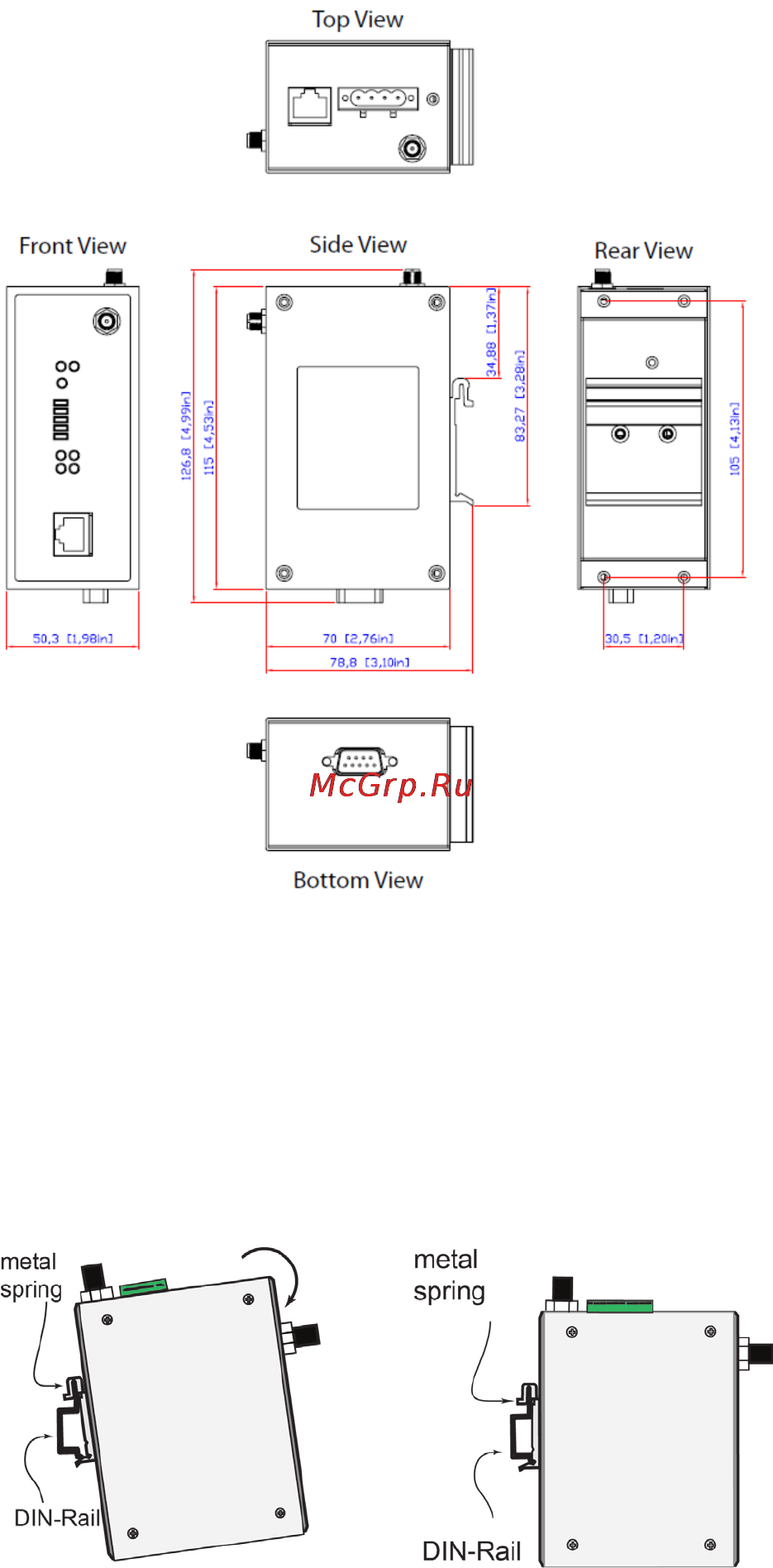

Mounting Dimensions (unit = mm)

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should be fixed to the back panel

of the AWK-1127 when you take it out of the box. If you need to reattach

the DIN-rail attachment plate to the AWK-1127, make sure the stiff metal

spring is situated towards the top, as shown in the figures below.

STEP 1: Insert the top of the

DIN

rail into the slot just below

the stiff metal spring.

STEP 2: The DIN-rail attachment

unit will snap into place as shown

below.

To remove the AWK-1127 from the DIN rail, simply reverse Steps 1 and 2.
