Wall Mounting (optional)

For some applications, it may be more convenient to mount the

AWK-1127 to a wall, as illustrated below:

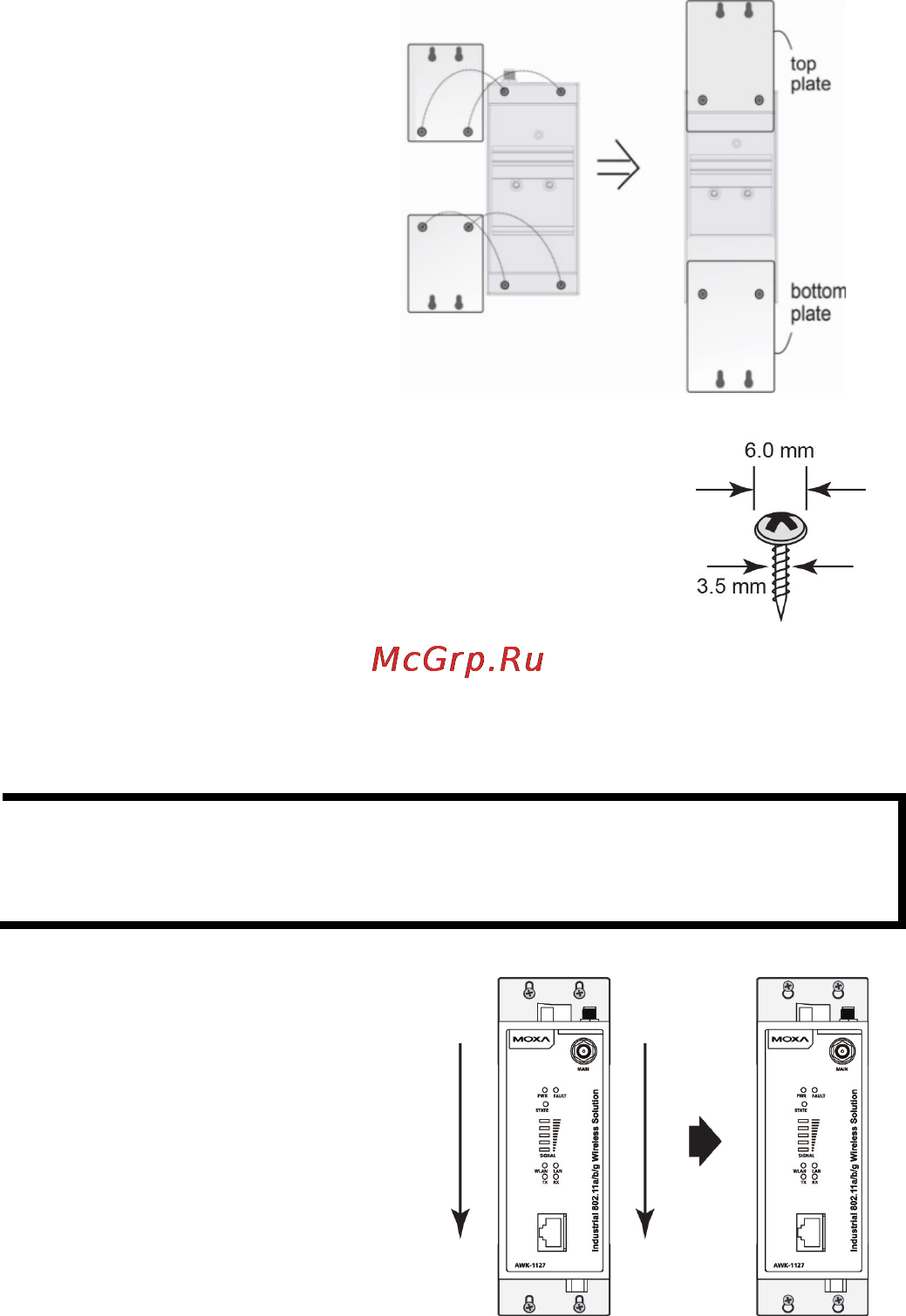

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from the

AWK-1127, and

then attach the

wall mount

plates with M3 screws, as

shown in the adjacent

diagrams.

STEP 2:

Mounting the

AWK-1127 to a wall requires 4 screws.

Use the

AWK-1127 device, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the

shafts should be less

than 3.5 mm in diameter, as shown in the figure at the

right.

Do not drive the screws in all the way into the wall—leave a space of about

2 mm to allow room for sliding the wall-mount panel between the wall and

the screws.

NOTE

Test the screw head and shank size by inserting the screws into

one of the keyhole shaped apertures of the

wall-mounting p

lates

before attaching the plate to the wall.

STEP 3:

Once the screws are fixed into the

wall, insert the four screw heads

through the large opening of the

keyhole

-shaped apertures, and

then slide the

AWK-1127

downwards, as indicated to the

right. Tighten the four screws for

added stability.
