- 8 -

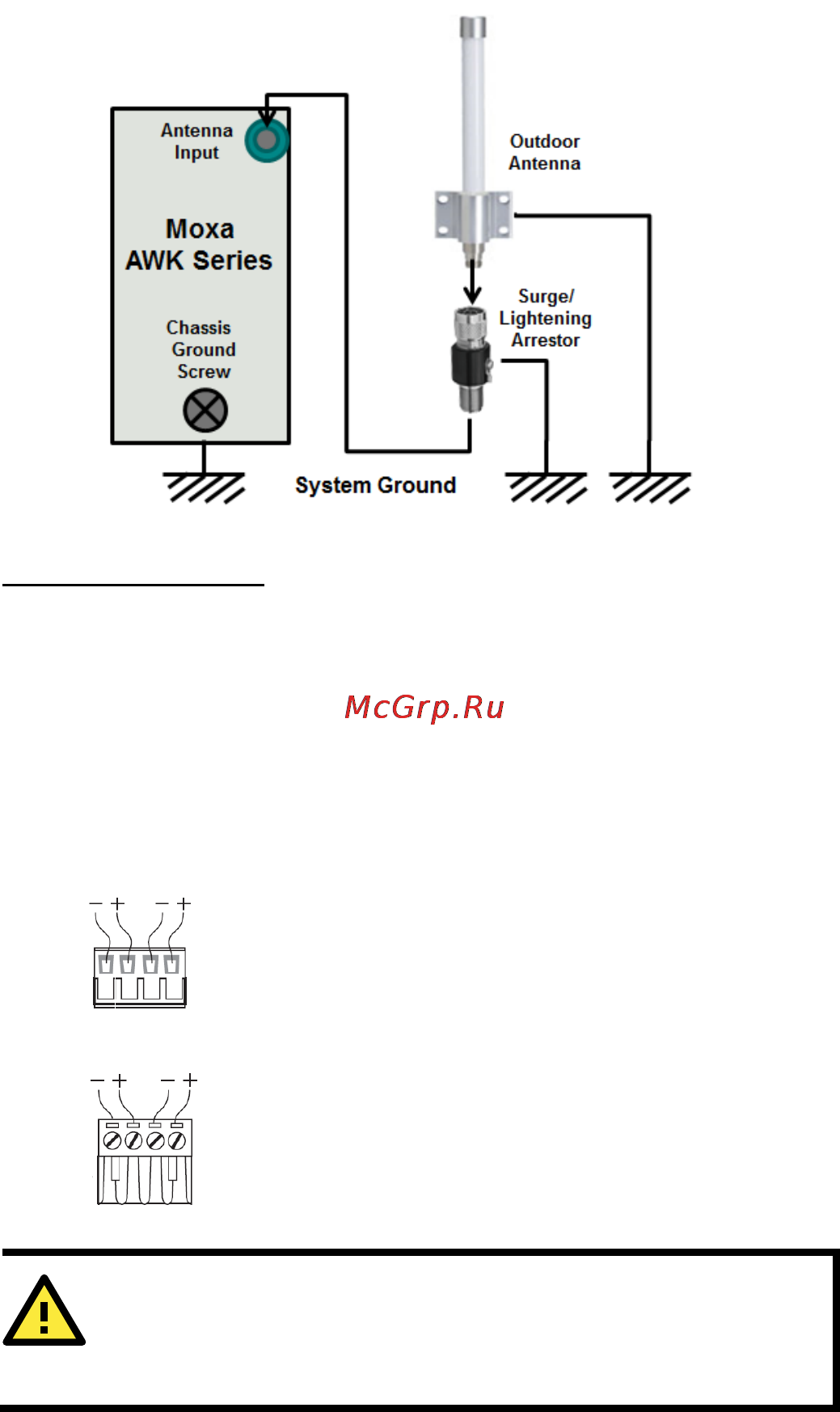

Arrester Accessories

• SA-NMNF-01: Surge arrester, N-type (male) to N-type (female)

• SA-NFNF-01: Surge arrester, N-type (female) to N-type (female)

Wiring the Redundant Power Inputs

The 4-contact terminal block connector on the AWK-1127’s top panel is

used for the AWK-1127’s two DC inputs. The top and front views of the

terminal block connector are shown here.

Top View

Front View

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor,

which is located on the AWK-1127’s t

panel.

ATTENTION

Before connecting the

AWK-1127

to the DC power inputs, make

sure the DC power source voltage is stable.

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-1127’s front panel are

used to connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports.
