AirWorks AWK-1131A Getting Started
2-4

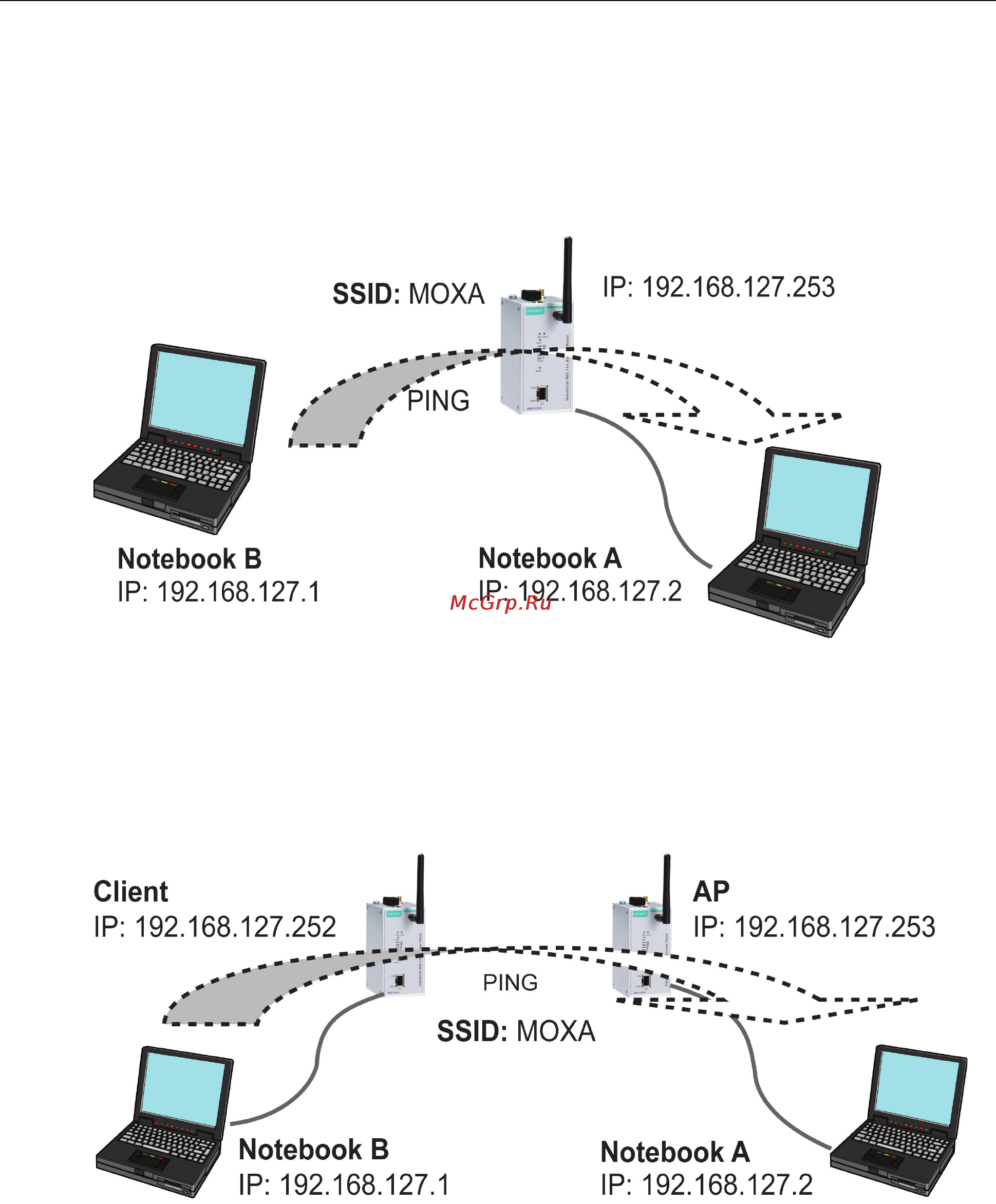

After configuring the WLAN card, establish a wireless connection with the AWK-1131A and open a DOS window
on Notebook B. At the prompt, type
ping <IP address of notebook A>
and then press Enter (see the figure below). A “Reply from IP address …” response means the communication
was successful. A “Request timed out.” response means the communication failed. In this case, recheck the
configuration to make sure the connections are correct.
How to Test Two or More AWK-1131A Units
If you have two or more AWK-1131A units, you will need a second notebook computer (Notebook B) equipped
with an Ethernet port. Use the default settings for the first AWK-1131A connected to notebook A and change
the second or third AWK-1131A connected to notebook B to Client mode, and then configure the notebooks and
AWK-1131A units properly.
After setting up the testing environment, open a DOS window on notebook B. At the prompt, type:
ping <IP address of notebook A>
and then press Enter. A “Reply from IP address …” response means the communication was successful. A
“Request timed out” response means the communication failed. In this case, recheck the configuration to make
sure the connections are correct.
