Moxa AWK-1131A-EU-T [4/21] Panel layout of the awk 1131a

- 4 -

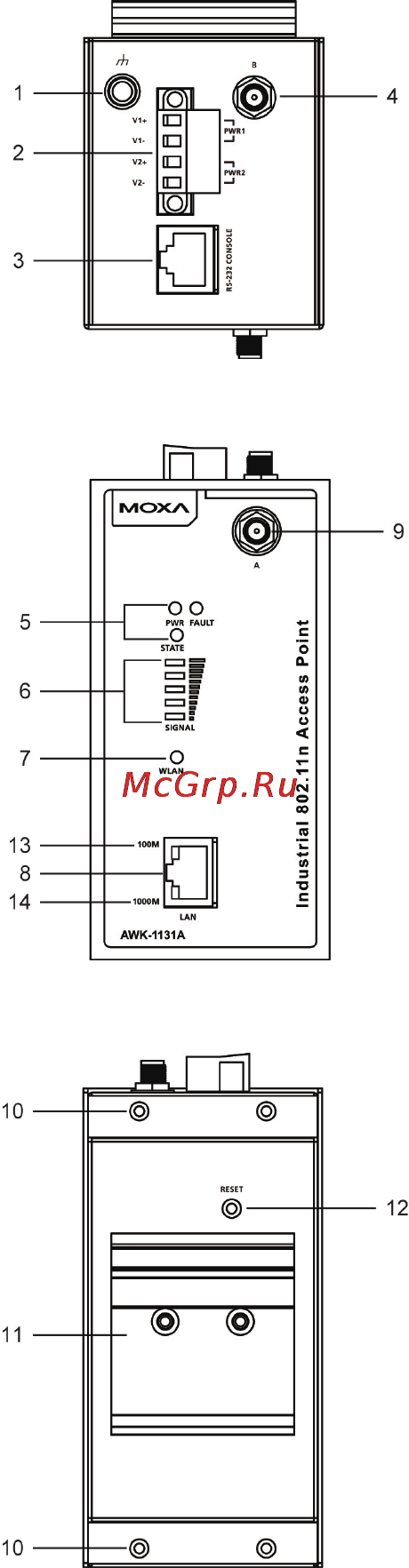

Panel Layout of the AWK-1131A

Top Panel View

Front Panel View

Rear Panel View

1. Grounding screw (M5)

2. Terminal block for PWR1 and

PWR2

3. RS-232 console port

4. Antenna B port

System LEDs: PWR, FAULT, and

STATE LEDs

6. LEDs for signal strength

7. WLAN LEDs

8. 10/100/1000BaseT(X) RJ45

Port

9. Antenna A port

10.

Screw hole for wall-

mounting kit

11.

DIN-rail mounting kit

12.

Reset button

13.

10/100M LED

14.

1000M LED
