- 5 -

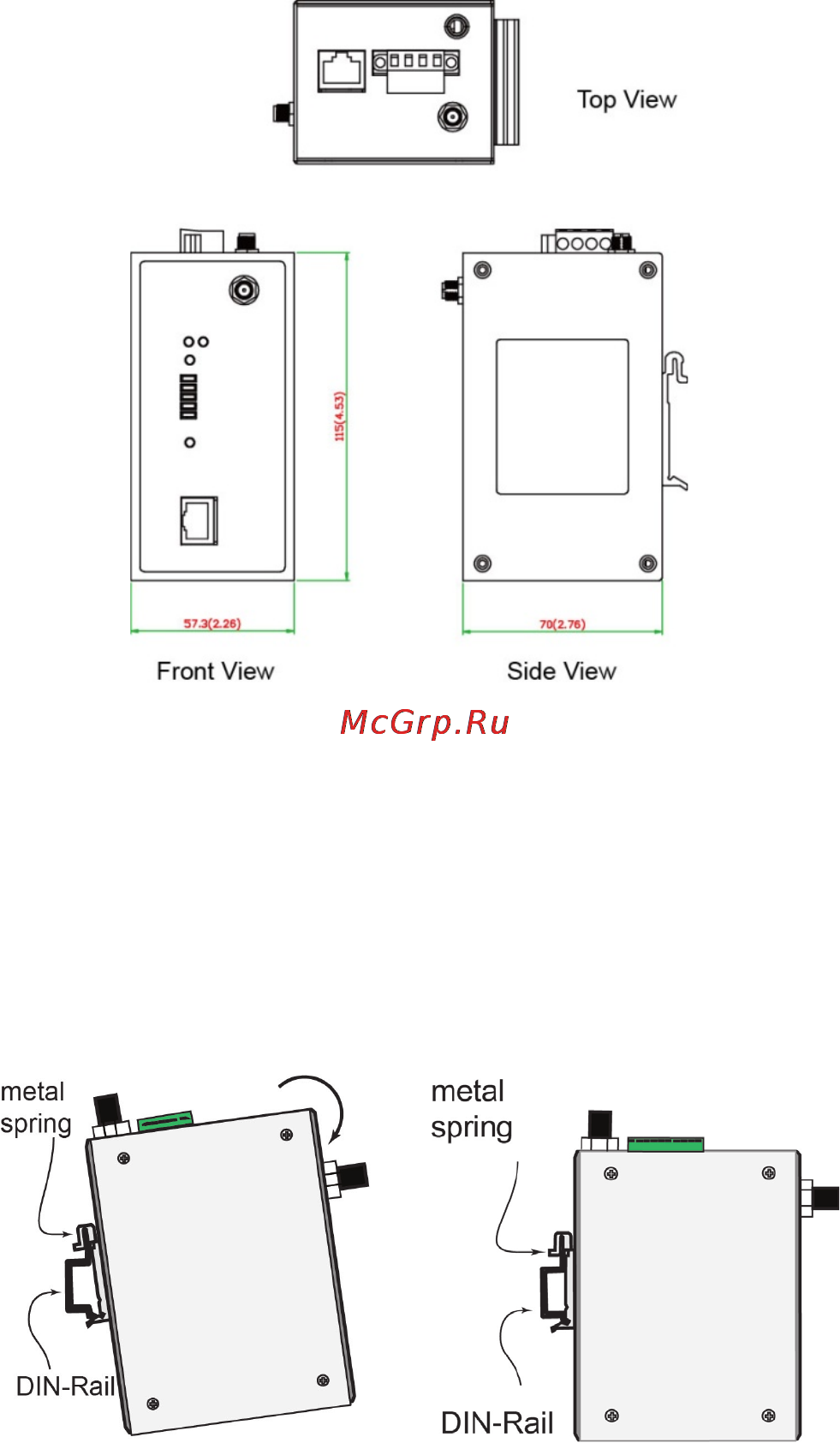

Mounting Dimensions

Unit = mm (inch)

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should be fixed to the back panel

of the AWK-1131A when you take it out of the box. If you need to reattach

the DIN-rail attachment plate to the AWK-1131A, make sure the stiff

metal spring is situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN r

ail into the

slot just below the stiff metal spring.

STEP 2:

The DIN

-rail attachment unit will

snap into place as shown below.

To remove the AWK-1131A from the DIN rail, simply reverse Steps 1 and
