Wall Mounting (optional)
For some applications, it may be more convenient to mount the
AWK-1131A to a wall, as illustrated below.

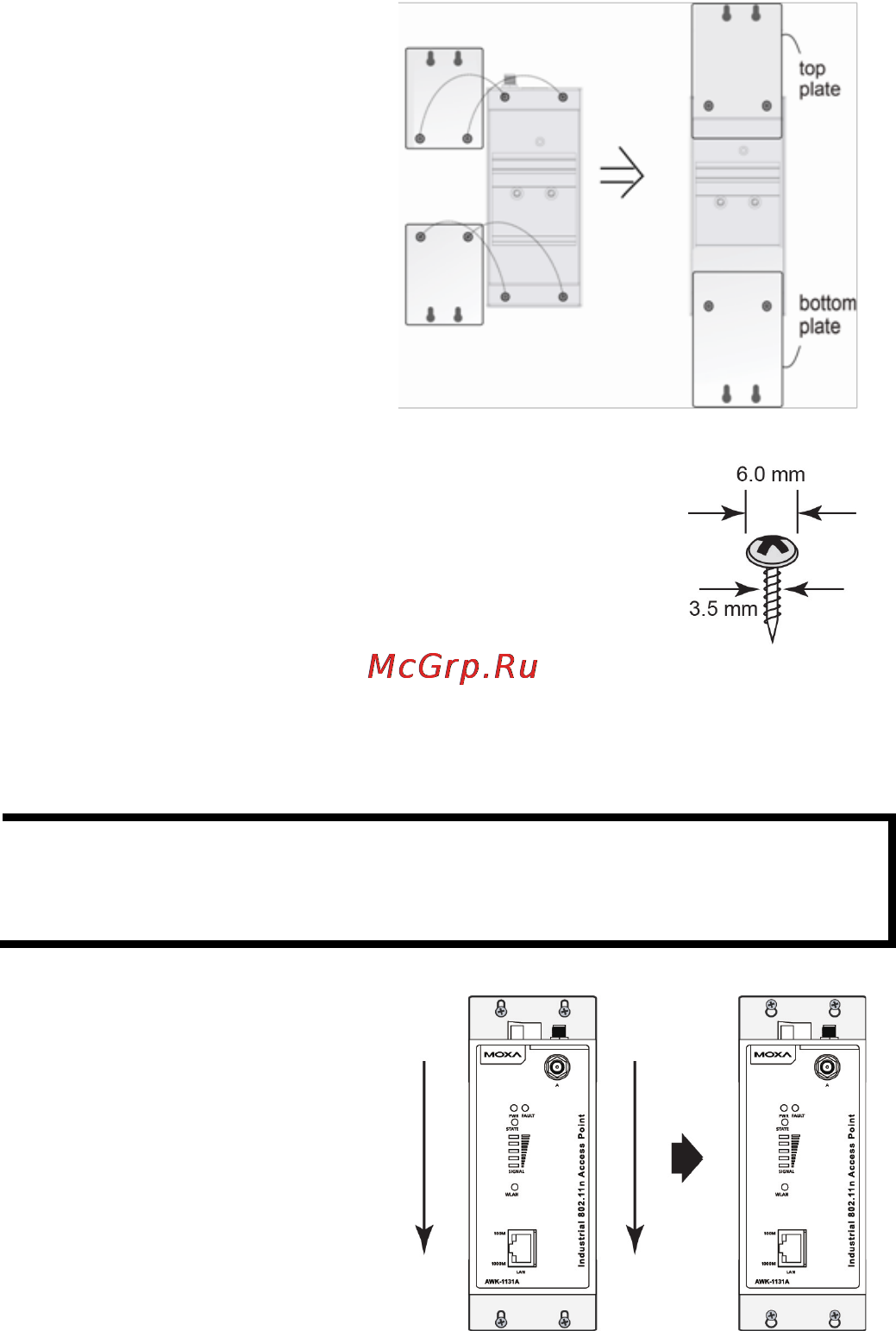

STEP 1:
Remove the aluminum
DIN
-rail attachment plate
from the AWK
-1131A, and
then attach the wall mount
plates with M
3 screws, as
shown in the adjacent
diagrams.
STEP 2:
Mount
ing the AWK-
1131A to a wall requires 4 screws.
Use the AWK
-1131A device, with wall mount plates
attached, as a guide to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the
shafts should be les
s
than 3.5 mm in diameter, as shown in the figure at the
right.
Do not drive the screws in all the way—leave a space of about 2 mm to
allow room for sliding the wall mount panel between the wall and the
screws.
NOTE
Test the screw head and shank size b
y inserting the screws
into
one of the k
eyhole shaped apertures of the wall-mounting p
lates
before attaching the plate to the wall.
STEP 3:
Once the screws are fixed into
the wall, insert the four screw
heads through the large opening
of the keyhole
-shaped
apertures, and then slide the
AWK
-1131A downwards, as
indicated to the right. Tighten
the four screws for added
stability.
