UPort 1200/1400/1600 Series Driver Installation
2-12
Configuring the Ports
After the driver has been installed, use Windows’ Device Manager to configure the UPort serial ports.

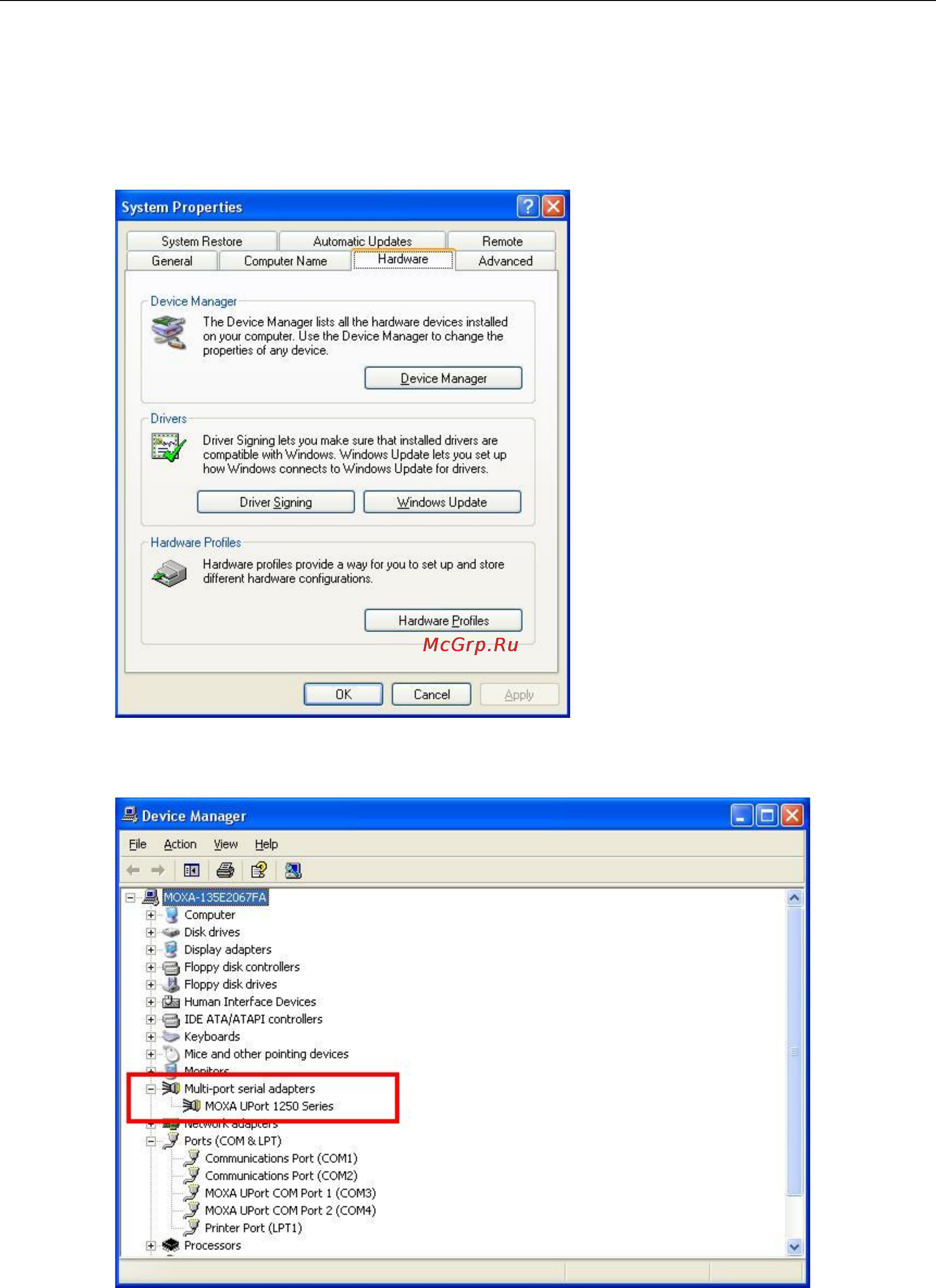

1. With the System Properties window open, click on the Hardware tab, and then click on Device
Manager.
2. Expand the Multi-port serial adapters tab, right click MOXA UPort 1250 Series, and then click
Properties to open the UPort’s configuration panel.
