Moxa UPort 1450 [2/2] Specifications

Industrial USB

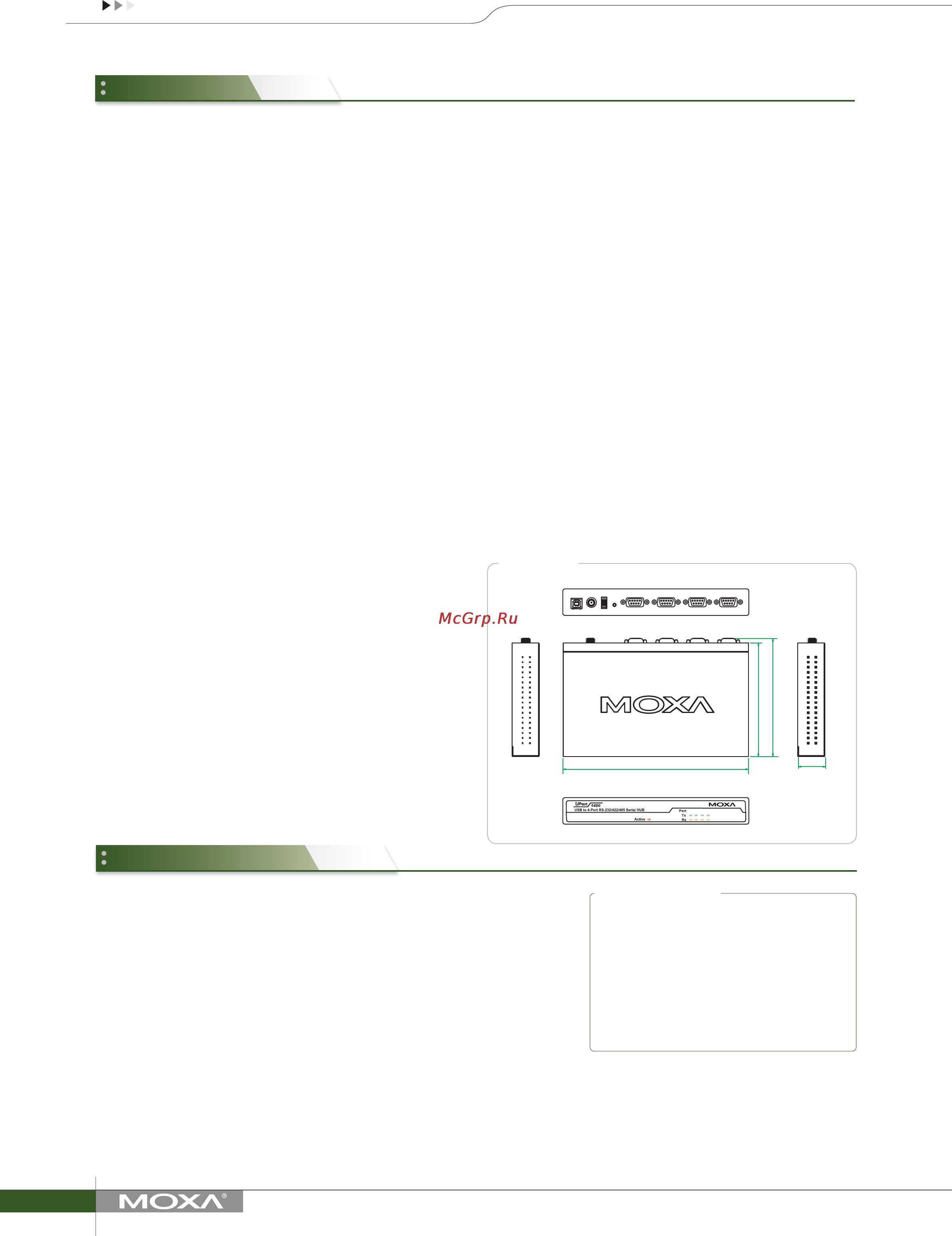

Dimensions

Unit: mm (inch)

204 (8.03)

125 (4.92)

129.8 (5.11)

30 (1.18)

Speciﬁcations

Ordering Information

Available Models

UPort 1410: 4-port RS-232 USB-to-serial converter

UPort 1450: 4-port RS-232/422/485 USB-to-serial converter, adapter included

UPort 1450I: 4-port RS-232/422/485 USB-to-serial converter with 2 kV electrical isolation,

adapter included

Optional Accessories (can be purchased separately)

Mini DB9F-to-TB Adapter: DB9 female to terminal block adapter for RS-422/485 applications

Wall Mount Kit: Metal plates and screws

DK35A: Mounting kit for 35-mm DIN-Rail

DIN-Rail Kit: DIN-Rail kit for the UPort 1400 series

Power adapters (can be purchased separately)

PWR-12125-DT-S2: 100-240 VAC to 12 VDC @ 1.25 A power adapter

PWC-C7US-2B-183: US plug, 2-pin power cord

PWC-C7UK-2B-183: UK plug, 2-pin power cord

PWC-C7EU-2B-183: EU plug, 2-pin power cord

PWC-C7JP-2B-183: JP plug, 2-pin power cord

PWC-C7AU-2B-183: SAA plug, 2-pin power cord

Package Checklist

• 1 UPort 1400 USB-to-serial converter

• USB-IF certiﬁed cable

• 1 mini DB9 female to terminal block adapter

(UPort 1450 and 1450I only)

• Power adapter (UPort 1450 and 1450I only)

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card

USB Interface

Compliance: USB 1.1/2.0 compliant

Connector: USB type B

Speed: 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Serial Interface

Number of Ports: 4

Serial Standards:

UPort 1410: RS-232

UPort 1450/1450I: RS-232/422/485

Connector: DB9 male

Electrical Isolation: 2 kV (UPort 1450I only)

Performance

Baudrate: 50 bps to 921.6 kbps (including 500 kbps)

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS, XON/XOFF

FIFO: 128 bytes

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

RS-485-2w: Data+(B), Data-(A), GND

RS-485 Data Direction: ADDC® (Automatic Data Direction Control)

Operating Systems

Windows Real COM Drivers: Windows 2000, Windows XP/2003/

Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows

Embedded CE 5.0/6.0

Linux Real TTY Drivers: Linux 2.6.x, 3.x

Note: Please refer to Moxa’s website for the latest driver support information.

Physical Characteristics

Housing: SECC sheet metal (1 mm)

Weight:

Product only: 720 g (1.59 lb)

Packaged: 1345 g (2.96 lb)

Dimensions: 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)

Storage Temperature: -20 to 75°C (-4 to 167°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Altitude: Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to function

properly at higher altitudes.

Standards and Certiﬁcations

Safety: UL 60950-1

EMC: CE, FCC

EMI: EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15

Subpart B Class A

EMS: EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN

61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Green Product: RoHS, CRoHS, WEEE

Power Requirements

Power Consumption:

•Buspower:

UPort 1410: 385 mA @ 5 VDC

•12to48VDCexternalpower:

UPort 1410: 180 mA @ 12 VDC

UPort 1450: 260 mA @ 12 VDC

UPort 1450I: 360 mA @ 12 VDC

MTBF (mean time between failures)

Time:

UPort 1410: 394,441 hrs

UPort 1450: 546,770 hrs

Database:

UPort 1410: MIL-HDBK-217F

UPort 1450: Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty
