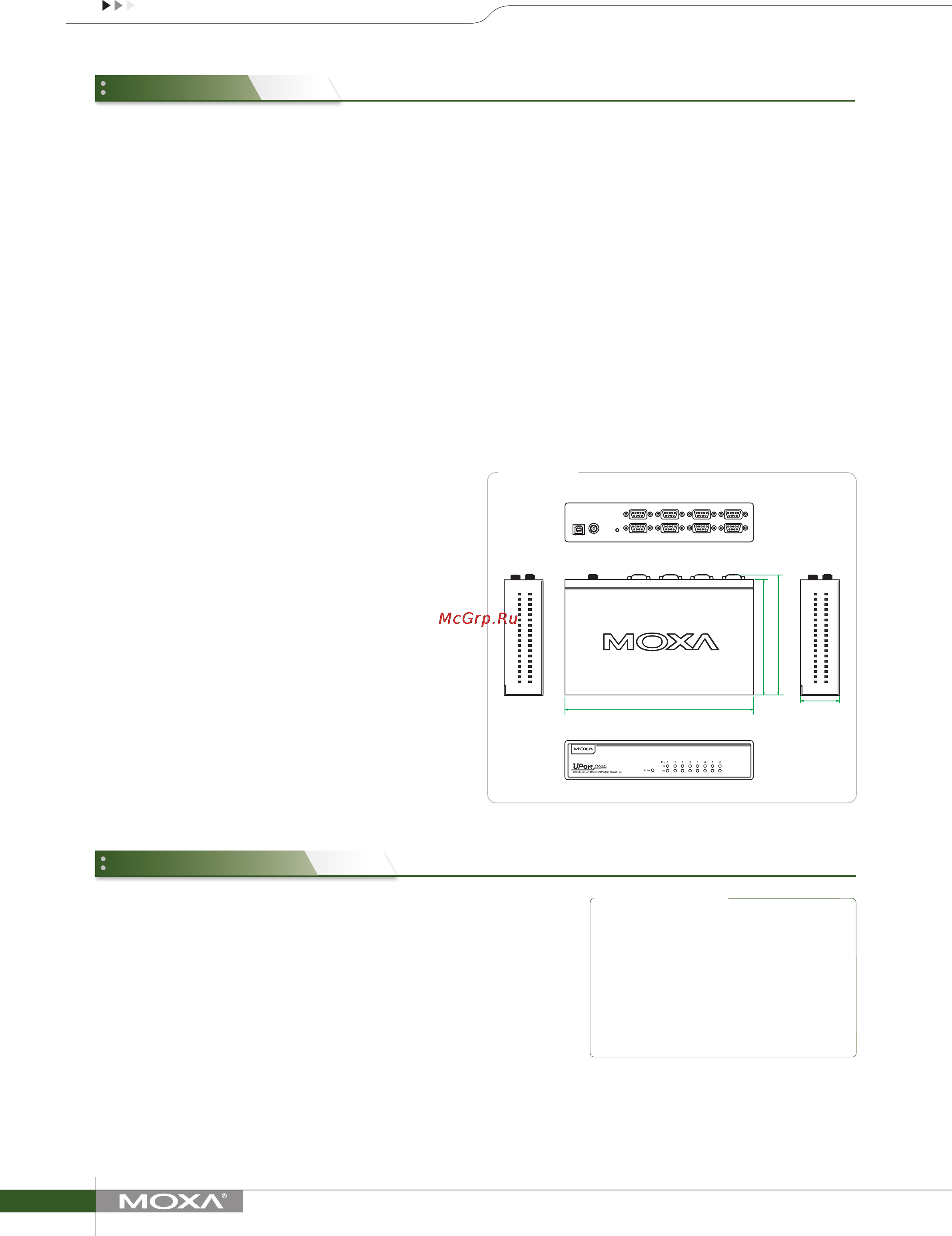

Dimensions
Unit: mm (inch)
204 (8.03)
125 (4.92)
129.8 (5.11)
44 (1.73)
Specifications
Ordering Information
Available Models
UPort 1610-8: 8-port RS-232 USB-to-serial converter, adapter included
UPort 1650-8: 8-port RS-232/422/485 USB-to-serial converter, adapter included
Optional Accessories (can be purchased separately)
Mini DB9F-to-TB Adapter: DB9 female to terminal block adapter for RS-422/485 applications
Wall Mount Kit: Metal plates and screws
DK35A: Mounting kit for 35-mm DIN-Rail
DIN-Rail Kit: DIN-Rail kit for the UPort 1600-8 series
Package Checklist
• 1 UPort 1600-8 USB-to-serial converter
• USB-IF certified cable
• Power adapter
• 1 mini DB9 female to terminal block adapter
(UPort 1650-8 only)
• Documentation and software CD
• Quick installation guide (printed)
• Warranty card
USB Interface
Compliance: USB 1.1/2.0 compliant
Connector: USB type B
Speed: 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
Serial Interface
Number of Ports: 8
Serial Standards:
UPort 1610-8: RS-232
UPort 1650-8: RS-232/422/485
Connector: DB9 male
Performance
Baudrate: 50 bps to 921.6 kbps (including 500 kbps)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
FIFO: 128 bytes
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
RS-485 Data Direction: ADDC® (Automatic Data Direction Control)
Operating Systems
Windows Real COM Drivers: Windows 2000, Windows XP/2003/
Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows
Embedded CE 5.0/6.0
Linux Real TTY Drivers: Linux 2.6.x, 3.x
Note: Please refer to Moxa’s website for the latest driver support information.
Physical Characteristics
Housing: SECC sheet metal (1 mm)
Weight:
Product only: 835 g (1.84 lb)
Packaged: 1435 g (3.16 lb)
Dimensions: 204 x 44 x 125 mm (8.03 x 1.73 x 4.92 in)
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function
properly at higher altitudes.
Standards and Certifications
Safety: UL 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15
Subpart B Class A
EMS: EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN
61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Green Product: RoHS, CRoHS, WEEE
Power Requirements
Power Consumption:
UPort 1610-8 (12 to 48 VDC external power): 230 mA @ 12 VDC
UPort 1650-8 (12 to 48 VDC external power): 340 mA @ 12 VDC
MTBF (mean time between failures)
Time:
UPort 1610-8: 208,413 hrs
UPort 1650-8: 186,567 hrs
Database: MIL-HDBK-217F
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
