two essential features to make it easy: (1) One-Click Installation
automatically analyzes the network topology and then adjusts
terminators and pull high/low resistors. (2) One-Click Troubleshooting
tells you what to change to make a deficient network viable.
Setting up an RS-485 network is relatively straightforward. The
challenge comes when the power is turned on and the devices
connected to the network start transmitting and receiving data. In most
cases, engineers will need to further tune the system by configuring
pull high/low resistors and terminators at strategic points along
the network. Moxa’s new Intelligent RS-485 technology supports

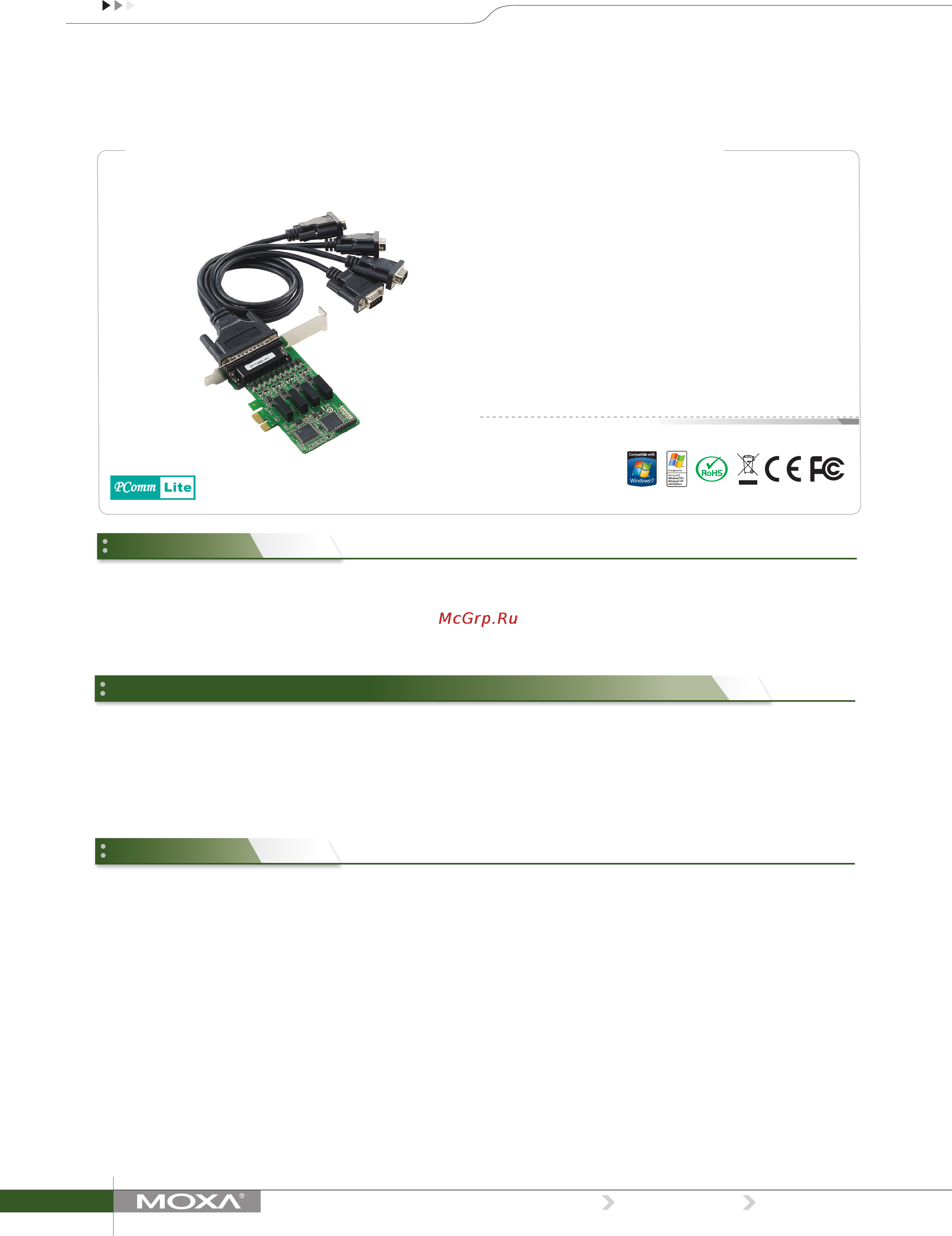

CP-134EL-A-I
4-port RS-422/485 PCI Express board with 4 kV surge and 2 kV
electrical isolation
The CP-134EL-A-I is a smart PCI Express multiport serial board
designed for POS and ATM applications, and for use by industrial
automation system manufacturers and system integrators. The
CP-134EL-A-I is compatible with all popular operating systems, and
each of its 8 serial ports supports data rates of up to 921.6 kbps, and
provides full modem control signals, ensuring compatibility with a
wide range of serial peripherals. In addition, the CP-134EL-A-I works
with PCI Express x1, allowing the board to be installed in any PCI
Express slot.
Specifications
Overview
› PCI Express x1 compliant
› Serial communication speed up to 921.6 kbps
› 128-byte FIFO and on-chip S/W flow control
› Variety of connection cables and boxes available for RS-
232/422/485
› Drivers provided for the latest versions of Windows, Linux, and
Unix
› Easy maintenance with on-board LED display and management
software
› 15 kV ESD, 4 kV surge, and 2 kV electrical isolation onboard
Hardware
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: DB44 female
Serial Interface
Number of Ports: 4
Serial Standards: RS-422/485
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 kV on the board
Surge Protection: 4 kV
Electrical Isolation: 2 kV
Performance
Baudrate: 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
Operating Systems
Windows Real COM Drivers: Windows 2000/XP/2003/
Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64)
Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
(x86/x64)
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Note: Please refer to Moxa’s website for the latest driver support information.
Intelligent RS-485 for Easy Installation and Troubleshooting (Patent Pending)
1
www.moxa.com
