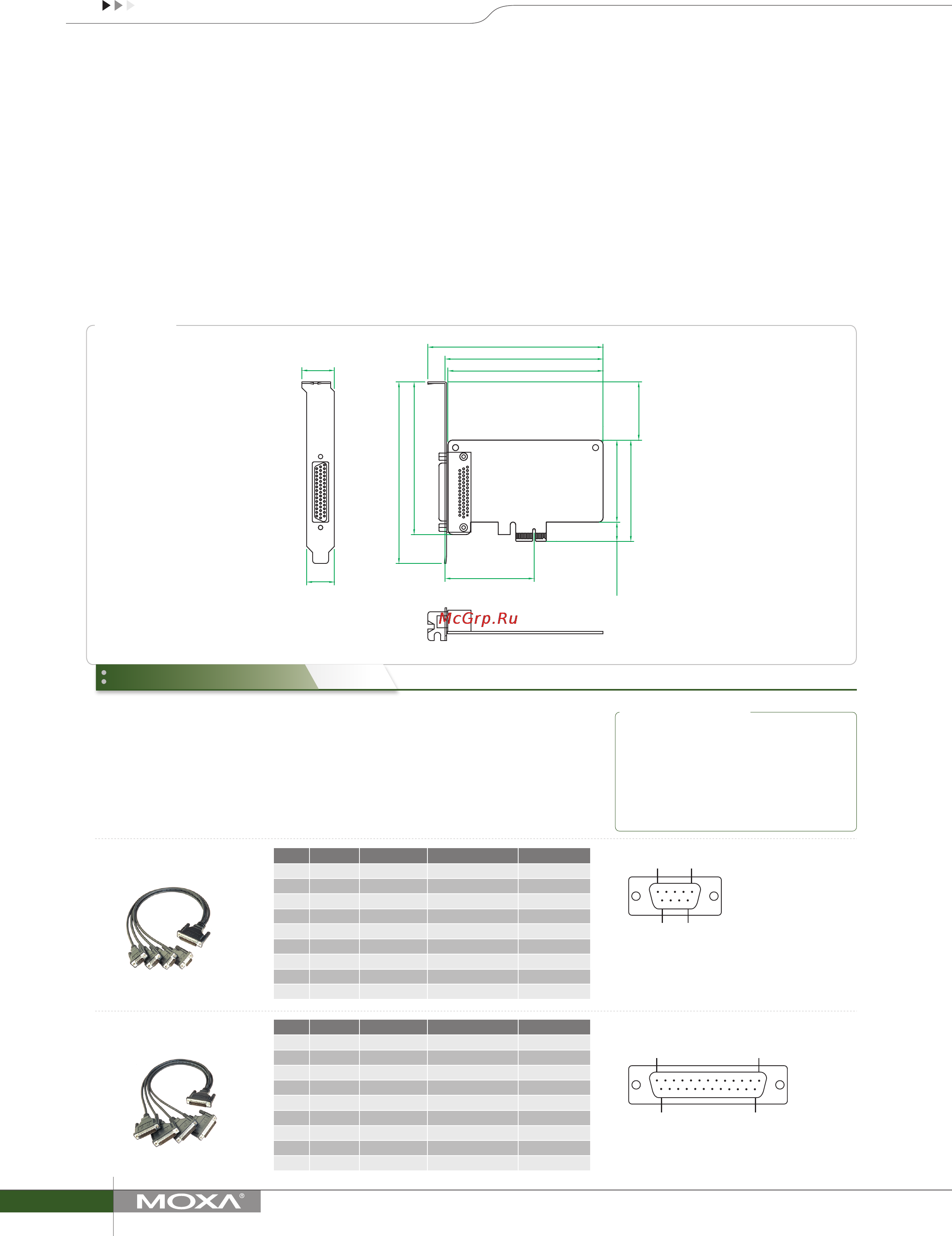

Moxa CP-134EL-A-I-DB25M [2/2] Ordering information

Dimensions

Unit: mm (inch)

14 25

6 9

CBL-M44M9x4-50

DB44 male to DB9 male x 4

(50 cm cable)

DB9 male

DB25 male

CBL-M44M25x4-50

DB44 male to DB25 male x 4

(50 cm cable)

PIN RS-232 RS-422 RS-485-4w RS-485-2w

1 DCD TxD–(A) TxD–(A) –

2 RxD TxD+(B) TxD+(B) –

3 TxD RxD+(B) RxD+(B) Data+(B)

4 DTR RxD–(A) RxD–(A) Data–(A)

5 GND GND GND GND

6 DSR – – –

7 RTS – – –

8 CTS – – –

9 – – – –

PIN RS-232 RS-422 RS-485-4w RS-485-2w

2 TxD RxD+(B) RxD+(B) Data+(B)

3 RxD TxD+(B) TxD+(B) –

4 RTS – – –

5 CTS – – –

6 DSR – – –

7 GND GND GND GND

8 DCD TxD–(A) TxD–(A) –

20 DTR RxD–(A) RxD–(A) Data–(A)

22 – – – –

Ordering Information

18.42 (0.725)

21.59 (0.850)

67.21 (2.646)

120.52 (4.745)

54.45 (2.144)

101.34 (3.990)

12.76 (0.502)

59.06 (2.325)

38.63 (1.521)

104.93 (4.131)

116.36 (4.581)

103 (4.055)

Physical Characteristics

Dimensions: 67.2 x 103 mm (2.69 x 4.06 in)

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)

Storage Temperature: -20 to 85°C (-4 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Altitude: Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to function

properly at higher altitudes.

Standards and Certiﬁcations

EMC: CE, FCC

EMI: EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B

Class B

EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC

61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)

Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 433,077 hrs

Database: Telcordia (Bellcore), GB

Power Requirements

Power Consumption: 3,414 mA @ 3.3 V

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

Available Models

CP-134EL-A-I: 4-port RS-422/485 low proﬁle PCI Express x1 serial board w/ surge protection and

electrical isolation

CP-134EL-A-I-DB9M: 4-port RS-422/485 low proﬁle PCI Express x1 serial board w/ surge protection

and electrical isolation, includes DB9 male cable

CP-134EL-A-I-DB25M: 4-port RS-422/485 low proﬁle PCI Express x1 serial board w/ surge

protection and electrical isolation, includes DB25 male cable

Package Checklist

• 1 CP-134EL-A-I board

• Standard bracket and low proﬁle bracket

• Some models include DB9 or DB25 cable

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card
