Windows 95/98 Driver Installation
1. After powering on your PC, Windows 95/98 will automatically detect
the CP-132UL board.
2. Insert the CP-132UL software CD in your CD-ROM drive.
3. There are some differences between the installation procedures for
Windows 95 and Windows 98. However, in both cases, be sure to
install the driver from the CD’s
CP-132UL v2\Software\Win9x\Windows.95 folder.
4. After the board has been installed, the installation wizard will open
the port configuration window.
NOTE: If an error message similar to “CP-132UL board (BusNo=x,
DevNo=x, Port1=COMx) interrupt number is invalid!” pops up, refer
to the “Troubleshooting” chapter of the User’s Manual for
information on how to handle this error.
Windows NT Driver Installation
1. After powering on your PC, log into NT as Administrator.
2. Copy the folder CP-132UL v2\Software\WinNT\Windows.nt to
your hard drive.
3. Open the Control Panel, click on the Network icon, and select the
Adaptors tab.
4. Click the Add button, and then Have Disk… in the Select Network
Adapter window.
5. Specify the exact path to the folder created in Step 2 above.
6. Select MOXA Smartio/Industio Family multiport board in the
Select OEM Option window, and then click on OK to start installing
the driver.
7. When the Moxa Smartio/Industio Configuration Panel dialog box
appears, click on Add to open the Property window to modify port
settings and advanced FIFO configuration done automatically by the
system.
Linux Driver Installation
1. Execute the following commands from the Linux prompt:
#mount /dev/cdrom /mnt/cdrom
#cd /
#mkdir moxa
#cd moxa
#cp /mnt/cdrom/<driver directory>/mxser.tgz .
#tar xvfz mxser.tgz
2. #cd mxser
#make clean; make install
3. #cd /moxa/mxser/driver
#./msmknod
4. #modprobe mxser
5.
Use the Moxa diagnostic utility to verify the driver status:
#cd /moxa/mxser/utility/diag
#./msdiag
6. Use the Moxa terminal utility to test the tty ports:
#cd /moxa/mxser/utility/term
#./msterm

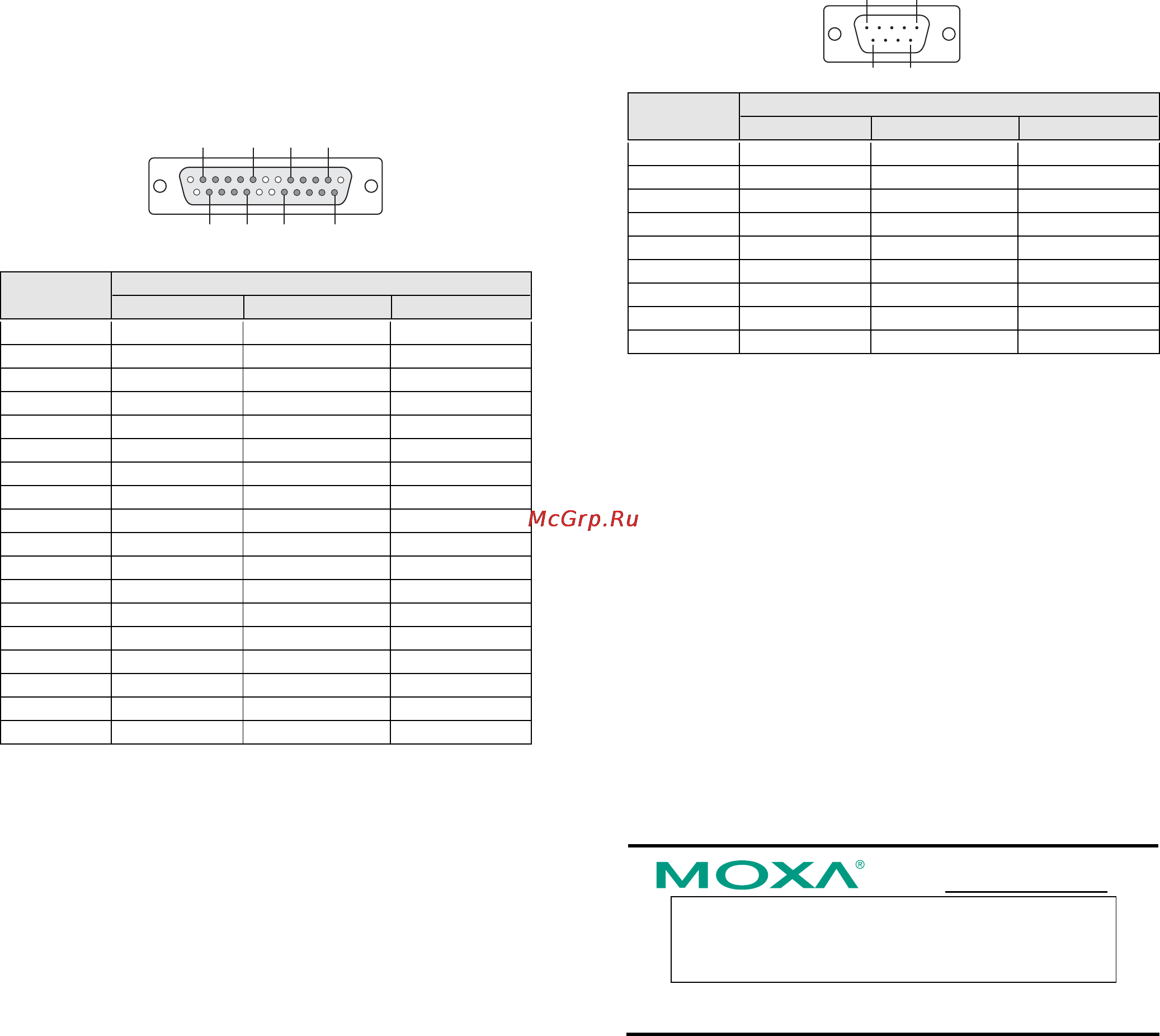

5. Pin Assignments
The CP-132UL board has a female DB25 connector on the board. In this
section, we give the on-board connector’s pin assignments to facilitate
making your own connection cable, and the male DB9 device-side pin
assignments for the optional CBL-M25M9x2-50 cable.
Female DB25: Board-side Pin Assignments
812
Port 1
Port 2
2
5
24 21 1418
Pin
Number
Transmission Signals
RS-422 4-wire RS-485 2-wire RS-485
2 P2: TxD-(A) P2: TxD-(A) ---
3 P2: SGND --- ---
4 P2: CTS+(B) --- ---
5 P2: TxD+(B) P2: TxD+(B) ---
8 P1: CTS-(A) --- ---
9 P1: RxD-(A) P1: RxD-(A) P1: Data-(A)
10 P1: RTS-(A) --- ---
11 P1: RTS+(B) --- ---
12 P1: RxD+(B) P1: RxD+(B) P1: Data+(B)
14 P2: CTS-(A) --- ---
15 P2: RxD-(A) P2: RxD-(A) P2: Data-(A)
16 P2: RTS-(A) --- ---
17 P2: RTS+(B) --- ---
18 P2: RxD+(B) P2: RxD+(B) P2: Data+(B)
21 P1: TxD-(A) P1: TxD-(A) ---
22 P1: SGND --- ---
23 P1: CTS+(B) --- ---
24 P1: TxD+(B) P1: TxD+(B) ---
Male DB9 Connector: Device-side Pin Assignments
15
69
Pin
Number
Transmission Signals
RS-422 4-wire RS-485 2-wire RS-485
1 TxD-(A) TxD-(A) ---
2 TxD+(B) TxD+(B) ---
3 RxD+(B) RxD+(B) Data+(B)
4 RxD-(A) RxD-(A) Data-(A)
5 GND GND GND
6 RTS-(A) --- ---
7 RTS+(B) --- ---
8 CTS+(B) --- ---
9 CTS-(A) --- ---
