Moxa CP-132UL-I-DB9M [2/2] Ordering information

Multiport Serial Boards

2

© Moxa Inc. All rights reserved. Updated Apr. 15, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.

CP-132UL-ICP-132UL

CBL-M25M9x2-50

DB25 male to DB9 male x 2

(50 cm cable)

PIN RS-422 RS-485-4w RS-485-2w

1 TxD-(A) TxD-(A) –

8 CTS+(B) – –

9 CTS-(A) – –

DB9 male

Ordering Information

Available Models

CP-132UL-DB9M: 2-port RS-422/485 low profile Universal PCI serial board, 0 to 55°C operating

temperature (CBL-M25M9x2-50 cable included)

CP-132UL-I-DB9M: 2-port RS-422/485 low profile Universal PCI serial board with electrical isolation, 0 to

55°C operating temperature (CBL-M25M9x2-50 cable included)

CP-132UL-T: 2-port RS-422/485 low profile Universal PCI serial board, -40°C to 85 operating temperature

RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

RS-485-2w: Data+(B), Data-(A), GND

Physical Characteristics

Dimensions:

CP-132UL: 64.4 x 120 mm (2.53 x 4.72 in)

Unix-like Systems: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10,

FreeBSD

Note: Please refer to Moxa’s website for the latest driver support information.

Environmental Limits

Operating Temperature:

Standard Models: 0 to 55°C (32 to 131°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55022/24

EMI: CISPR 22, FCC Part 15B Class B

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

MTBF (mean time between failures)

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

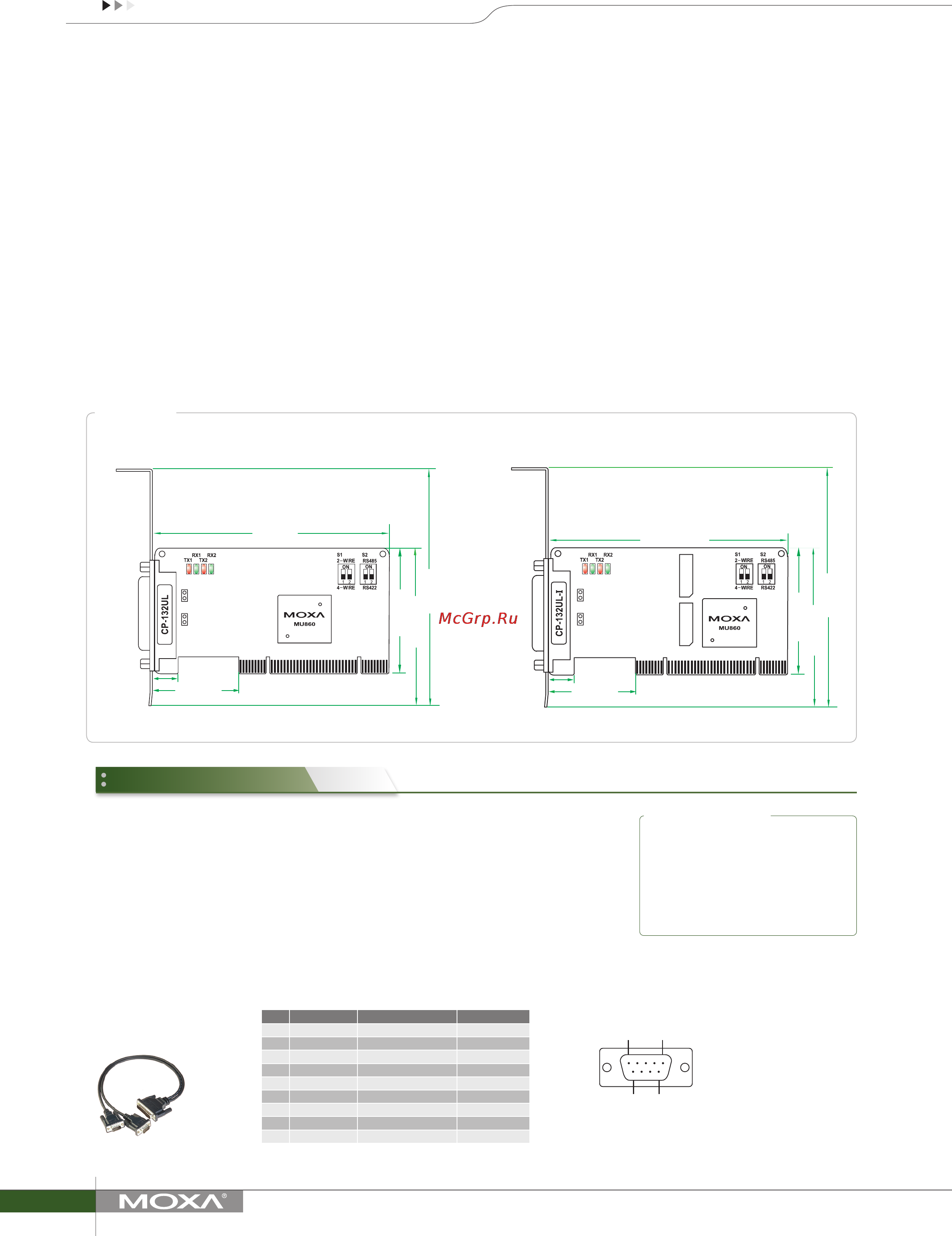

Dimensions

120 (4.72)

64.4 (2.53)
