V2201 Series Hardware Hardware Connection Description
3-2
Installing the V2201

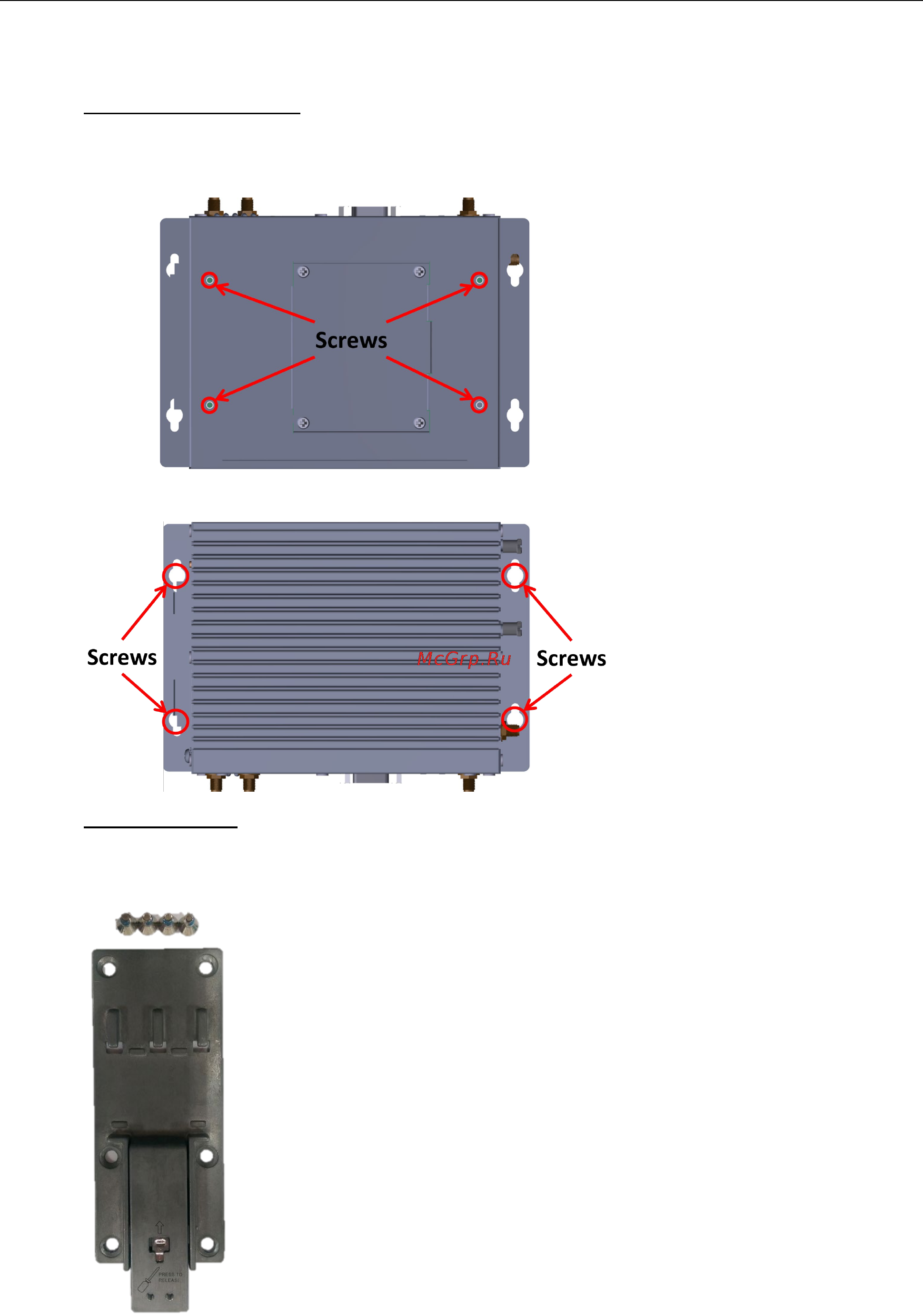

Wall or Cabinet Mounting
The V2201 comes with two metal brackets for attaching it to a wall or the inside of a cabinet.
Step 1: Use two screws for each bracket and attach the brackets to the rear of the V2201.
Step 2: Use four screws per side to attach the V2201 to a wall or cabinet.
Din-Rail Mounting
The V2201 can be installed on a DIN-rail with the optional DIN-rail kit. This DIN-rail kit must be purchased
separately. The DIN-rail kit includes one DIN-rail bracket and four screws.
