V2201 Series Hardware BIOS Setup
4-9

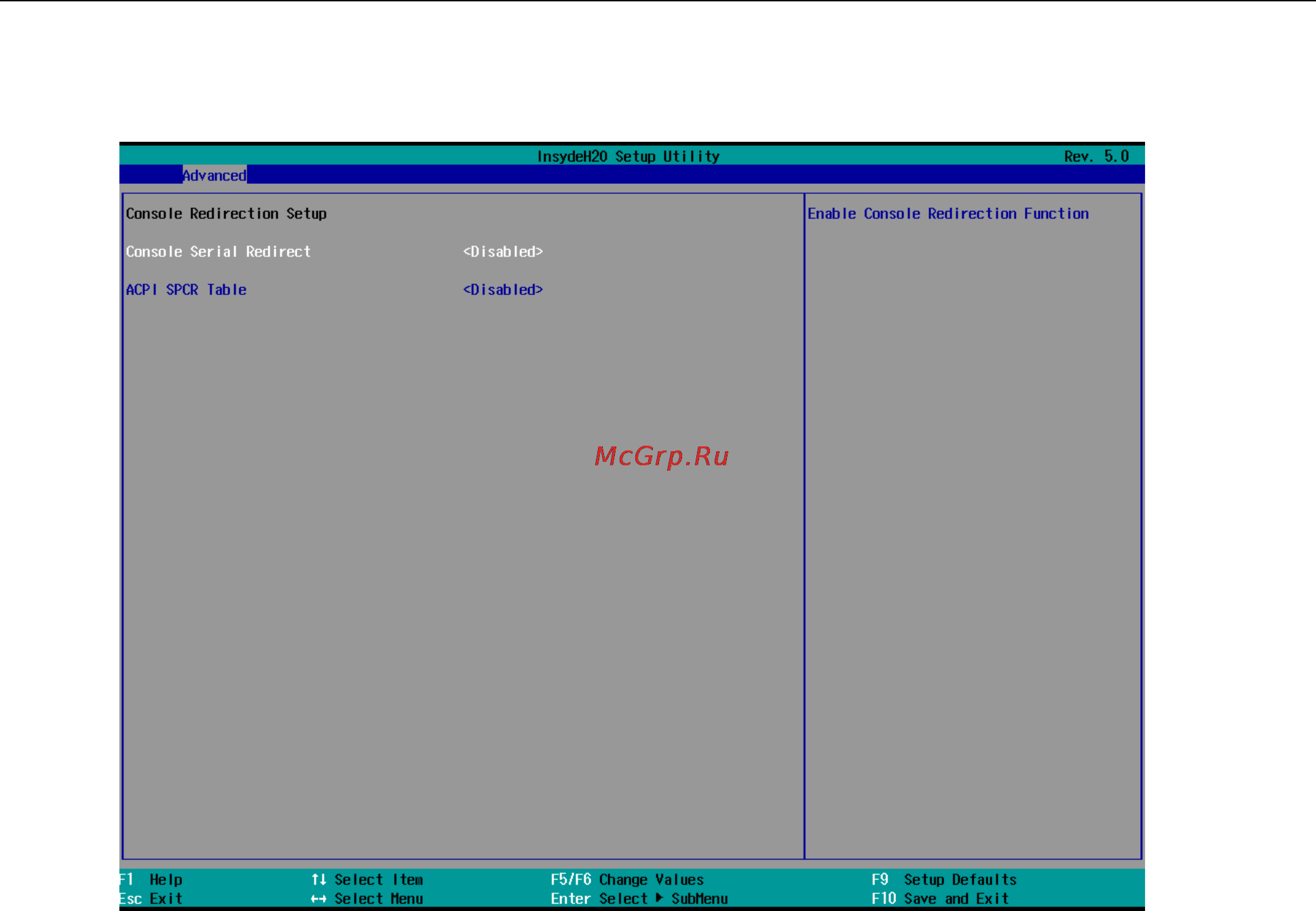

Console Redirection
Console Serial Redirect
When the Console Redirection Function is enabled, the console information will be output to both the HDMI
monitor and through the serial port.
Options: Disabled (default), Enabled
ACPI SPCR Table
This table is used to indicate whether a serial port or a non-legacy UART (Universal Asynchronous
Receiver/Transmitter) interface is available for use with Microsoft Windows Emergency Management Services
(EMS).
Options: Disabled (default), Enabled
