V2201 Series Hardware BIOS Setup
4-10
Hardware Monitor

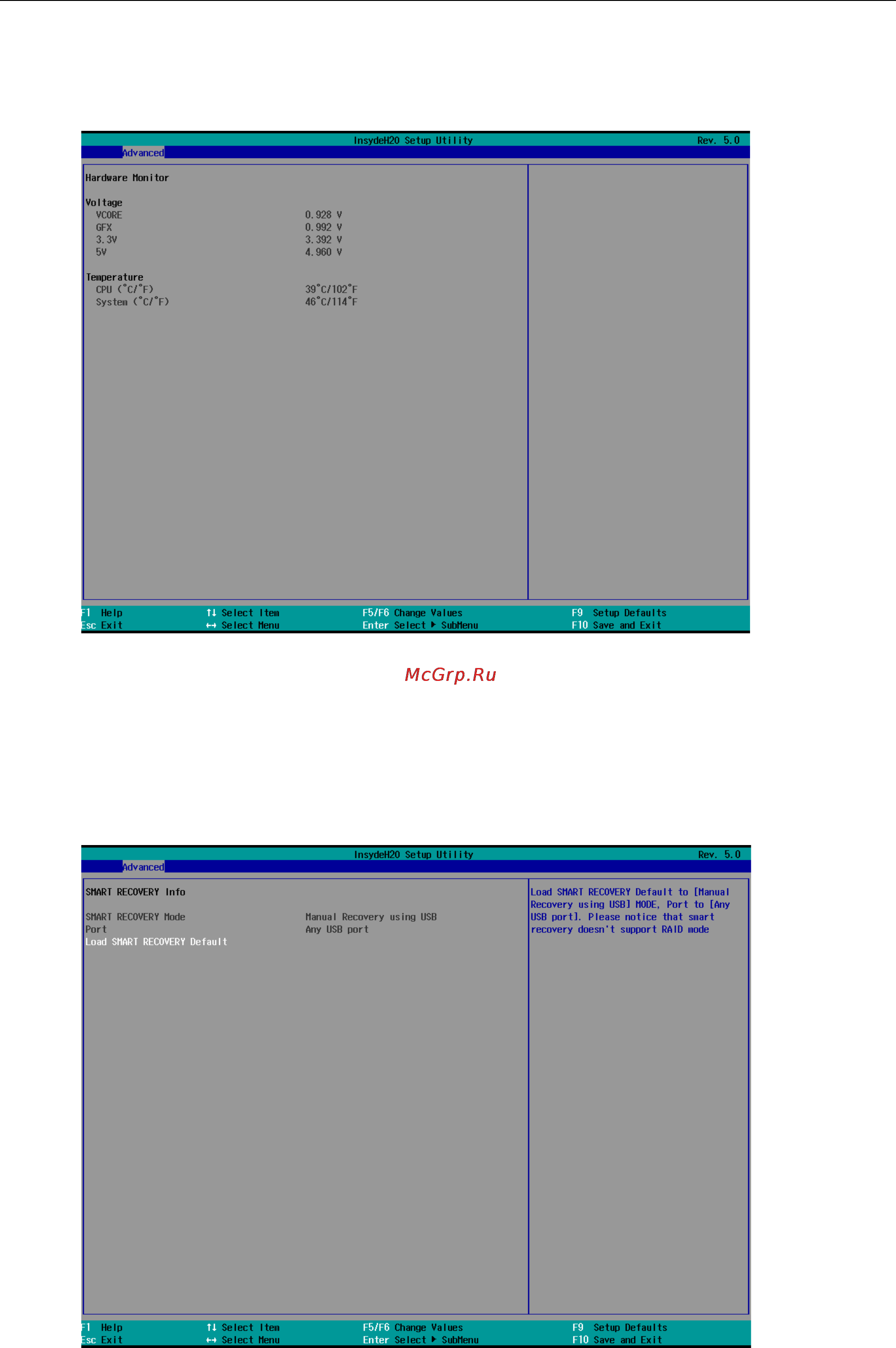

This screen allows you to view voltage levels, system temperature, and CPU temperature.
Note that the voltage values vary depending on the model. The temperature readings shown on the screen are
within ±5% of the actual readings. However, the temperature readings are only valid when the ambient
temperature is above 0°C.
SMART RECOVERY Info
This screen allows you to view Smart Recovery information.
