V2201 Series Windows Software Configuring the Serial Interface
3-2
Overview
The V2201 supports the following serial modes: RS-232, RS-485-2-wire and RS-422/485-4-wire. These
modes can be configured on COM1 and COM2.
Configuring the Serial Interface Mode
Complete the following steps to configure the serial interface mode:

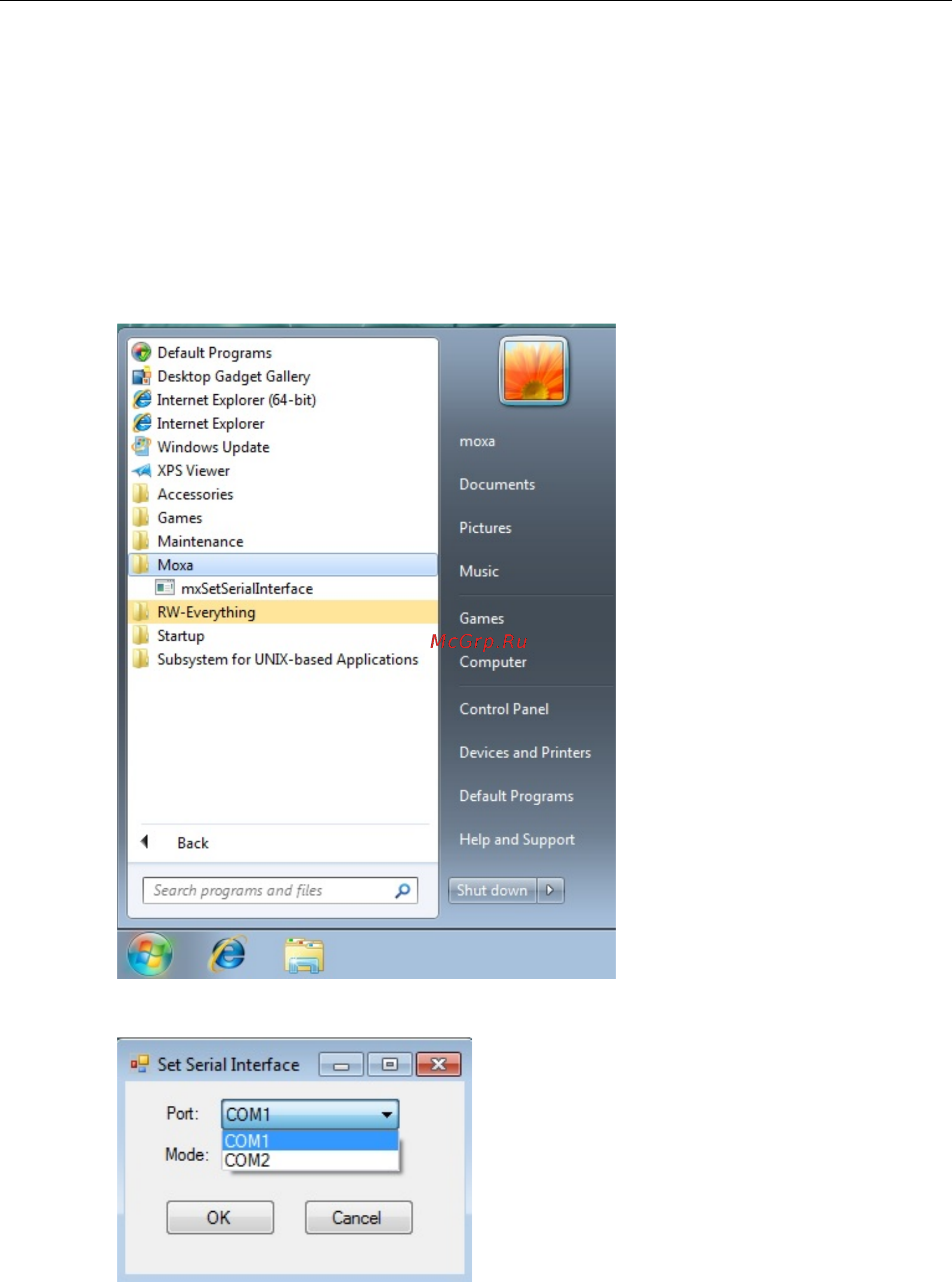

1. From the Start menu, Click All Programs
Moxa
mxSetSerialInterface.
2. Select the port you would like to configure from the Port drop-down box
